Specification:
Certification: CE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Working voltage: +5V single power supply;
Operating current: 90mA (low power consumption)
Working frequency: 0.01-4G;
Gain: 37dB@1GHz (see test curve)
P1dB output power: 100mW (20dBm)
Noise figure: 0.6dB;
Input and output interface: SMA (external screw inner hole)
Shell material: CNC
Product size: about 53.00x31.00x14.00mm
Product size: 2.09x1.22x0.55inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

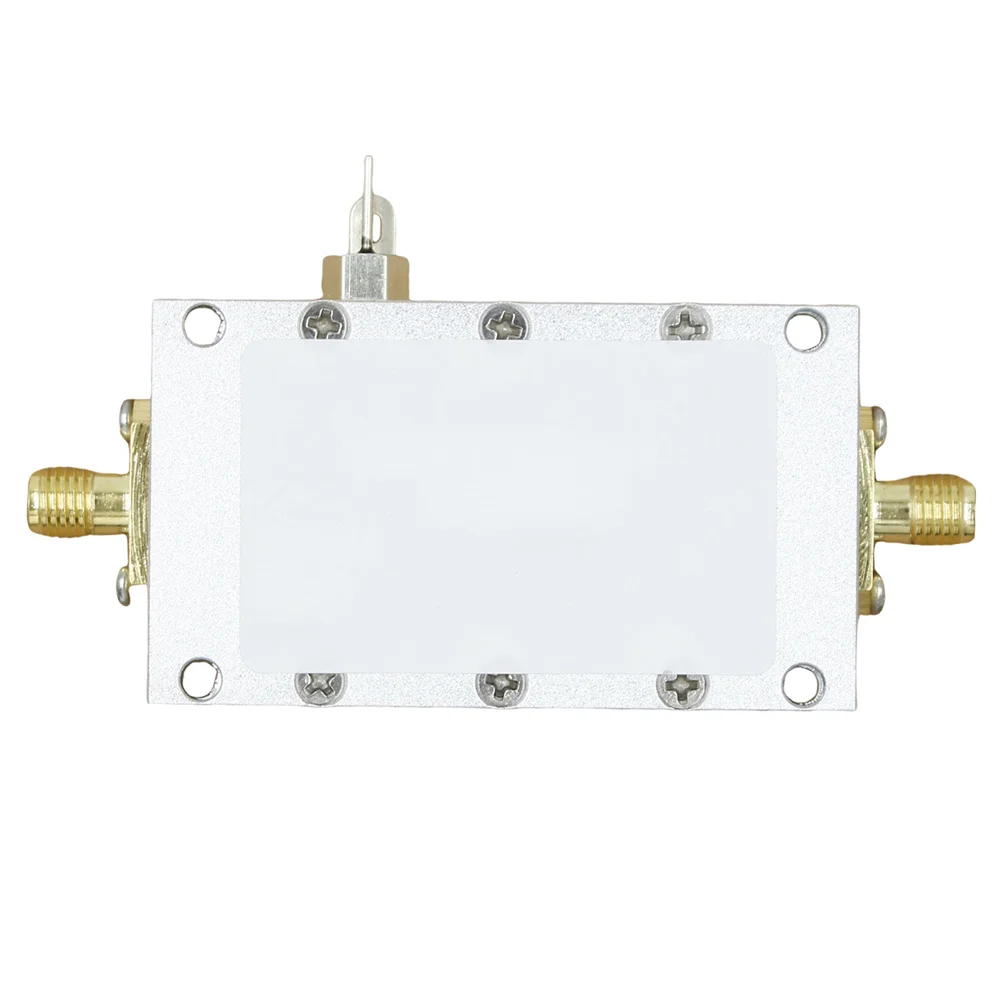

Package Content:1 x Broadband RF Power Amplifier
