1.8-30MHz Shortwave Common Mode Filter Ferrite Cores HF Common Mode Choke Balun 150W PEP EM43 Toroid Core for Shortwave Communication Antenna Grounding
Features:
1.Industrial Interference Resistance: Engineered for superior signal integrity, this product offers industrial-grade suppression for magnetic ring applications, specifically designed for the 1.8-30MHz HF range and ensuring optimal performance in demanding radio operations.
2.Effective EMI Elimination: Enjoy pure communication during fieldwork or contests with reliable shortwave common mode filter action, minimizing electromagnetic interference and protecting your equipment for seamless and uninterrupted connectivity.
3.Dual-Spec Design: Built with imported ferrite cores, including em43 toroid core options for large and small sizes, this component provides outstanding material reliability for maximum longevity under tough usage conditions.
4.High Power Heat Endurance: The rf choke filter is engineered for high temperature and saturation resistance, featuring a large 45mm ohm design that expands heat dissipation by 40% and supports up to 150W PEP continuous power.
5.Plug-and-Play Full Compatibility: Easily connect with integrated m-plug (PL-259) to m-socket (SO-239) adapters, making installation of the hf common mode choke balun quick and tool-free-ready for antenna grounding, RF testing, and emergency communications in seconds.
Specification:
Origin: Mainland China
Product Dimensions: 155.00x101.00x39.00mm
Product Dimensions: 6.1x3.98x1.54inch
Model: EM43
Frequency Range: 1.8MHz~30MHz (Full HF Band Coverage)
Cigarette Ring Size: EM43: Diameter 45mm
Interface Type: M Male (PL-259)-M Female (SO-239)
Core Functions: 1:1 Current-Type Balun, Common-Mode Current Suppression
Power Capacity: EM43: 150W PEP

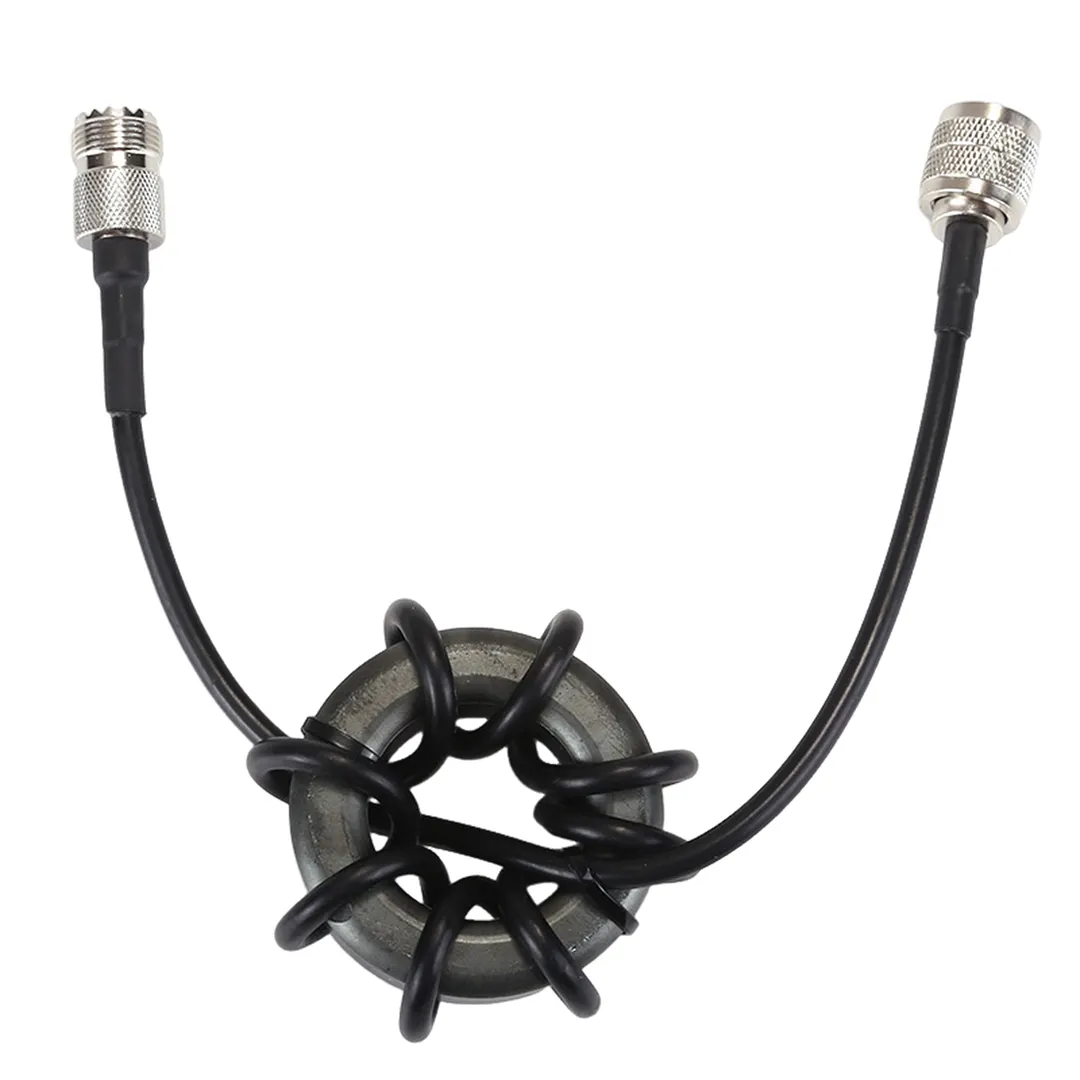

Appearance Versions: Option A is a single large ferrite ring winding, Option B is a combination of two small ferrite rings winding; both have the same effect.
Color: Black
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
Package Content:1 x Magnetic Ring
