Specification:
Origin: Mainland China
Function: spot welding counting, zero-crossing detection, voltage output, power saving
Adjustment mode settings:
1. Time adjustment range: 1# pulse 1-100 (0.01s-1s), each step is accurate to 10 milliseconds (220V AC one cycle wave 20 milliseconds). Current 40%-99%, interval 0-100 (0s-0.5s), 2# pulse 0-100 (0s-1s), current 40%-99% ==== Set the 2# pulse time to zero, then only the 1# pulse is triggered.
2. Rotate the encoder knob to adjust, press the knob to enter and save, and the indicator light flashes when adjusting the parameters.
Parameters:
Voltage: AC9-12V
Model: 100A
Material: PC
Product size: about 90.00x60.00x20.00mm/3.54x2.36x0.79inch
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.

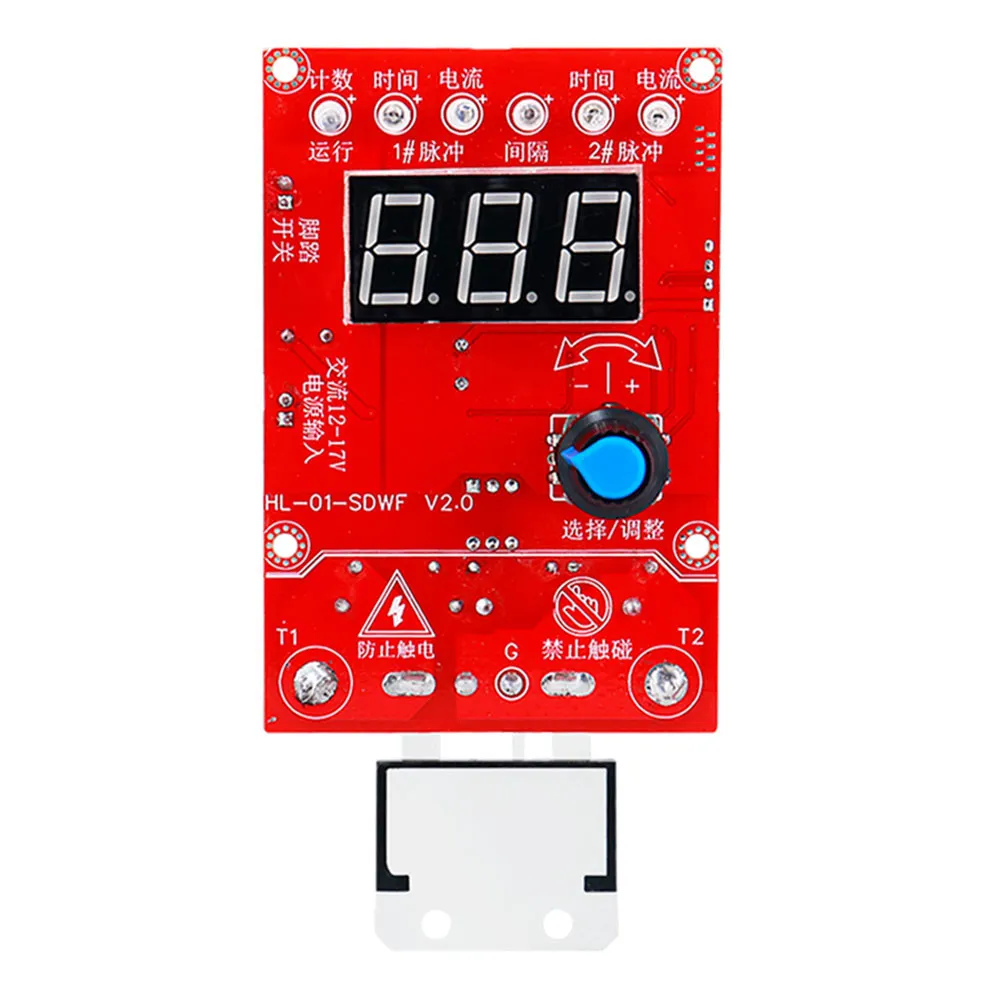

Package Content:1 x Spot Welding Control Board
