Specification:
Origin: Mainland China
DIY Supplies: ELECTRICAL
Battery capacity: 600mah
Shell material: ABS
Product size: about 49.00x45.00x19.00mm
Product size: 1.93x1.77x0.75inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x Low Noise Amplifier

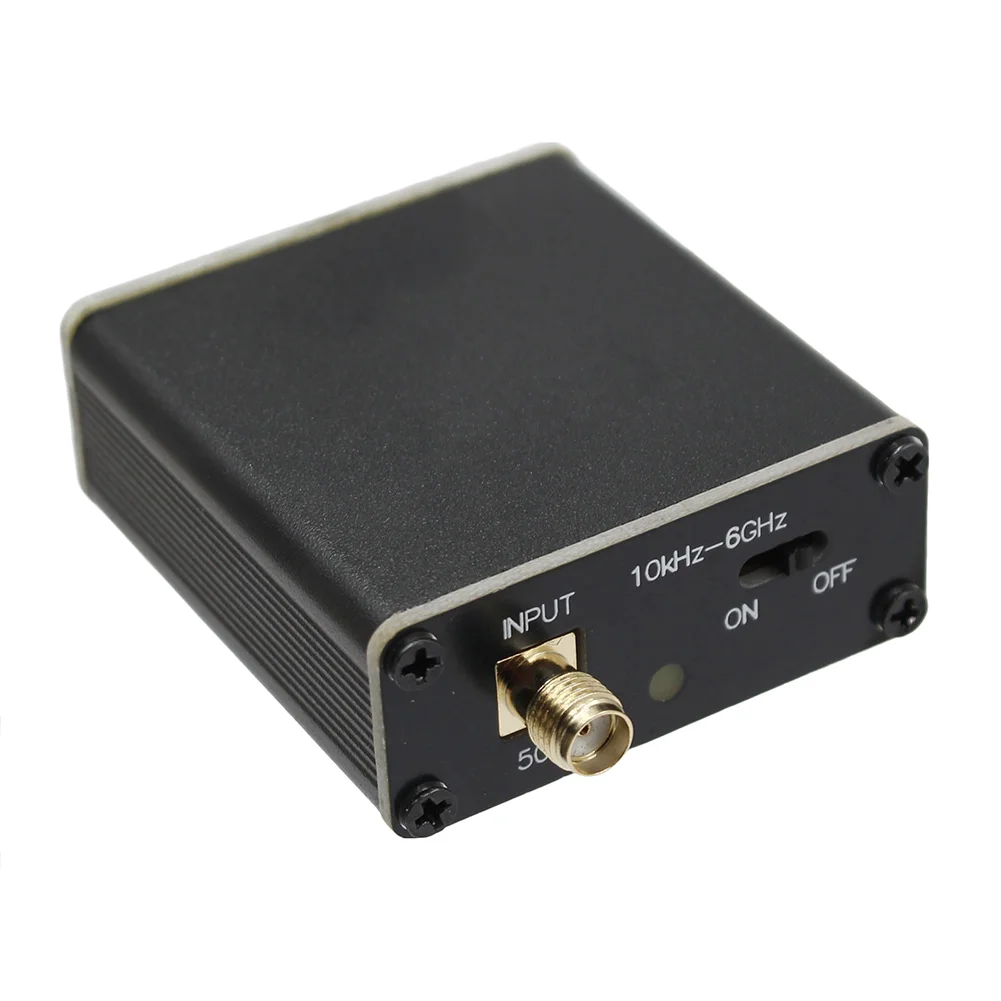

Selling point content10K-6GHz Full Band Low Noise Amplifier LNA Module 20dB High Gain Power Preamplifier with SMA Female Connector Low Noise Gain Block Amplifier RF Amplifier Module for RF Software Defined Radio (SDR)
Feature:
1. High Performance : The low noise amplifier boasts exceptional linearity and ultra-low noise capabilities. It is designed to enhance signal quality with minimal distortion, making it ideal for sensitive communication and testing applications.
2. Long Battery Life : Equipped with a built-in 600mAh large capacity battery, the power preamplifier operates efficiently with a power supply of 5V 70mA. This feature ensures extended use without the need for frequent recharging, perfect for field operations or remote projects.
3. Wide Frequency Range : The LNA module operates across a broad frequency range from 10KHz to 6GHz. It features an ultra-low noise figure of 0.4 dB NF at 1.95 GHz and a high gain of 20 dB at the same frequency, ensuring superior performance in a variety of RF applications.
4. Robust Design : The low noise gain block amplifier is not only high in performance with a +35 dBm output IP3 and a high input power resilience of +22 dBm continuous wave, but it also boasts a stable 50-ohm input/output, making it a reliable choice for both amateur and professional users.
5. Easy Connectivity : Featuring an SMA female connector, the RF amplifier module ensures easy and secure connections, allowing quick integration into existing setups without the need for additional adapters or complex wiring, thus simplifying the installation process.
