Specification:
Origin: Mainland China
DIY Supplies: ELECTRICAL
Working voltage: +5V single power supply;
Power interface: Type-c interface;
Working current: 10dB-50mA; 20dB-75mA; 30dB-80mA; 40dB-80mA
Working frequency: 10M-6GHz;
Gain: (see measured curve);
P1dB output power: +10dBm@2GHz; +12dBm@2GHz; +18dBm@2GHz; +18dBm@2GHz;
Noise coefficient: 4.5dB;
Input and output interface: SMA (external screw inner hole)
Shell material: CNC aluminum alloy
Product size: about 65.00x30.00x12.00mm
Product size: 2.56x1.18x0.47inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x RF Amplifier
1 x Type-C Charging Cable

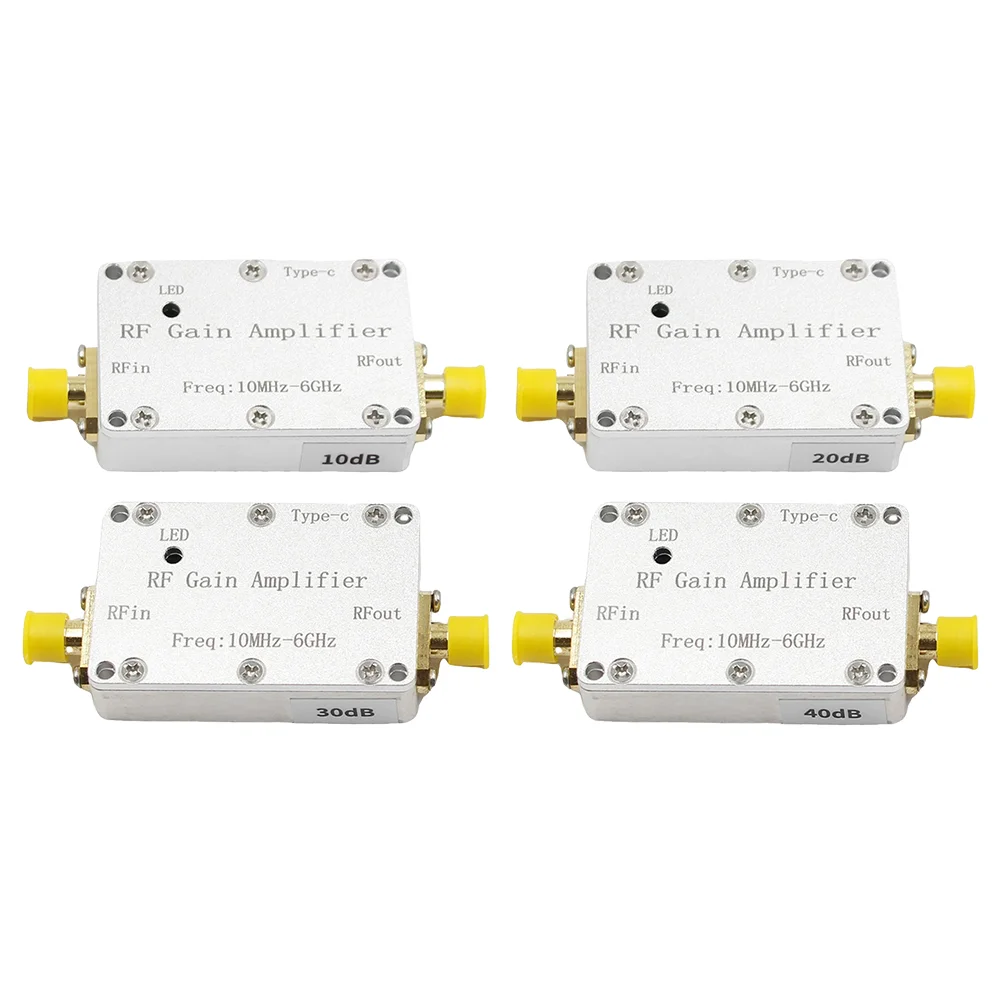

Selling point content10MHZ-6GHz LNA High Flatness Receiver Amplifier 10dB 20dB 30dB 40dB Gain RF Drive High Flatness Amplifier with SMA RF Drives Receiver Drone Image Transmission Hackrf One GPS Radio FM
Feature:
1. Versatile Signal Amplification: This high flatness receiver amplifier is designed for signal gain boosting and small signal amplification in various radio transmitters and receivers. The high flatness amplifier ensures consistent performance across multiple applications.
2. Wide Frequency Range: Covering a broad frequency range of 10M-6GHz, this signal receiver is ideal for typical application points including 433M, 1.2G, 1.5G, 2.4G, and 5.8G. The rf amplifier provides reliable performance across a wide spectrum.
3. High Flatness Gain Characteristics: Featuring high flatness gain characteristics of 10dB, 20dB, 30dB, and 40dB, this low noise amplifier delivers consistent and stable signal amplification. The high flatness receiver amplifier is perfect for maintaining signal integrity.
4. Transmitter and Receiver Applications: This high flatness amplifier is suitable for boosting signal gain in transmitters and enhancing receiver systems. The signal receiver module ensures improved performance in both transmitting and receiving applications.
5. Convenient Type-C Interface: The rf amplifier module uses a Type-C interface with 5V power supply and includes a power operation indicator light. This low noise amplifier is easy to integrate and monitor, making it a practical choice for various electronic setups.
