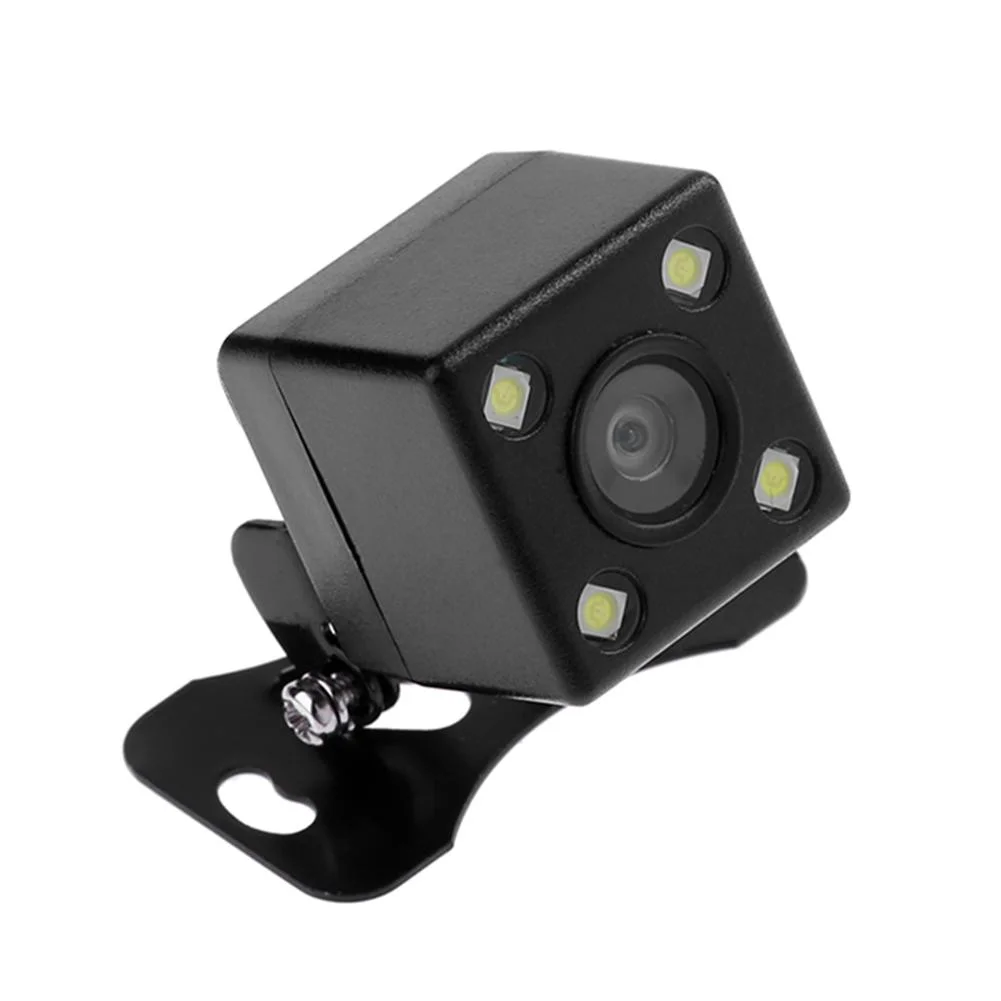

Specification:
Sensor: 1/4\" color CCD
TV system: NTSC default
Minimum illumination <0.5
AGC: automatic
BLC: automatic
White balance: automatic
Video color: colorful
Waterproof rating: IP69
Effective pixels: 720 X 540
Resolution: 480TV lines
Electronic shutter: 1/60 (NTSC) - 1/10000s
Lens angle: 170°
Working temperature: -20℃~ +80℃, RH95%
Storage temperature: -30℃~ +80℃
Working power supply (DCV): 12V
Current consumption: 90mA max
Notes:
1. As long as the car stereo\'s installation size and machine size match, it can be installed and used.
2. When installing the machine, be sure to connect the wire correctly. If the installation does not power on the machine, please connect the red wire and yellow wire to the 12V power supply positive pole, the black wire to the power supply negative pole, try to see if the machine can normally power on. If it can be powered on normally, then it may be due to the problem of wiring, you can ask for our help, so that you can use the product better.
Package Content:1 x Car Stereo MP5 Player
2 x Buttcock Lines
1 x GPS Module
1 x USB Cable
1 x Car DVR Camera (Optional)
1 x Reversing Camera (Optional)
1 x User Manual
