Specification:
Certification: NONE
Origin: Mainland China
Type: Invisible
Model Name: Car Parking Sensor Kit
Type(optional): Black/White/Red
Main body size: 90 x 60 x 22mm/3.5 x 2.4 x 0.9inch
Detection distance: 0.3-2.5m
Alarm Distance: 0.3-1.5m
Alarm sound: >80dB at 10cm/3.9inch
Power supply voltage: 10.5V-15V (nominal 12V)
Current consumption: 200mA max
Operating temperature: 20°C-65°C
Storage temperature: 35°C-85°C
Diameter length: 22mm/0.9inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

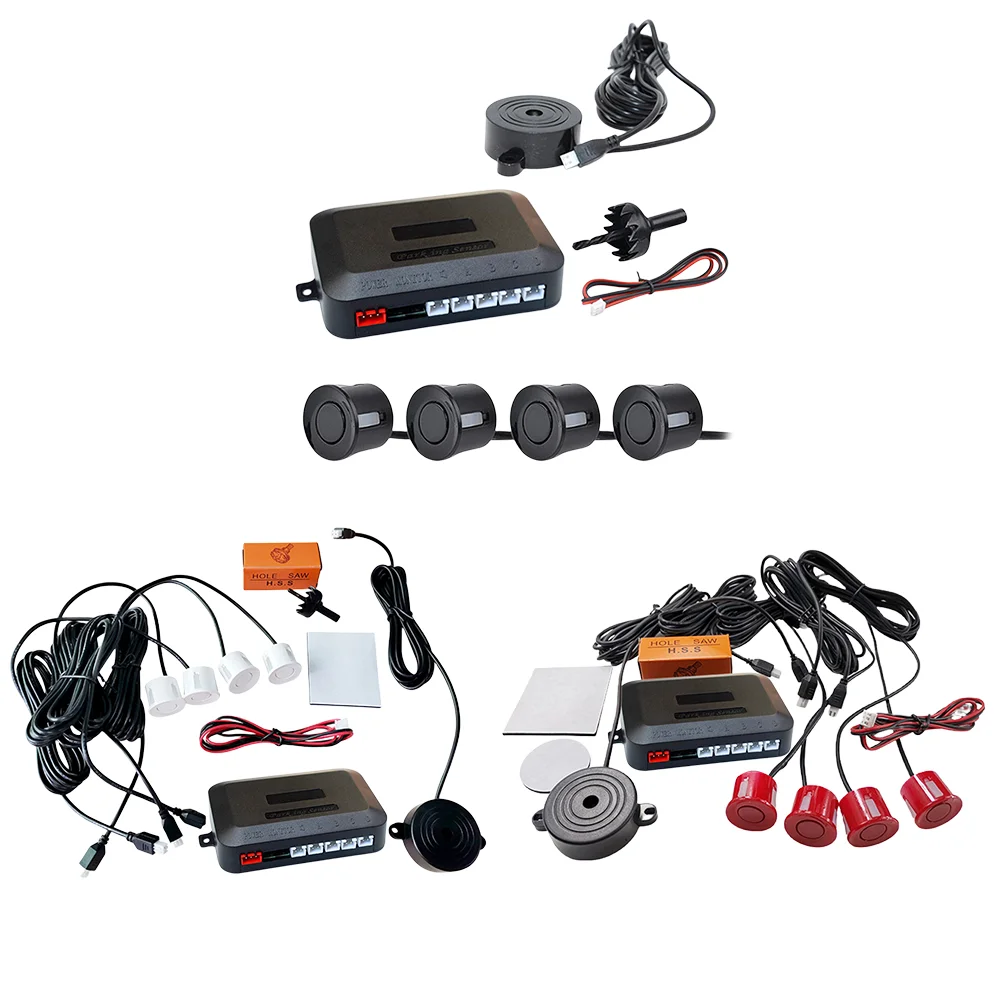

Package Content:1 x Buzzer
1 x Host
1 x Probe
1 x Drill Hole
1 x Power Cord
1 x Instruction Manual
Selling point content
12V Car Parking Sensor Kit 4 Probe Parking Detector Sound Alert Reversing Radar Pure Buzzer No Display Indicator System
Feature:
1. Reliable Obstacle Detection: This car parking sensor kit is designed to provide drivers with a reliable warning system for obstacles during parking. It utilizes electromagnetic ultrasonic sensors that accurately measure the distance to nearby objects. The sensors are strategically placed in the front and/or rear bumpers, minimizing their visibility on the vehicle.
2. Advanced Technology: Equipped with ultrasonic proximity detectors, this backup radar emits sound pulses, which are then measured by the control unit to calculate the distance of objects. The system alerts the driver through audible tones, with higher frequencies indicating closer distances and continuous tones indicating the minimum pre-defined distance.
3. Convenient Gear Activation: The reverse sensors may be activated when the reverse gear is selected, providing enhanced safety during parking maneuvers. Once any other gear is engaged, the rear sensors will be deactivated automatically. This ensures that the system operates precisely when needed, without interference during regular driving.
4. Limitations: It's important to note that the ultrasonic system relies on sound wave reflections and may not detect flat or small objects that cannot reflect sound, such as narrow poles or longitudinal objects directly facing the vehicle or object being detected. Objects with flat surfaces angled away from the vertical direction may deflect the returning sound waves away from the sensors, hindering detection. Additionally, objects with highly absorbent, soft materials like wool or moss may have weaker detection effects.
5. Enhanced Safety: With its reliable obstacle detection capabilities, this parking detector provides an added layer of safety for drivers while maneuvering vehicles in tight spaces. It helps prevent accidental collisions, reduces the risk of damage to the vehicle and surrounding objects, and enhances overall parking precision.
