Specification:
Origin: Mainland China
DIY Supplies: ELECTRICAL
Hign-concerned Chemical: None
Impedance: 50Ω
Frequency range: DC-160MHz
Maximum transmit power: 100W
RF sensing threshold:
Open time <20ms/Release time: <190ms
Insertion loss: less than 0.3dB at 144MHz (typical value is 0.2dB)
RX isolation: >38dB at 144MHz (typical value is 40dB)
Power supply: 12V 2A
Material: The shell is made of high-quality aluminum alloy
Product size: about 125.00x112.00x51.00mm
Product size: 4.92x4.41x2.01inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

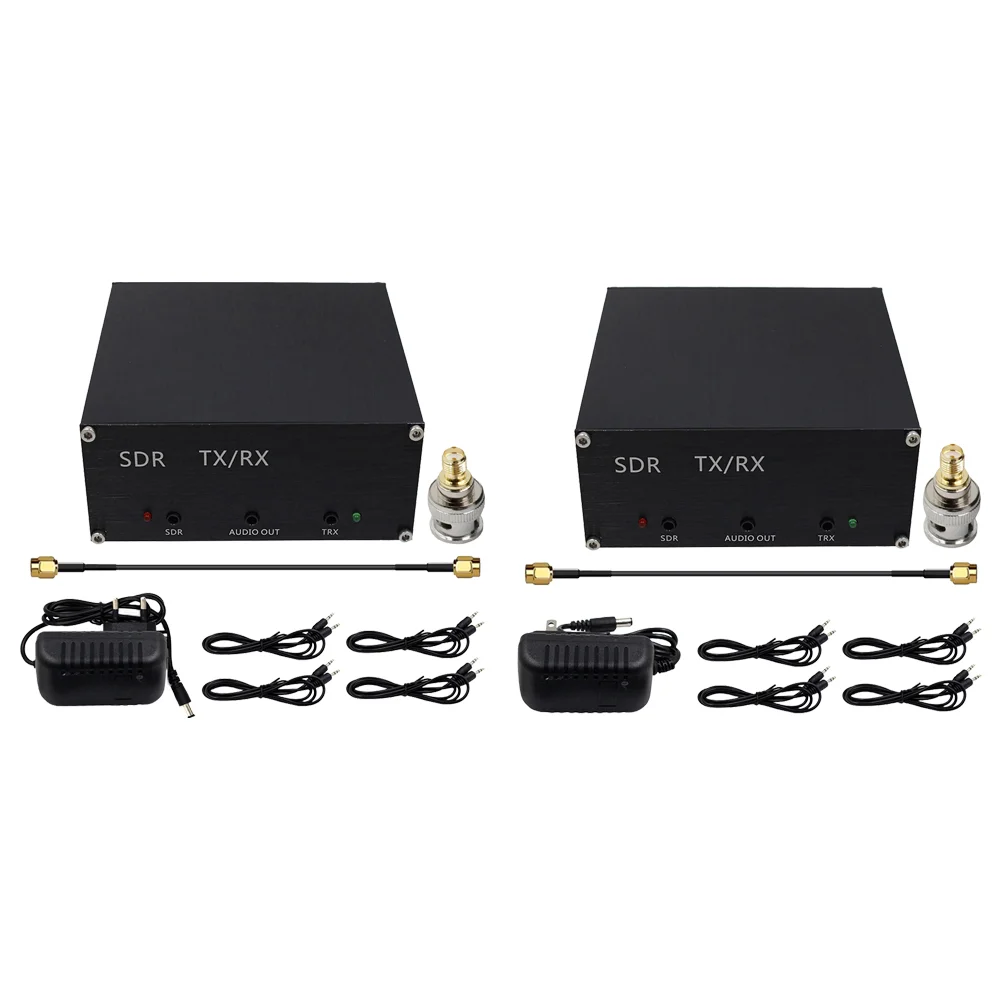

Package Content:1 X Host
4 X Headphone Cables
1 X RG174 Cable SMJ/SMAJ L=60CM
1 X Power Supply
1 X BNC to SMA-JK
