160MHz 100W SDR Transceiver Radio Switch Antenna Sharer TR Switch Box Kit with Cable Signal Device Set Accessory
Specification:
Impedance: 50 Ω
Frequency range: DC - 160MHz
Maximum transmitting power: 100W
RF induction threshold: < 10MW (1.8mhz-30mhz test)
Opening time: < 20ms / release time: < 190ms
Insertion loss: < 0.3dB @ 144mhz (typical value is 0.2db)
RX isolation: > 38dB @ 144mhz (typical 40dB)
Gas discharge protection
Power supply: 13.8V DC 200mA
Product size: 126 * 119 * 52mm/5X4.7X2in
Product weight: 430g
Package size: 140 * 130 * 65mm/5.5x5.1x2.6in
Package weight: 460g
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

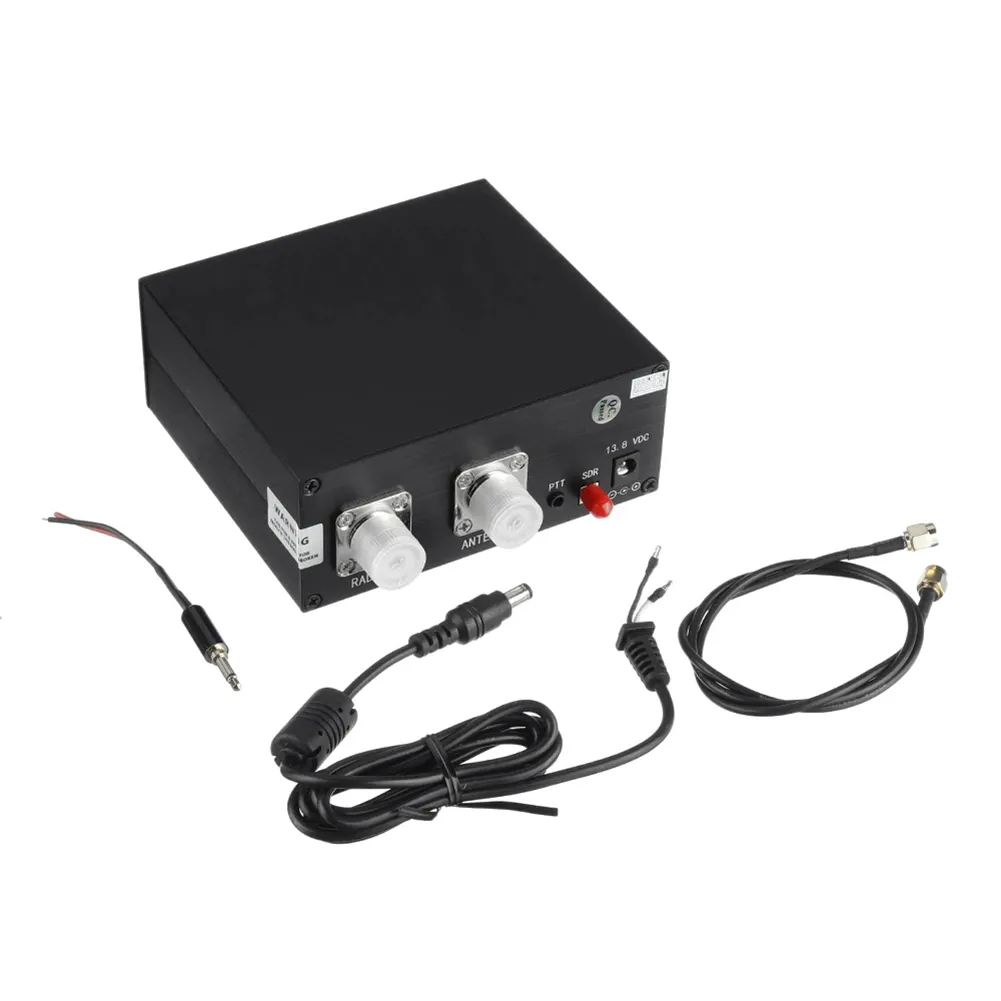

Package Content:
1 x SDR Transceiver
1 x 3.6CM SMA to SMA Connecting Line
1 x PTT Control Line
1 x Power Cord
