Specification:
Origin: Mainland China
Product size: 73.00x55.00x21.00mm
Product size: 2.87x2.17x0.83inch
Color: Black
Material: Metal
Supported audio format: PCM
Signal-to-noise ratio: 105DB
Separation (1KHZ): 94DB
Response frequency: 20Hz~20KHz -0.2db
THD+N: -90DB
Total harmonic distortion (THD): 10Hz~20KHz 0.25-0.065%
Resistance: 0.577Fs
Sampling rate: 32~192 KHz
Bit rate: 16~24 Bit
Input level: ±0.3V
Working voltage: +5V up to 6V
Maximum power consumption: 100mA
Storage temperature/humidity: -60-150℃/ 5% -90% RH (no condensation)
Working temperature/humidity: -10-70℃/ 10% - 80%RH (non-condensing)
Human body model electrostatic discharge protection: ±8kV (air seam discharge), ±4kV (contact discharge)
Interface type:
Optical fiber interface x 1
Coaxial interface x 1
Power interface x 1
RCA interface x 2
Headphone interface x 1
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.

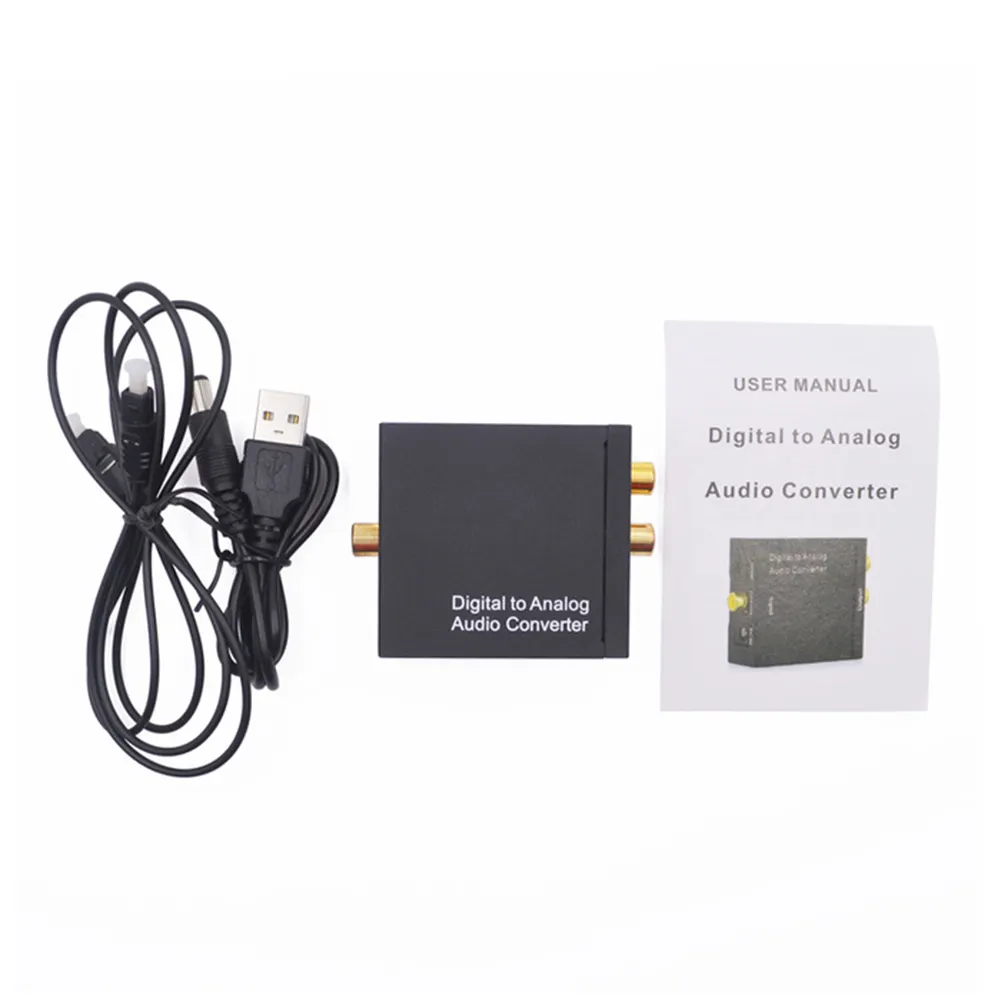

Package Content:1 X Digital to Analog Audio Converter
1 X Power Cord
1 X Instruction Manual
Selling point content192KHz Digital To Analog Audio Converter Digital Coaxial SPDIF To Analog RCA 3.5mm Jack Digital SPDIF Optical To Analog L/R RCA Converter Optical To 3.5mm Jack Adapter
Feature:
1.Digital to Analog Audio Converter: Transform your digital audio signals with precision, supporting up to 192kHz 24bit for lossless sound. Experience every detail of your music with exceptional clarity.
2.Flexible Connectivity: The digital spdif optical to analog l/r rca converter comes with coaxial and optical inputs, plus RCA and 3.5mm outputs, easily connecting to various devices for versatile audio needs.
3.Noise Reduction Technology: Advanced noise cancellation ensures clean audio by automatically muting non-audio signals, offering a pure listening experience free from distracting noise.
4.Metal Construction: The optical to 3.5mm jack adapter features a yet lightweight design that provides excellent interference resistance for stable, clear audio output.
5.Superior Technical Specs: With a high signal-to-noise ratio of 105dB and a wide frequency response (20Hz~20KHz), our optical to l/r dac decoder delivers outstanding audio performance.
