Specification:
Certification: NONE
Origin: Mainland China
Demo Board Type:for Raspberry pi 2 b

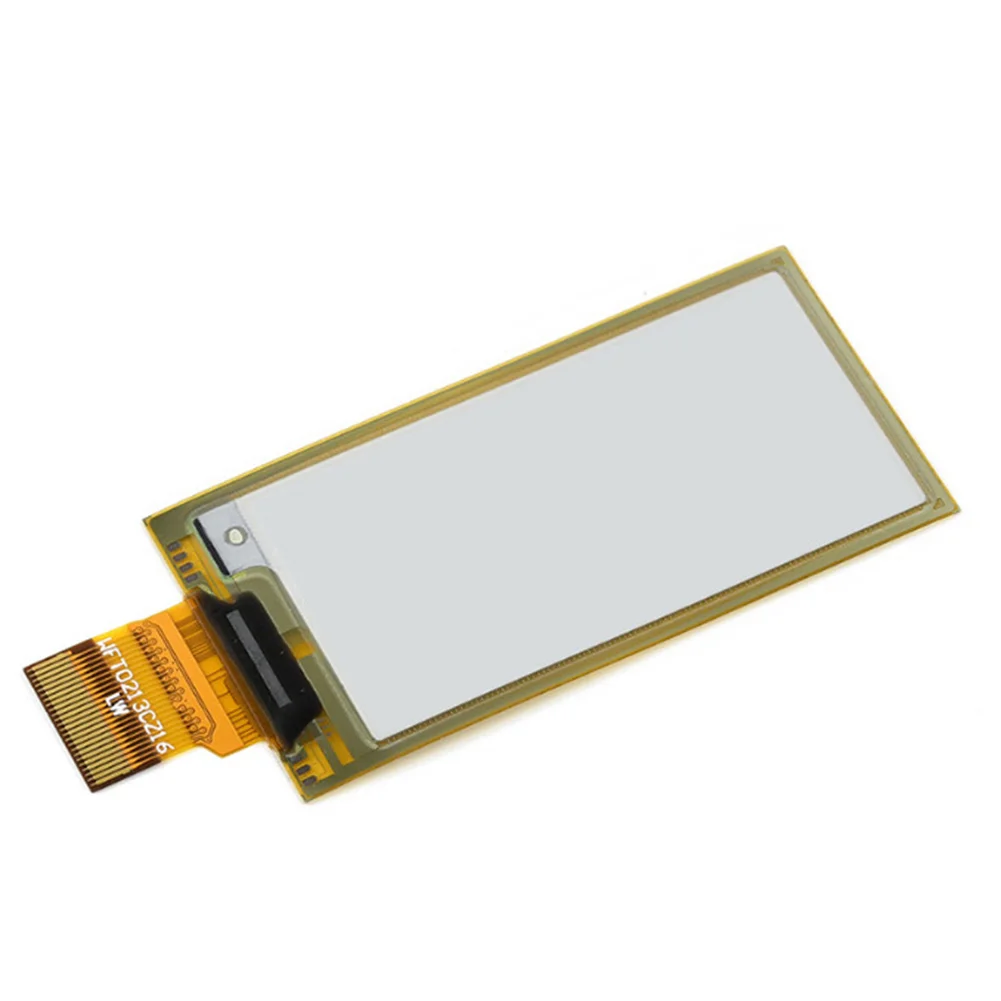

electronic paper screen
Working voltage: 3.3V
Communication interface: 3-wire SPI, 4-wire SPI
Dimensions: 59.2x29.2x0.3mm/2.33*1.15*0.01in
Display size: 48.55x23.71mm
Dot pitch: 0.229x104pixels
Display color: black, white
Gray scale: 2
Partial refresh: 0.3s
Global refresh: 2S
Refresh power: 26.4mW (typ.)
Sleep current: <0.01uA (close to 0)
Viewing angle: >170°
Flexible e-ink screen, bendable (display area only)
No need for backlight, the last screen display content can be kept for a long time when power off
Very low power consumption, basically only consumes power when refreshing
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:
1Pc *E-Ink Display
