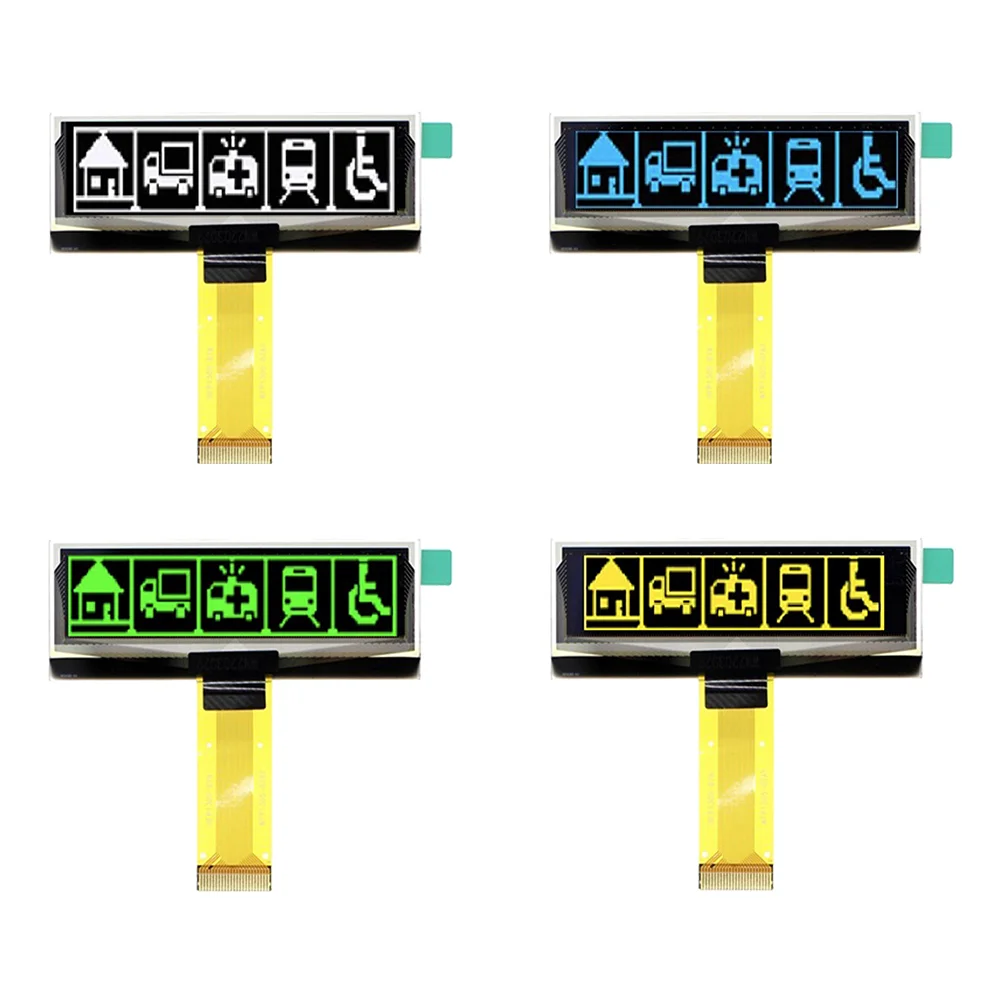

    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    10 / 21
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive
    You may also like Don't Like These？
    0% OFF

    2.23 Inch OLED LCD Display Module 128x32 OLED Display Screen SSD1305 Drive

    1225197.02

    $26.99
    Style - Blue
    Qty 5 in stock
    Specification:
    Origin: Mainland China
    Type: OLED
    is_customized: Yes
    Resolution: 128x32
    Control chip: SSD1305
    Interface type: SPI, IIC interface
    Display color: white/blue/yellow/green (single color)
    Display area: 55.02x13.10 (mm)
    Panel size: 62.00x24.00x2.00 (mm)
    Pixel size: 0.41x0.39 (mm)
    Pixel pitch: 0.43x0.41 (mm)
    Number of pins: 24pin (insert 24pin, 0.5mm pitch)
    Viewing angle: full view
    Working temperature: -40~85 degrees
    Working voltage: 3.3v
    Wiring method: 0.5mm pitch plug-in FPC
    Product size: 62.00x24.00x2.00mm
    Product size: 2.44x0.94x0.08inch

    Note:
    Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
    Please allow 1-2cm measuring deviation due to manual measurement.



    Package Content:
    1 x 2.23-Inch SSD1305 Display (Color Of Your Choice)
