Specification:
Origin: Mainland China
Accessory Type: LCD Screen
Compatible With: E Ink Display Screen Module
Operating voltage: Module version: 3.3V/5V
Bare screen version: 3.3V
Display colours: red, yellow, black, white
Communication interface: 3-wire SPI, 4-wire SPI
Grey level: 2
Size:
Module version: 69.5 x 39.5mm/2.74 x 1.56inch
Bare screen version: 68.1 x 37.9 x 0.85mm/2.7 x 1.5 x 0.03inch
Display size: 52.096 x 29.568mm/2.0 x 1.2inch
Global refresh: 12s
Refresh power consumption: <57 mW (typ.)
Dot pitch: 0.176 x 0.176mm
Sleeping current: <0.01 uA (near 0)
Resolution: 296x168 pixels
Viewing angle: >170°
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

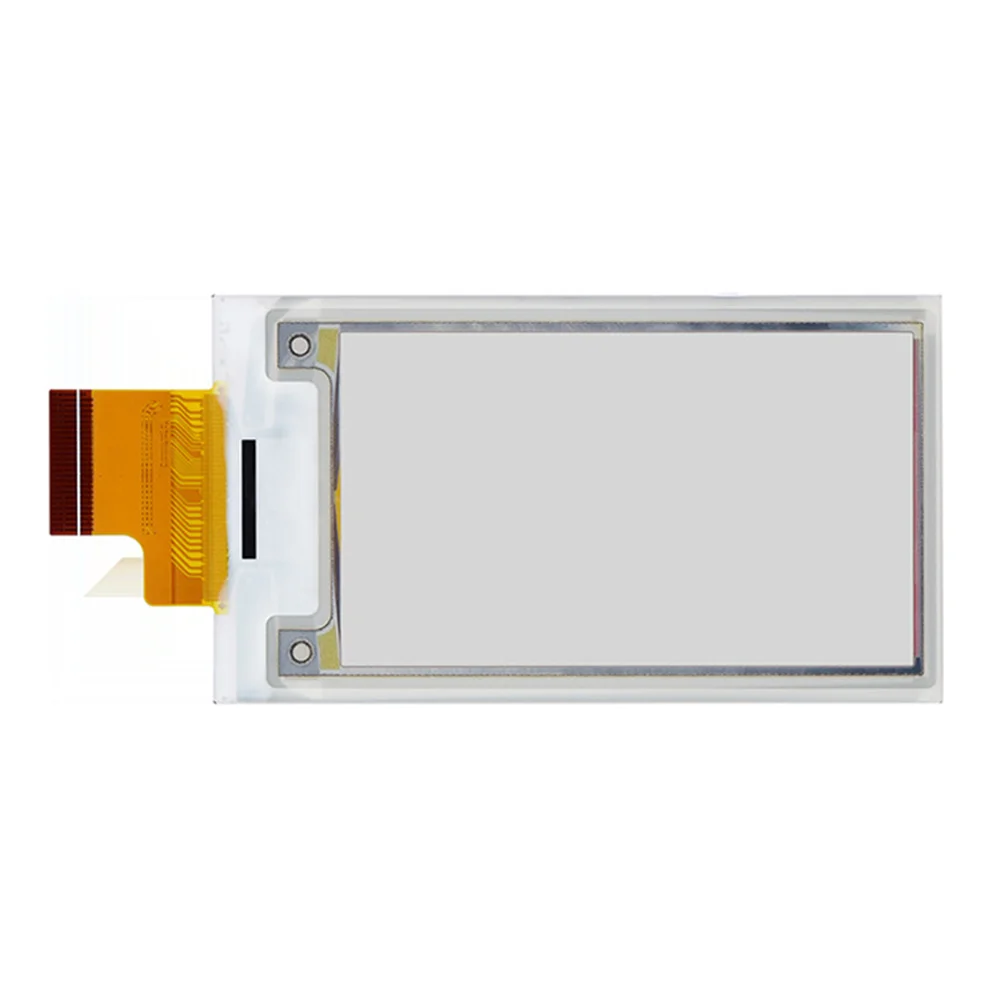

Package Content:1 x E Ink Display Screen Module
