Specification:
Origin: Mainland China
Style: 2-way
Characteristics:
BDFS Fuse (Mid-Branch Fuse) Multi-Pole Fuse Block
For main branch main fuses configured to fit up to 6 midi fuses all busbars to a single input stud.
Can be DIY modularized
Rating: midi fuse block 200A
Maximum total combined rating is 400A continuous. Temperature: -40 degrees Celsius (-40 degrees Fahrenheit) to 85 degrees Celsius (185 degrees Fahrenheit)
Torque: Installation: 22 lbs (2.5 Nm)
Fuse Module: M5, 44 in-lbs (5 Nm)
Input Module: M8, 88 in-lbs (10 Nm)
Material: Silicone rubber cover, 200 degrees Celsius maximum.
Base divided by PPS, 94V0 class, 230C maximum.
M5 stainless steel, K-shaped nut Related products: BDFS (midi fuse, 23-200A)
Product application: DC circuit protection applications in automobiles, RVs, yachts, photovoltaics, etc.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1*Car Bolt Fixed Fuse Holder
Selling point content

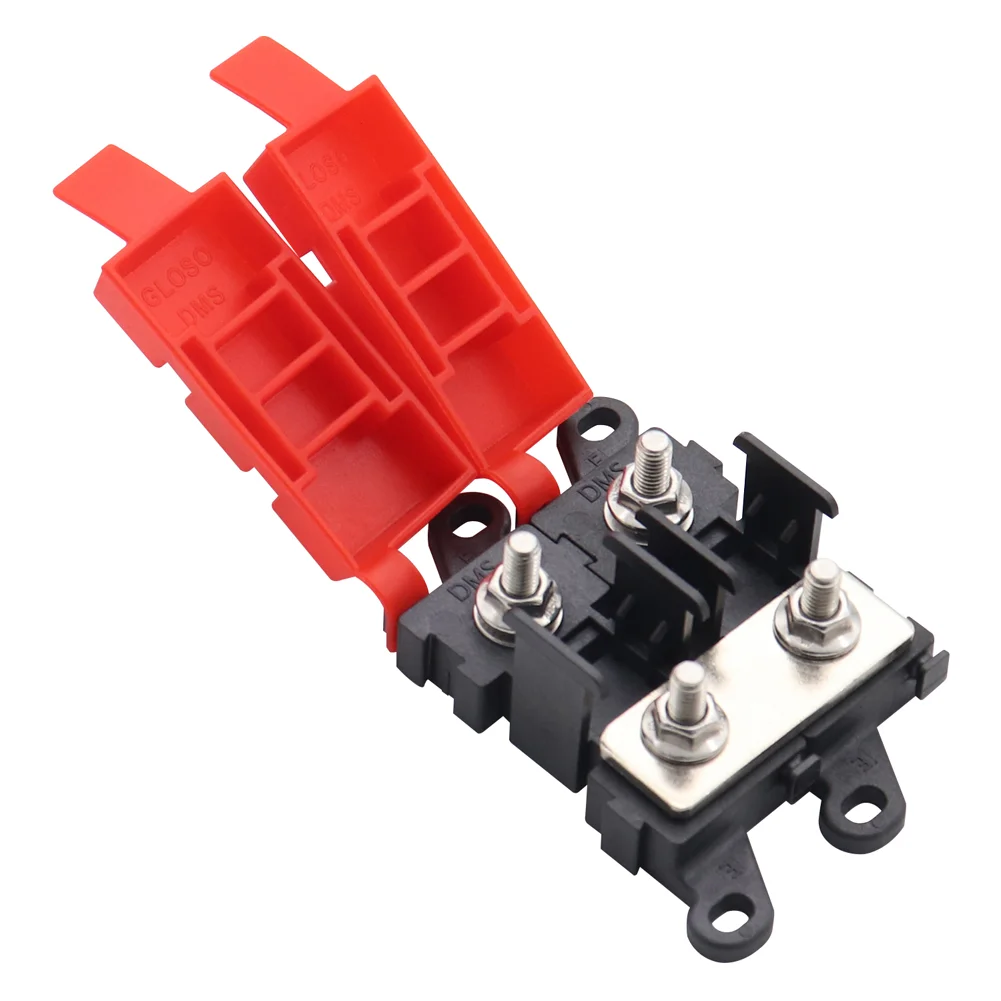

2 Way Car Bolt Fixed Fuse Holder 200A RV Circuit Modification Fork Bolt Type Fuse Box High Current MIDI Fuse Holder for RV Truck
Features:
1. Durable Construction: Crafted from premium rubber and stainless steel, this car bolt fixed fuse holder is designed to withstand wear and tear, ensuring durability and long-term use in various vehicles.
2. Quick-Release Feature: The RV circuit modification fork bolt type fuse box boasts a quick-release fuse clip connector, making it compatible with M8 terminal connections for easy maintenance and swift replacements.
3. High Performance: Engineered for marine and SUV use, this MIDI fuse holder excels in high-temperature resistance, providing stable performance and an extended lifespan under rigorous conditions.
4. Versatile Compatibility: This battery distribution terminal is universally applicable, seamlessly integrating with cars, caravans, RVs, boats, trucks, and other vehicles for optimal electrical system functionality.
5. Robust Specifications: With a temperature tolerance ranging from -40°C to 85°C and a maximum combined rating of 400Amp continuous, this fuse block allows for DIY modular customization to meet diverse electrical needs.
