Specification:
Certification: NONE
Origin: Mainland China
Theory: Voltage relay
Model Number: Limit Current Protector
Voltage: 220V
Power Source: AC

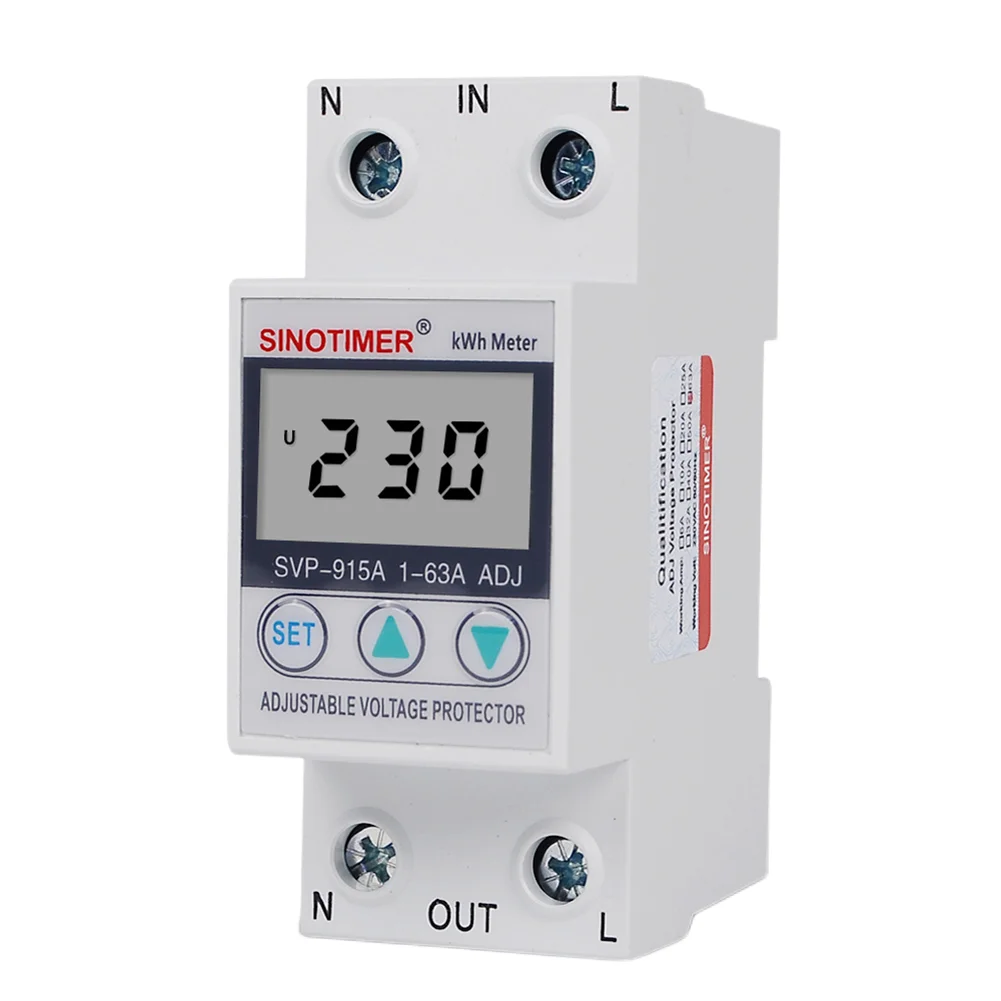

Model: SVP-915A
Power supply: 230VAC 50/60Hz
Max. Loading power: 63A/83A (optional)
Overvoltage protection value range: 221V~290 (default value: 275V)
Undervoltage protection value range: 219V -150V (default value: 170V)
Power consumption:<2W
Motor life: 4000 times
Size: 85x65x36mm/3.34x2.55x1.41inch
Description:
When the power supply is unstable. Its protection function will automatically activate. Once the voltage exceeds the limited range of the product, it will automatically cut off to protect the safety of electrical equipment and personnel. When the power supply returns to normal, the device will be powered back on within 30 seconds. The green indicator light displays when the power supply is normal. The red indicator light shows that when the power supply is overvoltage or undervoltage, the product can instantly cut off the power supply to protect the electrical equipment from damage; When the line voltage returns to normal, the protector can automatically turn on the power supply normally
Function: 1. Over voltage protection 221V~290V adjustable (default value: 275V) 2. Under voltage protection 219V~150V adjustable (default value: 245V) 3. Over current protection 1A~63A adjustable (default value: 63A) 4. Automatic recovery 2S~512S adjustable (default: 60S)
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x Limit Current Protector
Selling point content
230VAC Over/Under-Voltage Current Protector Digital Automatic Recovery Voltage Protection Relay 63A/80A Single Phase Adjustable for Home Office Appliance
Feature:
1. Multifunctional: The limit current protector not only provides undervoltage or overvoltage protection/overcurrent protection, but also measures and stabilizes output voltage/current/power consumption.
2. Adjustable: The overvoltage and undervoltage protection values and recovery values of the over and under voltage protector can be adjusted, and the action time of the overvoltage and undervoltage protection can also be adjusted.
3. Automatic Recovery: The voltage protector supports reset mode selection and factory reset function, making it more than just a home appliance protection device.
4. High Quality : The voltage output stabilizer is made of high-quality materials with strong tensile strength, durability, durability, waterproof, sun proof, wear-resistant, scratch resistant, and a long service life.
5. Satisfaction Guarantee: We strive to provide the highest standard of customer service to every customer to ensure you have a pleasant shopping experience. If you have any questions, queries or need help, please feel free to contact us.
