Specification:
Origin: Mainland China
Screen: 1.54 inches, LCD
Refresh rate: 3Hz
Voltage range: 8-150V
Withstand current: ±25A (instantaneous 50A within 3 seconds)
Accuracy: <0.2%
Interface: gold-plated XT60
Test resolution: 0.001V/0.001A
Casing material: ABS
Product size: about 60.00x38.00x13.50mm
Product size: 2.36x1.5x0.53inch
Overview:

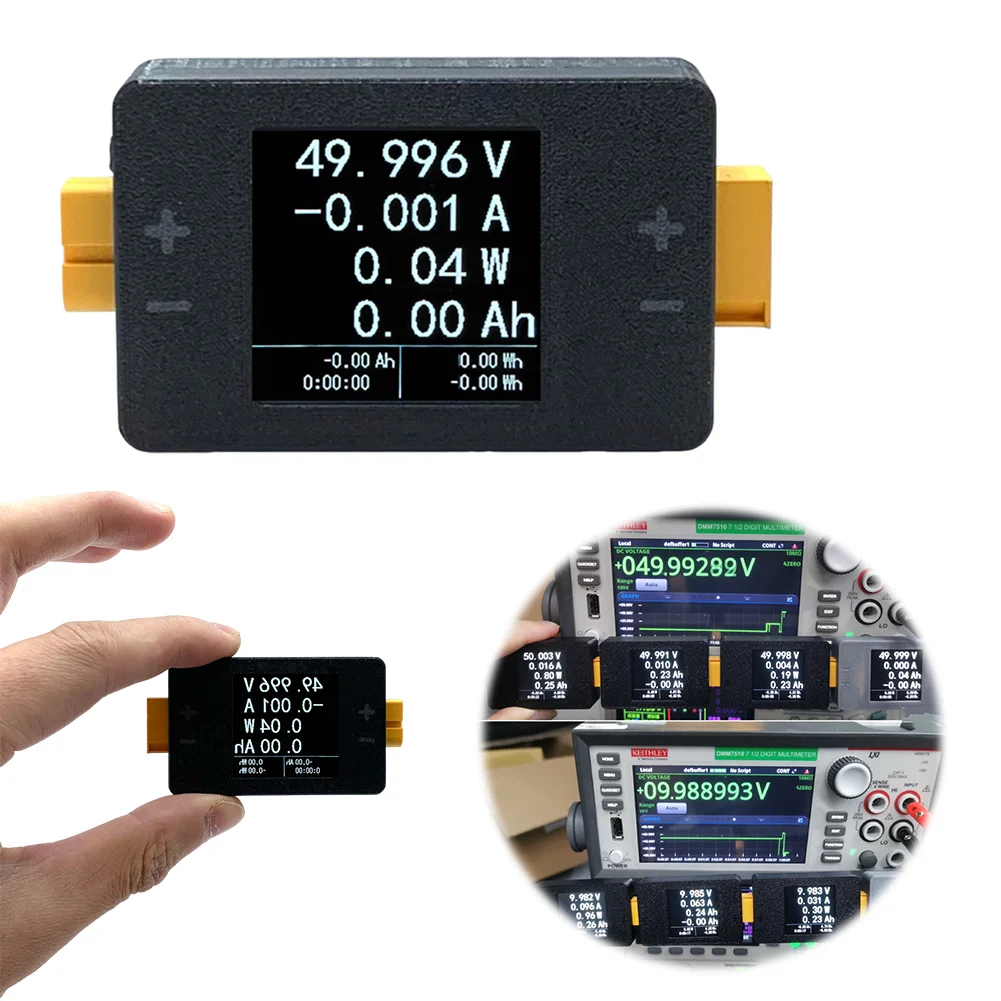

Our power meter can capture a series of basic data, including cumulative capacity in Wh (watt-hour) and Ah (ampere-hour) over a long period of time, real-time current (I), real-time power (W) and real-time voltage (U). This device is your accurate tool for measuring the charge and discharge capacity of RC lipo batteries.
Note:
1. Long-term operation above 25A may affect the accuracy of the meter.
2. The device does not work below 8V and cannot measure voltages below this threshold.
3. To maintain the accuracy of the measurement, please avoid modifying the product. Each tester is factory calibrated for optimal performance. Please use the XT60 plug we provide for safe wiring.
4. The analyzer has both charging and discharging functions, and the screen displays positive or negative current.
5. Press the reset button to switch the display interface; long press to reset, the capacity is zero.
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
Package Content:1 x Power Meter
Selling point content25A 8-150V Bidirectional DC Voltage Current Power Analyzer High Precision RC Charger Charging Discharging Tester XT60 Interface Bidirectional Ammeter LCD Display LIPO Battery Voltage Capacity Tester
Feature:
1.High Precision Measurement: This Bidirectional DC Voltage Current Power Analyzer is designed for precise measurements, capable of calibrating regular multimeters with its high accuracy capabilities.
2.Versatile RC Battery Tester: Ideal for measuring the charging and discharging capacities of RC lithium batteries, this RC Charger Charging Discharging Tester is a must-have for enthusiasts.
3.Comprehensive Data Tracking: Monitor comprehensive data including accumulated capacity in WH and AH, real-time current (I), power (W), and voltage (U) with this Watt Meter.
4.Persistent Calculation during Power Outages: The Voltmeter's AH and WH calculations continue uninterrupted even during power failures, ensuring no data loss until you reset to zero by long pressing the reset button.
5.Convenient LCD Display: Equipped with a 1.5-inch LCD screen, this Bidirectional Ammeter provides clear and easy-to-read information at a glance.
