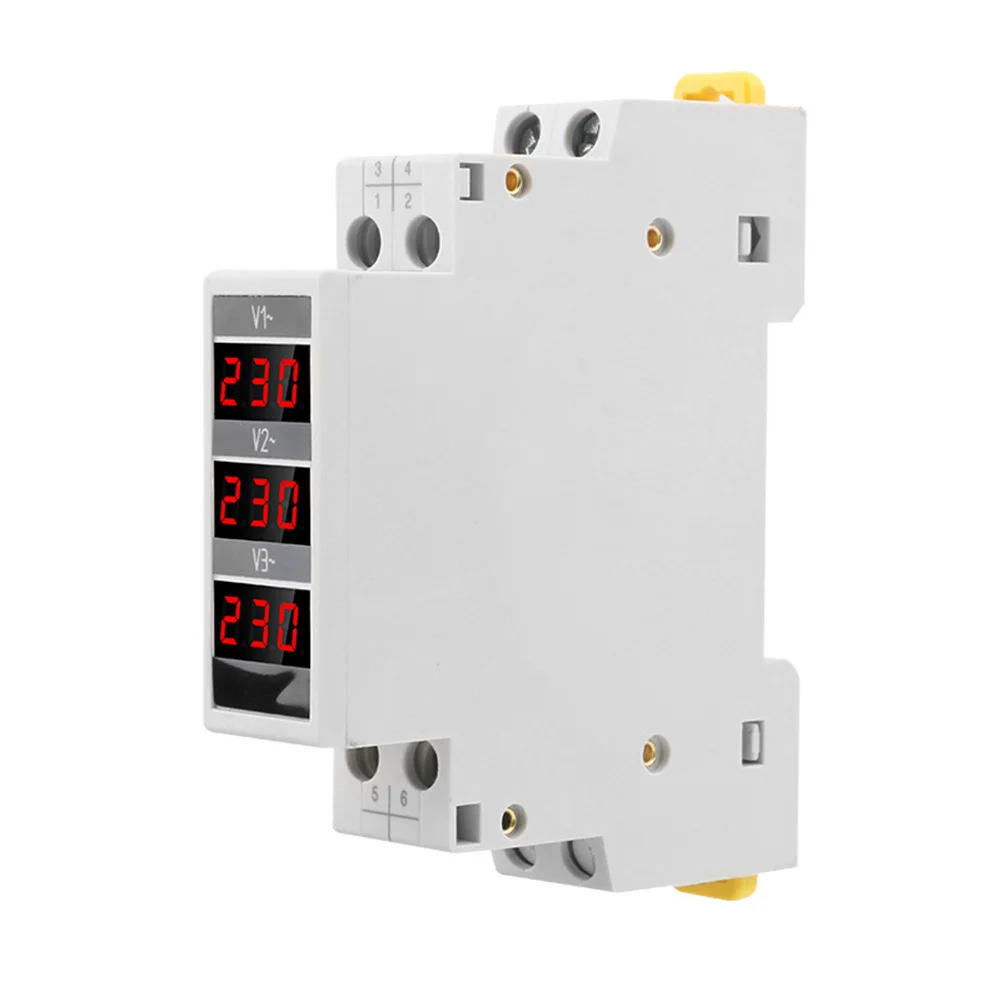

3 Phase Modular Voltage Meter AC 80-500V DIN Rail Mount Digital Voltmeter

4 sold

$20.25

Qty 1000 in stock

Product Description

SDM010 3 Phase Modular Volt Voltage Meter Gauge AC 80-500V DIN Rail Mount Digital Display Voltmeter
Specification:
Function: measure the three-phase AC voltage, and display the voltage value of each phase through the digital tube
Type: SDM010 three-phase voltmeter
Terminal: 3L+3N
Measuring voltage range: AC 80V-500V
Measurement accuracy: 1%
Measurement rate: >200MS/time
Protection class: IP 20
Electrical life: ≥15000 hours
Working conditions: temperature (daily average)≤35℃) -5℃ - +40℃
Storage temperature: -25℃ - +70℃
Relative air humidity: 1-80% (non-condensing)
Working pressure: 80-160Kpa
Mounting: DIN rail (18mm/0.71in)
Shell material: ABS
Product size: 81x66x18mm/3.19x2.6x0.71in

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:
1*Voltmeter
