Specifications:
1. Model: MiniIR_B13
2. Display: 1.3-inch TFT (240x240 resolution)
3. Temperature Measurement Capability:
Range: -40°C to 300°C
Accuracy: ±2°C (center point, at 25°C ambient temperature)
Infrared Resolution: 32x24 pixels
4. Refresh Rate: Up to 8Hz
5. Power Supply: USB Type-C (5V/1A charging)
6. Field of View (FOV): 55°x35°
7. Display Information: Center point temperature, maximum temperature, minimum temperature
8. Optimal Operating Distance: Within 2 meters
Casing Material: ABS

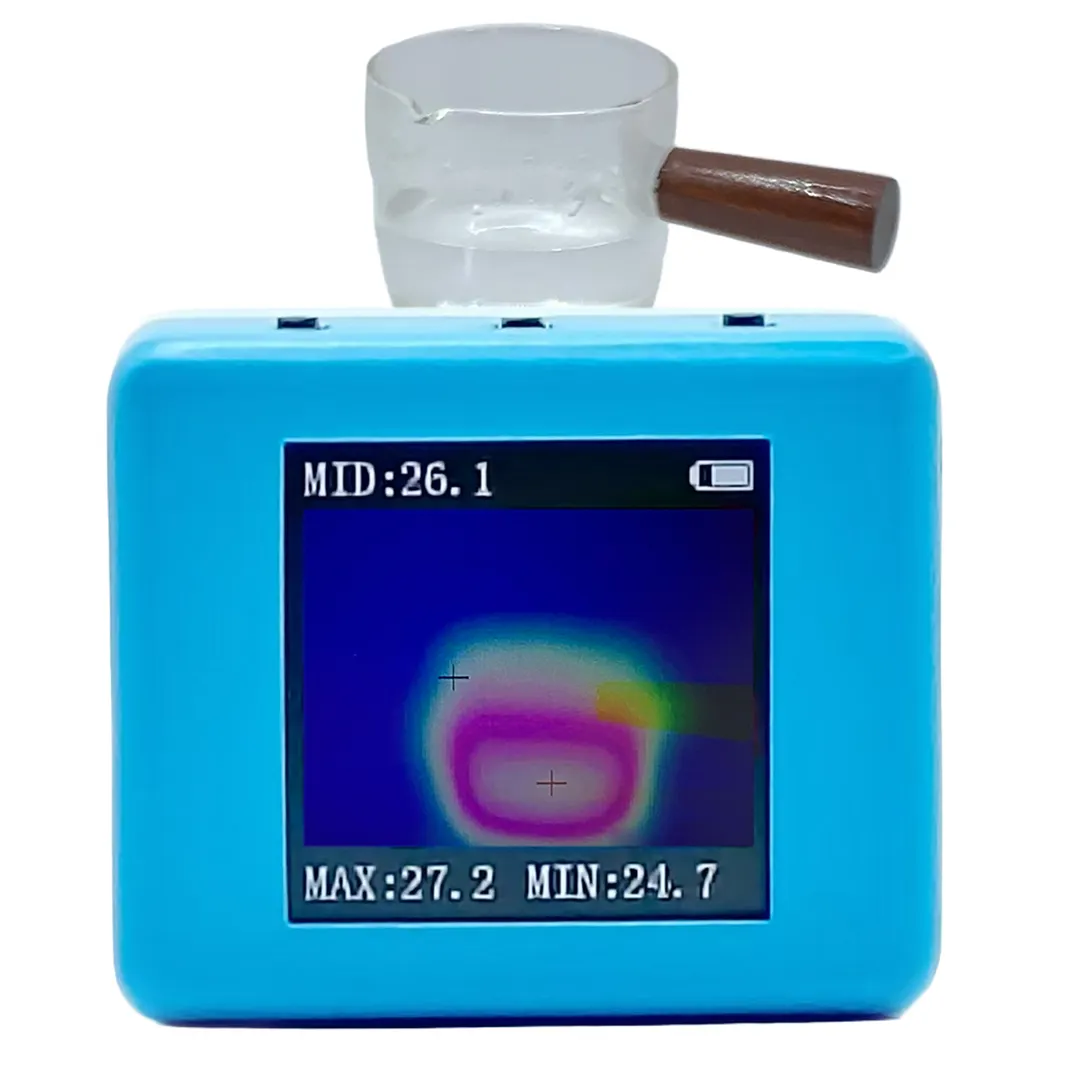

Product Description: This infrared thermal imaging device is designed as a temperature-assisting tool for use in homes and small environments, meeting basic daily needs for detecting temperature distribution and abnormal heating. It's easy to use, highly portable, and requires no specialized knowledge.
Dimensions: Approximately 39.00 x 32.00 x 17.00 mm / 1.54 x 1.26 x 0.67 inches
Origin: Mainland China
Minimum Temperature: -40°C
Maximum Temperature: 300°C ℃
Thermal imaging pixels: 32*24
Q A:
1. Can it detect animals at night? Not supported.
2. Optimal operating range? Within 2 meters (depending on target size).
3. Can it detect floor heating leaks? Limited accuracy, not recommended.
4. Can it detect heating on circuit boards? Limited accuracy, not recommended.
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
Package Content:1X IR_B13 Infrared Thermal Imaging
