Specification:
Origin: Mainland China
Oscilloscope:
Frequency measurement accuracy: +/-1%
Maximum one-button automatic waveform display sampling rate: 2MSa/s 400KHz bandwidth
Memory depth: 4Kbit
Trigger mode: automatic
Trigger edge: falling edge
Coupling mode: DC
Maximum test voltage: 24V
Vertical sensitivity: 50mV/div~10V/div
Horizontal time base range: 10us/div~200ms/div
Voltage measurement:
Measurement accuracy: +/-1.5% or +/-0.15V
Maximum input voltage: 24V
Minimum resolution: 0.1V
Resistance measurement:
Measurement range: 10Q~5M
Measurement accuracy: +/-2%
Diode measurement: Yes
Resolution: 32x24
Refresh rate: 4HZ
Field of view: 55°x35°
Battery capacity: 230mah
Product size: about 130.00x25.00x20.00mm
Product size: 5.12x0.98x0.79inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

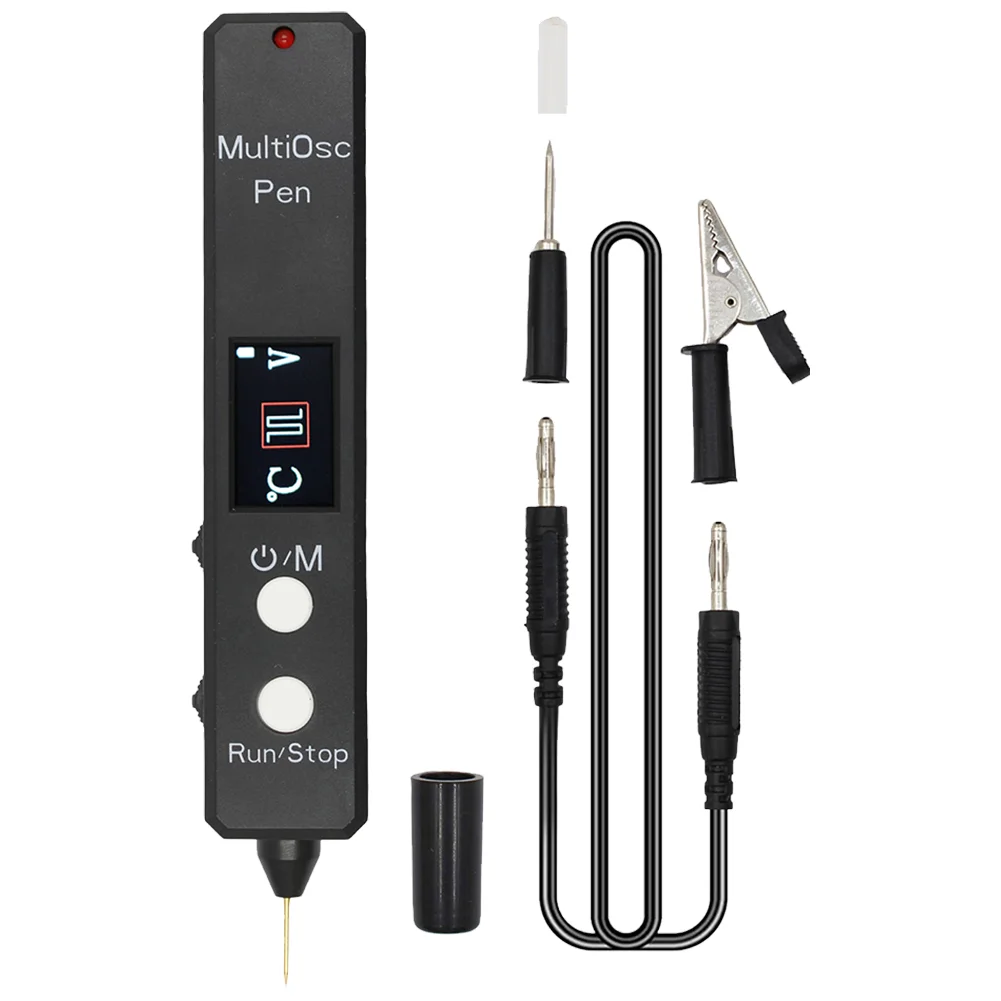

Package Content:1 x High-precision Oscilloscope Tester
