Specification:
Origin: Mainland China
Use: Lighting
Wireless Communication: RF
Frequency: 433 MHz
1. Overview: The WT-02 single circuit 24V (relay) controller adopts the main control chip programming, with low power consumption, convenient single key operation, diverse working modes and easy switching, and easy to use code operation. Adopting resistance capacitance voltage reduction method for voltage reduction, without electromagnetic interference. Can be applied in lighting control, smart home and other control scenarios
2. Product characteristics
(1) Working frequency: 433MHz
(2) Power scheme: AC220V
(3) Standby current: 9mA
(4) Good selectivity and stray radiation suppression ability
(5) Equipment temperature range: -20-70 ℃ (can work normally even in harsh environmental temperatures)
(6) Product size: 83 * 50 * 29mm (excluding shell);
(7) Product weight: 71.40g (excluding shell).
3. Operating Function Description
3.1 Learning Code Operation
Jog mode: Press and hold the learn code button on the controller, the indicator light will light up, and then press the remote control button, the indicator light will flash to successfully learn the code.
Interlock mode: Long press and hold the learn code button on the controller, the indicator light will light up, press the learn code button again, and then release it. Then press the A button on the remote control, the indicator light will flash and go out. Press the B button on the remote control again, and the indicator light will flash to successfully learn the code.
Self locking mode: Press and hold the controller's learn code button, the indicator light will light up, then press the learn code button twice and release it. Then press the remote control button, and the indicator light will flash to successfully learn the code.
Delay for 5 seconds mode: Press and hold the learn code button on the controller, the indicator light will light up, then press the learn code button three times and release it. Then press the remote control button, and the indicator light will flash to successfully learn the code.
Delay 10 seconds mode: Press and hold the controllers learn code button, the indicator light will light up, then press the learn code button four times and release it. Then press the remote control button, and the indicator light will flash to successfully learn the code.
Delayed 15 second mode: Press and hold the learn code button on the controller, the indicator light will light up, then press the learn code button five times and release it. Then press the remote control button, and the indicator light will flash to successfully learn the code.
Delayed 20 second mode: Press and hold the controllers learn code button, the indicator light will light up, then press the learn code button six times and release it. Then press the remote control button, and the indicator light will flash to successfully learn the code.
3.2 Description of working mode
Jog mode: Press the button relay to engage, release the button relay to disconnect.
Self locking mode: Press the corresponding button once, the relay will engage, and then press the button again to disconnect the relay.
Interlock mode: Press button A on the remote control once to engage the relay, press button B to disconnect the relay, and then press button A to engage the relay.
Delay mode: Press the button, the relay engages, and automatically disconnects after a specified time delay. During the delay period, the buttons cannot be controlled.
3.3 Clear Code Operation
Press and hold the learn code button for 8 seconds, and the indicator light will go from off to on and then flash 3 times before clearing the code successfully. Clear all remote control codes
4. Electrical parameters
Rated voltage: AC220V
Standby current: 9mA
Receiving frequency: 433Mhz
Working mode: jog, self-locking, interlocking, delay mode
Output method: wiring terminal
Control distance:>100 meters (measured in open areas with high-power remote control)
Receiving sensitivity: -105dB
Maximum load current: 15A
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

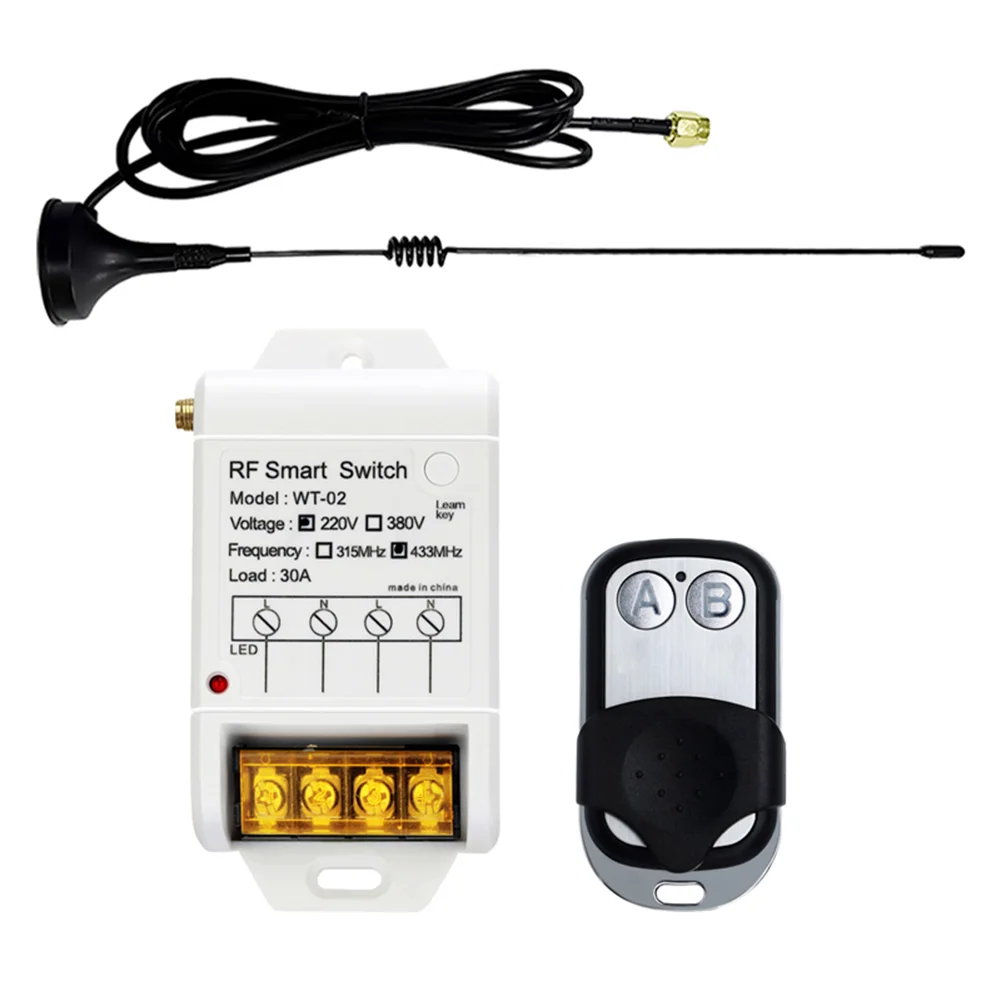

Package Content:1 X Remote Control
1 X ReceiverSelling point content
433MHz Wireless Remote Control AC220V 1CH Relay Receiver Universal Remote Control Remote Control Switch for Garage Door and Gate Control
Feature:
1.Optimized Voltage Safety: Our wireless remote control is meticulously designed to operate within its rated voltage for optimal performance and longevity. Exceeding the working voltage can compromise the device's integrity, so adherence to the given specifications is crucial to ensure it functions safely and efficiently.
2.Child-Safe Design Placement: We prioritize safety for all family members. remote switch is recommended that the device be positioned out of children's reach to prevent unwanted tampering or accidents, ensuring a secure environment for your loved ones while maintaining the device's functionality.
3.Adaptable Control Range: Experience the convenience of remote operation, but stay aware that in areas with substantial wireless interference, the control distance of our RF remote control may be affected. For best results, use in a location with minimal electronic disruptions to maintain a strong connection to your appliances.
4.Moisture-Free Operation Zone: To maintain device integrity and prevent damage, universal remote control is essential to operate our electronic controller in a dry environment. Exposure to moisture not only poses a threat to the device's operational stability but can also lead to long-term malfunctions or electrical hazards.
5.Environmental Awareness: While our remote control switch is engineered for durability, we encourage users to be mindful of environmental conditions that might impact performance. Avoid using the controller in damp conditions to prevent damage, and be conscious of wireless interference that could reduce control range, ensuring consistent and reliable usage.
