Specification:

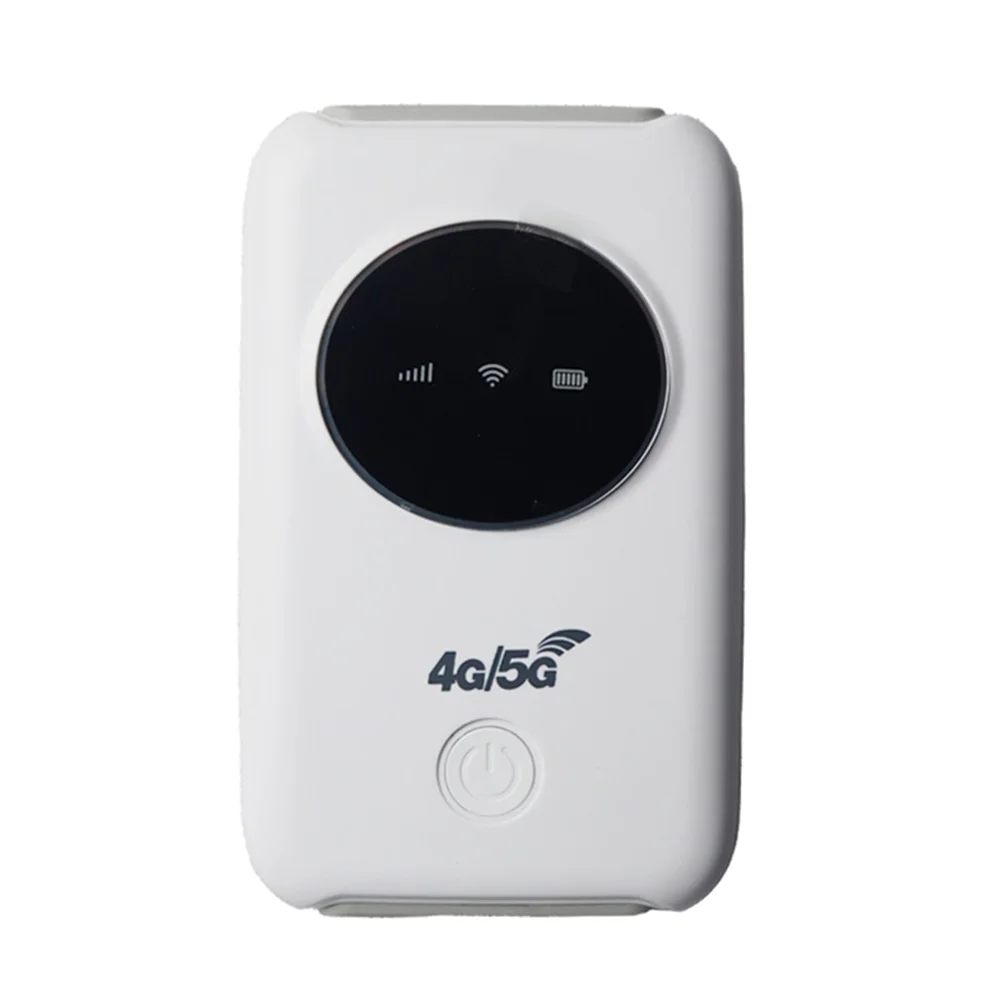

Model: H808+
Color: White
4G-FDD: B1/B3/B5/B7/B20/B40
3G UMTS WCDMA: B1
Download: 150Mbps, upload: 50Mbps
Wireless internet support: 802.11 b/g/n
Sharing: Supports up to 10 users
Battery: 3200 mAh lithium battery
Standby time: The standby time exceeds 30 hours, and the continuous working time exceeds 4-6 hours
Antenna: built-in
Input voltage: 100V~240V, 50Hz~60Hz
Output voltage: Output: 5V DC ± 10%
Output current: 1.0A
Working temperature: -10 ° C to 60 ° C
Working humidity: 5% -65%
Storage temperature: -30 ° C to 80 ° C
Storage humidity: 5% to 95%
Size: 100 * 62 * 17mm/3.94 * 2.44 * 0.67in
Weight: 103g
Packaging size: 121 * 72 * 36mm/4.76 * 2.83 * 1.42in
Weight: 136g
How to use a router:
1. Push the rear cover down.
2. Insert the SIM card with the card core facing downwards
3. Insert the USB port into the power supply to obtain WiFi
4. Connect to WiFi and you can go online.
5. Connect to WIFI and open 192.168.43.1 in the browser to enter the background. The background can modify the WIFI name and password to add an APN.
Before purchasing, please read:
1. Before purchasing, you can check the frequency band in the link below to confirm if it meets local usage requirements
https://www.frequencycheck.com/countries
2. The frequency band used by the local country can be found in the following link
https://www.gsmarena.com/network-bands.php3?sCountry=IRAN
3. Frequency band query link used by local country operators
http://en.wikipedia.org/wiki/List_of_LTE_networks
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x Router
1 x Battery
1 x Data cable
1 x Instruction manual
