4pcs 3-Way Touch Light Dimmer Switch with Screw-Type Wiring Caps Table Lamp Control Home Bulb Module Sensor Parts
Feature:
Material: Made of friendly material ABS, the touch dimmer switch is reliable and durable, and can serve you for a long time.
Voltage and power: the product voltage is 220-240V, the rated power is 50Hz/15-80W, and the rated current is 0.35A (maximum).
Save time and money: After you have this dimmer, you don\'t need to replace the broken bulb, which can save money; At the same time, the matching wiring cap can save you the cost of purchasing electrical tape; This multifunctional three-level dimming touch switch must be a good project to improve your quality of life.
Touch brightness adjustment mode: the 3- way touch sequence is LO-MED-HI-OFF, which is compatible with 3- way bulb or 1- way bulb, LED and incandescent lamp.
Specification:
Material: ABS.
Wire length: about 110mm/4.3in
Dimension: 47*31*15mm/1.9x1.2x0.59in
Instructions for use:
the use method is simple and easy to operate; Brown wire and blue wire are connected to plug, blue wire and red wire are connected to light source (blue wire is connected to two groups of wires at the same time); Black wires are touch wires and are usually connected to hardware boards.
Note:
The voltage is 220V-240V, and cannot be used above or below this voltage value.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

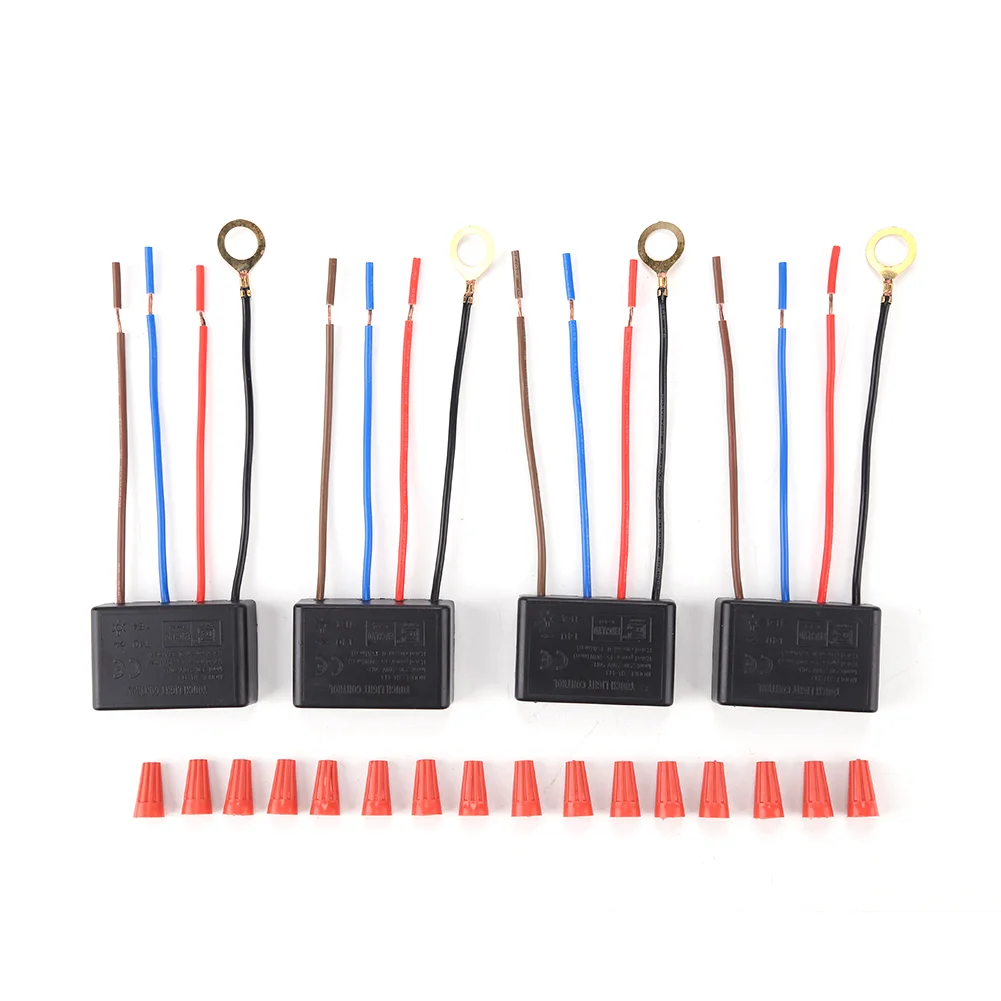

Package Content:
4 x Lamp Dimmer Switch
16 x Wiring Caps
