Specification:
Origin: Mainland China
Rated Voltage: 12/24V
Rated Current: 5A-50A
Suitable for 6-28VDC applications
Plastic body with mounting bracket
#10-32 bolt length: (16.8mm); bolt spacing: (17.5mm)
Wing mounting hole spacing: (39.6mm)
Interrupting Rating: 2.5KA @ 28VDC
Operating Temperature: -40°F to 185°F (-40°C to 85°C)
Storage Temperature: -40°C to 125°C (-40°F to 260°F)
Torque Rating: 15 in-lb
IP66 Waterproof: IP66 on plastic cover (except for terminal)
Compliance: SAE JGG3; SAE J1171 (Ignition Protection Rating)
Applications: Battery chargers, audio systems, cars, trucks, buses, marine vessels, recreational vehicles, trailer motors, etc.
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.

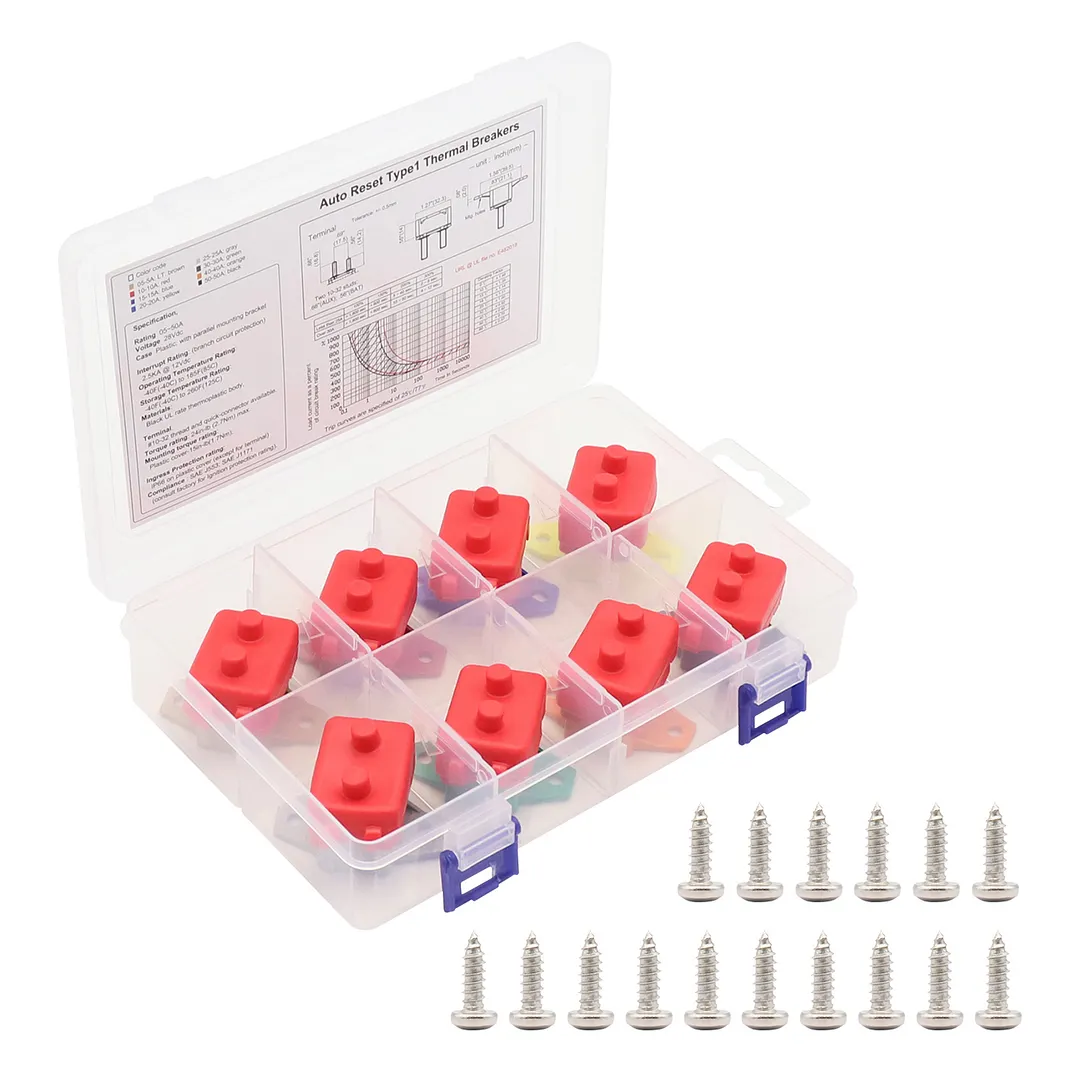

Package Content:8 x Car Circuit Breaker
8 x Red Protective Covers
16 x Screws
