Specification:
Origin: Mainland China
Module size: About 110x57x18.5mm/4.33x2.24x0.72inch
Weight: 100g
Bolt holes: spacing 104x51, aperture 3mm
Trigger voltage: Low level is 0-2.5V, high level defaults to 3.5-5V (if triggered by a voltage of 12V, a resistor of 5.1-6.8K needs to be connected in series
Can only be triggered: 24V voltage triggering requires connecting a 15-22K resistor in series to trigger, otherwise the chip may be burned out
Power supply voltage: 5V, 12V, 24V
Quiescent current: 18mA, 23mA
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

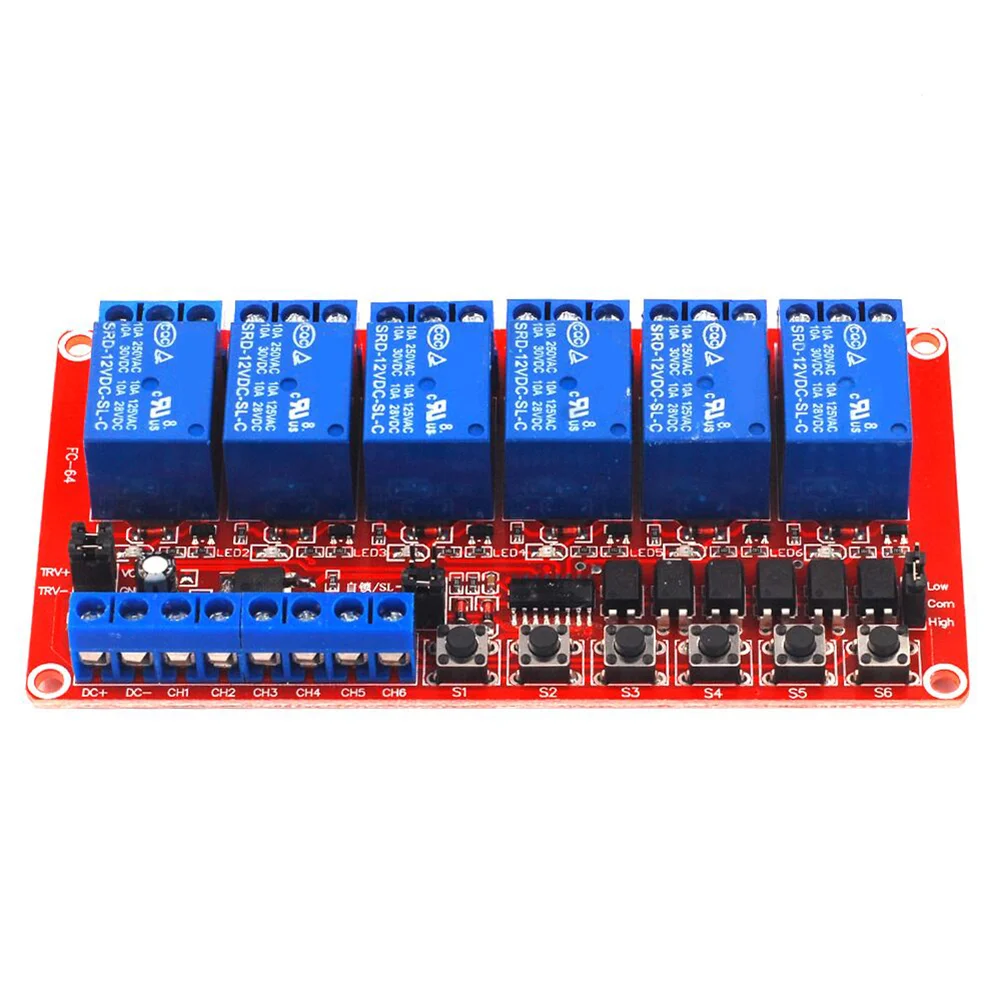

Package Content:1 x Relay Module
