Specification:
Module nature: Non isolated boost module (BOOST)
Input voltage: Two input voltage ranges are optional (selected through jumpers on the board)
1. 8-16V input (for three series lithium batteries and 12V battery applications) In this input state, do not overpressure the input or it will burn out the module!!!
2. 12-60V input factory default range (for wide input voltage range applications)
Input current: 16A (MAX) If it exceeds 10A, please strengthen heat dissipation
Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the more static current will increase)
Output voltage: 12-80V continuously adjustable (default output 19V, if you need other voltages, please explain to the shopkeeper.)
12-80V fixed output (for Pi quantity customers)
Output current: 12A MAX over 10A, please strengthen heat dissipation (related to input and output pressure differences, the larger the pressure difference, the smaller the output current)
Constant current range: 0.1-12A
Output power:=input voltage * 10A, such as: input 12V * 10A=120W, input 24V * 10A=240W,
Input 36V * 10A=360W, input 48V * 10A=480W, input 60V * 10A=600W
If higher power is required, two modules can be used in parallel. For example, if the output needs to be 1, two modules can be used in parallel, and the current of each module can be adjusted to 8A.
Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)
Working frequency: 150KHz
Conversion efficiency: 95% higher (efficiency is related to input and output voltage, current, and voltage difference)
Overcurrent protection: Yes (if the input exceeds 17A, the output voltage will be automatically reduced, with a certain range of error.)
Short circuit protection: Equipped with (input 20A fuse) dual short circuit protection for use.
Input reverse protection: None, (if necessary, please connect two tubes in the input string)
Output anti backflow: Yes, there is no need to add an anti backflow tube when charging.
Installation method: 2 3mm screws
Wiring method: Welding free output of wiring terminals
Module size: 76 * 60 * 56mm/2.99 * 2.36 * 2.20in
Module unit weight: 205g
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

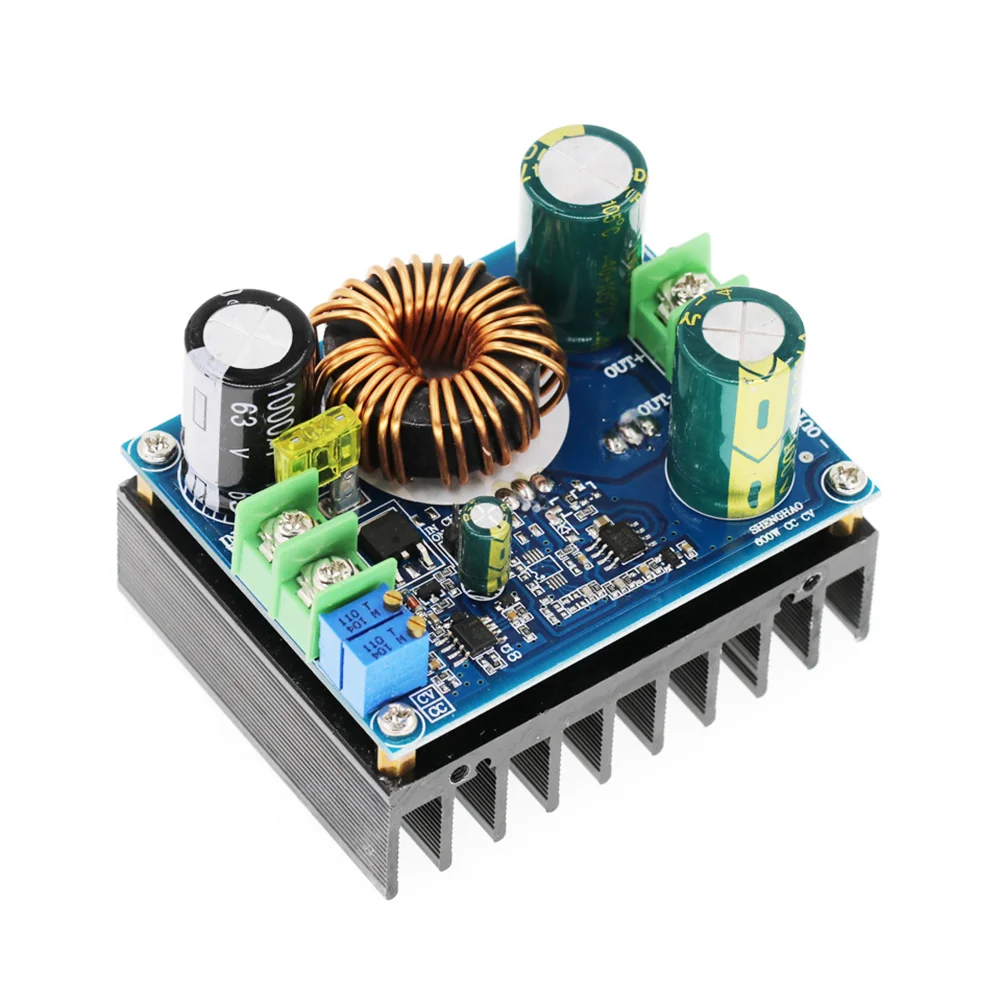

Package Content:1 x 600W Boost Module
