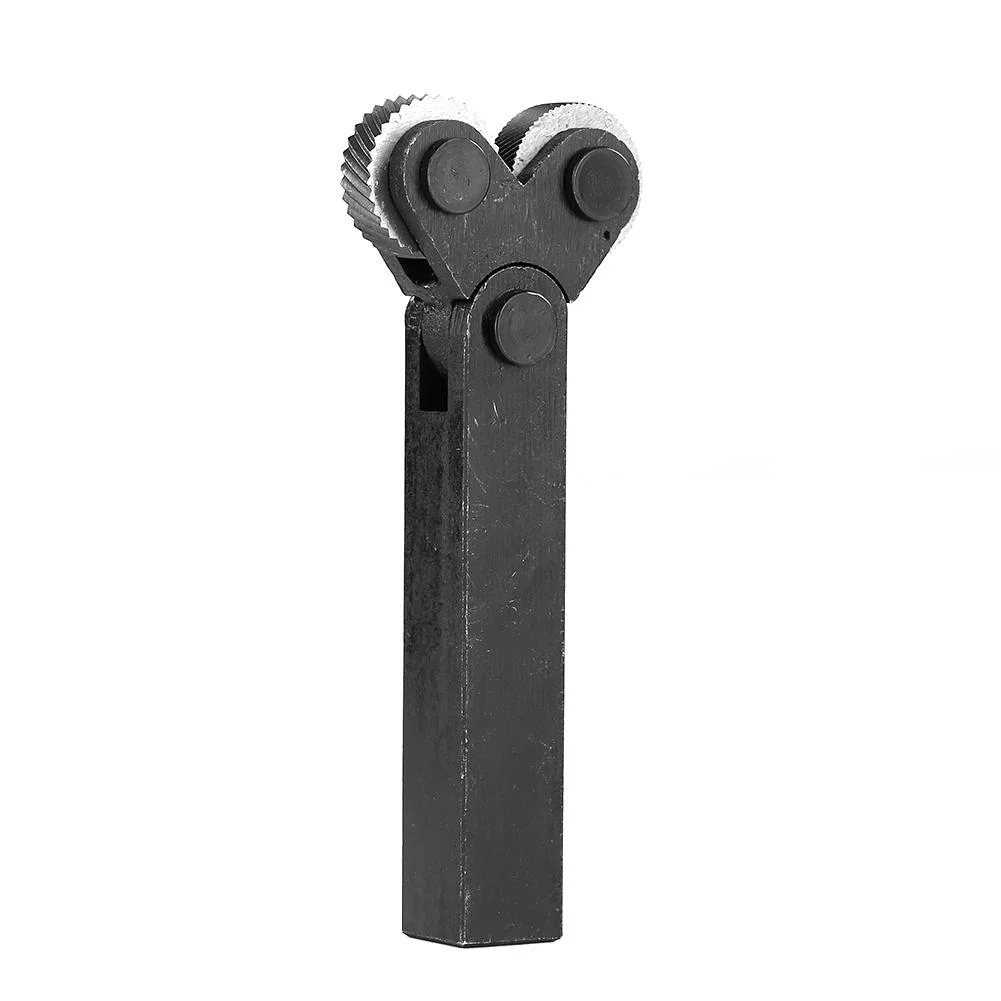

7pcs Steel Dual Wheel Knurling Tool Set with Diagonal Linear Knurl Wheel

7pcs Steel Dual Wheel Knurling Tool Set with Diagonal Linear Knurl Wheel 0.5mm 1mm 2mm Pitch Linear Pitch Knurl Set Lathe Cutter
Feature:
Two rollers twill direction: one is positive and the other one is negative.
Comes with fine, medium,and coarse diamond knurls.
The mechanical process metal knob or other work at the appearance of rolling pattern for anti-slip.
Rigidity, wear resistance, anti-demolition damage strength.
Anti-rust resistant, high processing efficiency.
High strength and hardness.
Durable in use.
Used for processing the work piece surface pattern.
Ideal for replacing your damaged Linear Knurl wheel.

Specification:
Material: Steel
Color: Black (Knurling) + Brown (Wheel)
Knurling wheel figure: approx 0.5mm, 1.0mm, 2.0mm
Knurling wheel diameter: approx 20mm/0.79"
0.5mm Diagonal Linear Knurling Wheel:
Knurling pitch: 0.5mm
Net pulley diameter: approx 26mm/1.02"
Hole diameter: approx. 10mm/0.39"
Hanawa thickness: approx. 8mm/0.31"
1mm Diagonal Linear Knurling Wheel:
Knurling pitch: 1.0mm
Knurled wheel outer diameter: approx 26mm/1.02"
Hole diameter: approx 10mm/0.39"
Knurled wheel thickness: approx 8mm/0.31"
2mm Diagonal Linear Knurling Wheel:
Knurling pitch: 2.0mm
Knurled wheel outer diameter: approx 26mm/1.02"
Hole diameter: approx 10mm/0.39"
Knurled wheel thickness: approx 8mm/0.31"
Total size: 25*8mm/0.98*0.31" (Outer Diameter * Thickness)

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow slight measuring deviation due to manual measurement.

Package Content:
1 X Knurling Tool
6 X Knurling Wheels
