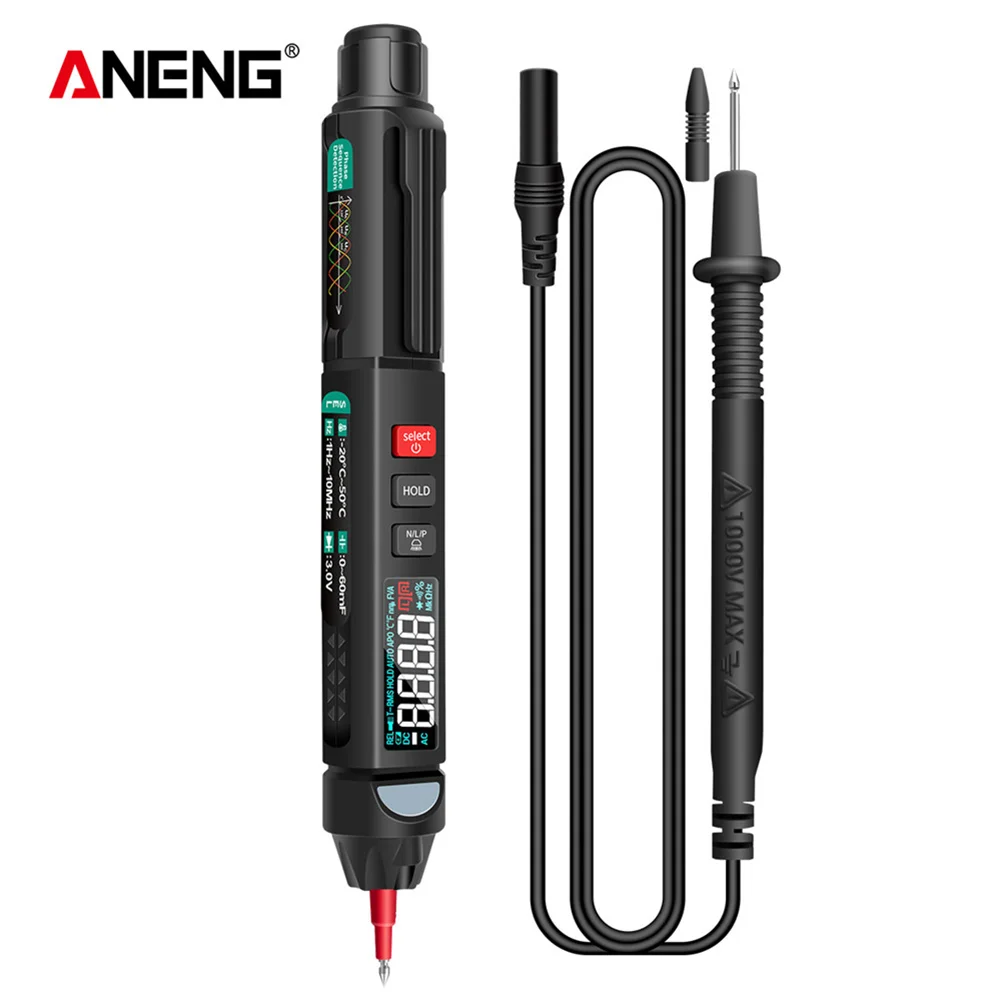

"Professional A3008 LCD Digital NCV Multimeter Pen Type Intelligent 6000 Counts Non Contact AC/DC Voltage Resistance Diode Handheld Tester Tools
Description:
6000counts is a pocket-sized 3 5/6-digit true effective value, pen-shaped smart multimeter, no need to turn the dial to select the function.
According to the different input voltage/resistance/, the meter will automatically identify and measure.
The machine has stable performance, high precision, high reliability, clear readings, and overload protection.
Driven by a AAA 1.5V battery, the meter uses a large LCD display and a boost power supply. Even at the edge of the 0.8V low battery, it can ensure the backlight and ultra-high brightness of the flashlight.
The meter is easy to carry, and it is an extremely popular instrument for users.
This series of meters can automatically identify DC voltage and AC voltage, resistance, without any switching, and can also manually switch to measure capacitance, diode, continuity test, non-contact voltage measurement, neutral live wire measurement, phase sequence measurement and other parameters.
This high-performance tool meter is an ideal tool for laboratories, factories, radio enthusiasts and families.
Specification:
1. Display mode: LCD;
2. Maximum display: 5999 (3 5/6) digits automatic polarity display;
3. Measurement method: Double integral A/D conversion;
4. Sampling rate: about 3 times per second;
5. Over-range display: The highest position displays \""OL\"";
6. Working environment: (0-40)℃, relative humidity <80%;
7. Power supply: 1 X 1.5V AAA battery (not included);
8. Size: 170.5x25.4x22mm/6.71x1x0.87in;
Function:
DC voltage DCV: Yes
AC voltage ACV: Yes
Resistance/diode/continuity test/capacitance: Yes
Non-contact phase sequence measurement A3008 type: Yes
Color screen display A3008 type: Yes
NCV: Yes
Neutral/Live line test: Yes
Full unit symbol: Yes
Backlight manual/automatic turn off: Yes
True effective value measurement: Yes
Temperature (℃/℉) Normal temperature display: Yes
Flashlight lighting: Yes
Automatic shutdown: Yes
DC voltage/AC voltage
Range Accuracy 6000counts Resolution
DC/AC6V ±(0.5%+4) 0.001V
DC/AC60V ±(0.5%+4) 0.01V
DC600/AC600V ±(0.5%+4) 0.1V
DC1000V/AC700V ±(0.8%+10) 1V
Resistance
Range Accuracy 6000counts Resolution
600Ω ±(0.8%+5) 0.1Ω
6kΩ ±(0.8%+3) 1Ω
60kΩ ±(0.8%+3) 10Ω
600kΩ ±(0.8%+3) 100Ω
6MΩ ±(0.8%+3) 1kΩ
60MΩ ±(2.5%+3) 10kΩ
Capacitance
Range Accuracy 6000counts Resolution
10nF ±(3.5%+20) 10pF
100nF ±(3.5%+20) 100pF
1uF ±(3.5%+20) 1nF
10uF ±(3.5%+20) 10nF
100uF ±(3.5%+20) 100nF
1mF ±(3.5%+20) 1uF
10mF ±(3.5%+20) 10uF
60mF ±(5%+3) 100uF
Temperature measurement (℃/℉)
Range Accuracy 6000counts Resolution
(-20-50 )℃ ±(1.0%+5)＜50℃ 1℃
(0-122 )℉ ±(0.75%+5)＜122℉ 1℉
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3cm measuring deviation due to manual measurement.
"
