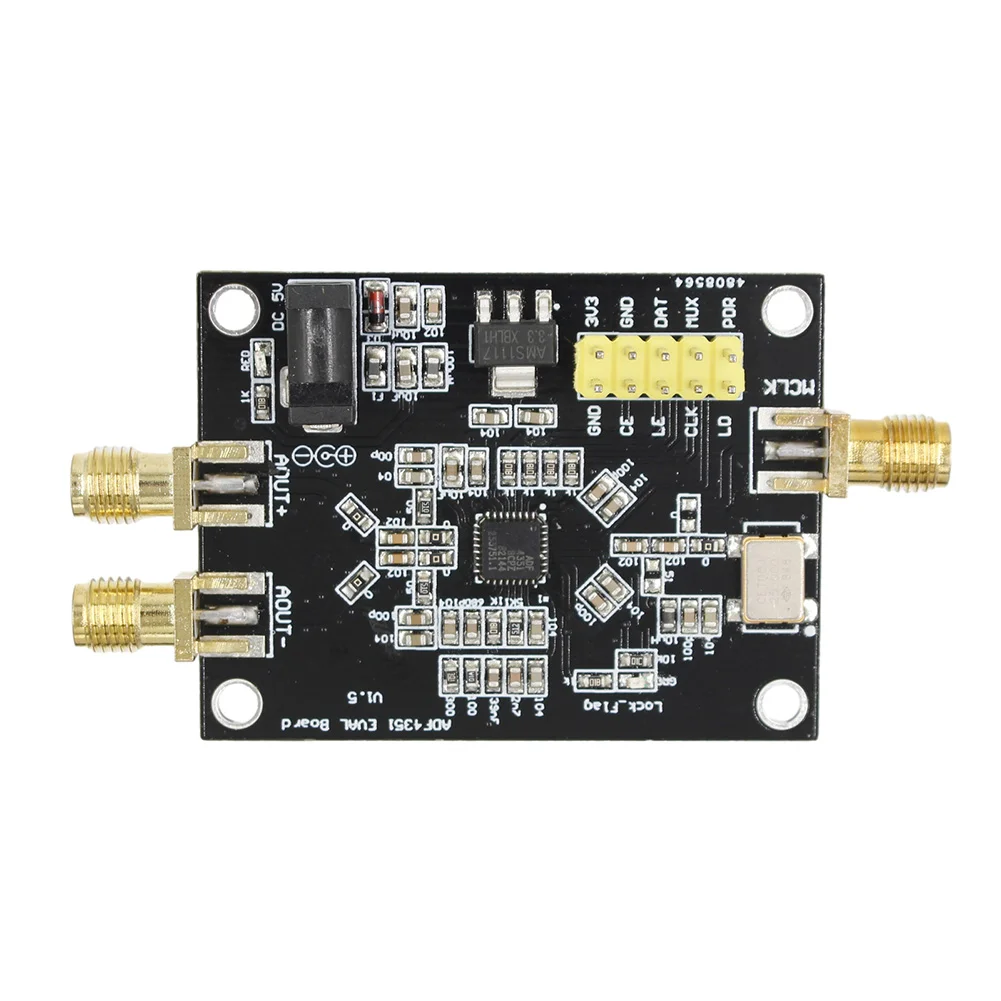

ADF4351 RF Signal Generator 135M-4.4GHz Phase Locked Loop Frequency Synthesizer

Specification:
Origin: Mainland China
Type: Power Tool Parts
Material: plastic
Output frequency range: ADF4351:35M-4.4G, ADF4350 137M-4.4GHz
Power supply: DC002 interface DC4-9V typical 5V power supply
Baseline and official ADI evaluation board layout
Output signal: 2.2-4.4G fundamental wave (sine wave)
35M-2.2G fundamental wave (square wave)
137MHz-2.2GHz (ADF4350) fundamental frequency division (square wave)
Output signal interface: SMA female
Default +-50ppm 25M imported active crystal. STM32 provides circuit diagrams and test programs in PDF format.
Material: PC
Product size: about 49.00x37.00x12.00mm
Product size: 1.93x1.46x0.47inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Package Content:
1 x Development Board
Selling point content
ADF4351 RF Signal Source PLL Frequency Synthesizer 35M-4400M 135M-4.4GHz Phase Locked Loop RF Signal Source Module Signal Generator Module Development Board Electronic Components
Feature:
1. Versatile Frequency Adaptation: Our development board excels in delivering a broad spectrum of output frequencies, ensuring maximum adaptability for a myriad of technological applications and industry demands.
2. Universal Compatibility: The RF signal generator is equipped with a DC002 power interface, facilitating seamless integration with a multitude of devices, enhancing its utility across various configurations.
3. Precision Engineering and Performance: Adhering to ADI's official evaluation standards, the RF signal source PLL frequency synthesizer provides dependable operation and accurate outcomes, setting a benchmark in design and layout.
4. Advanced Control and Versatility: Equipped with three-wire SPI control pins and lock pins, the phase locked loop RF signal source module delivers detailed point scan frequency and frequency hopping capabilities, complete with adjustable step sizes for meticulous oscillation management.
5. Portability and Craftsmanship: The signal generator module boasts a compact size and lightweight design, combined with fine craftsmanship, for an easily transportable solution that doesn't compromise on durability or quality.
