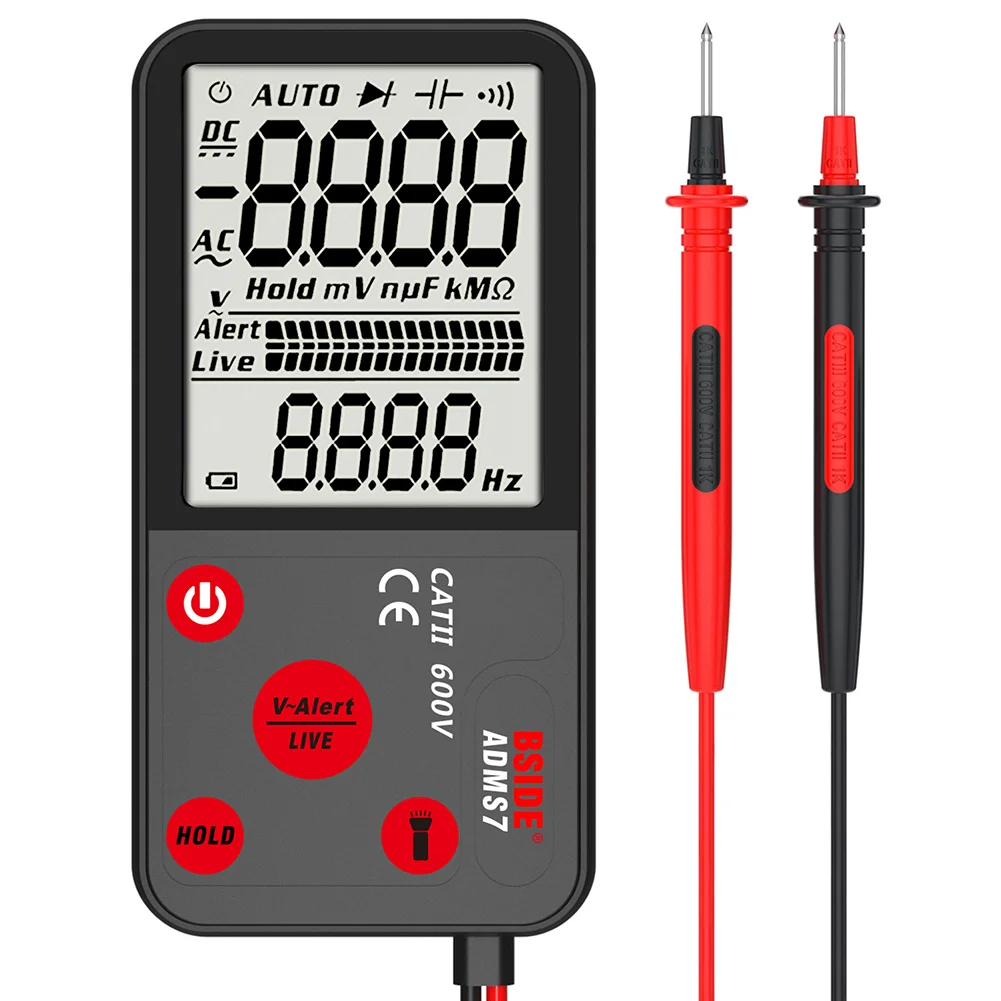

ADMS7 Portable Digital Multimeter Auto AC/DC Voltage Meter Ohm Tester LCD Display 6000 Counts with Analog Bar Large Screen Flash Light
Suit For:
Suitable for old people who often do DIY.
For electrician or professional.
For students or who are go to school soon.
Instruction:
A new 3.5-inch oversized screen multimeter.
Not only is the screen oversized, but also the three-wire display can simultaneously display ACV and Hz, shock your field of view.
Only the thickness of the 12mm, when you hold it, you can jokingly say it is a phone.
Feature:
1. The ultra-thin fuselage and pocket-size design makes it look like a real cell phone. Suitable for daily use, using teacups or fashion.
2. Large screen 3-line display: large screen 3-line display can display 3 test results on the screen, such as voltage, frequency and analog bar.
3. Automatic identification design: automatic identification design allows testing AC / DC voltage, Hz, continuity, no switch.
4. Unibody design, no need to insert and pull out probe.
5. Flashlight design: flashlight design to make measurement more efficient. The design of the hanging hole makes it more portable.
Specification:
Counts: 6000 count
DC voltage: 60mV / 600mV / 6V / 60V / 600V ±(0.8%+ 3)
AC voltage: 60mV / 600mV / 6V / 60V / 600V ±(1.2%+ 5)
Resistance: 0.006Ω/0.06Ω/0.6Ω/6Ω/60Ω/600Ω/6kΩ±(1.2%+ 3)
Frequency: 10Hz / 100Hz / 1KHz ±(1.0%+ 5)
V-Alert(Non-contact voltage detection):
Low range: strip value displayed in L region. The buzzer sounded a slow alarm.
Middle range: strip value displayed in the M area. The buzzer sounded a quick alarm.
High range: strip value displayed in the H area. The buzzer made a very loud alarm.
Real-time check: beep sound, LCD displays "LIVE"
Continuity: if resistance is less than 30 Ω, beep
Power: 2x3V (CR2032) (included)
Size: 136x67x12mm/5.35x2.64x0.47in
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
1 x Digital Multimeter
1 x Test Line
1 x Manual
