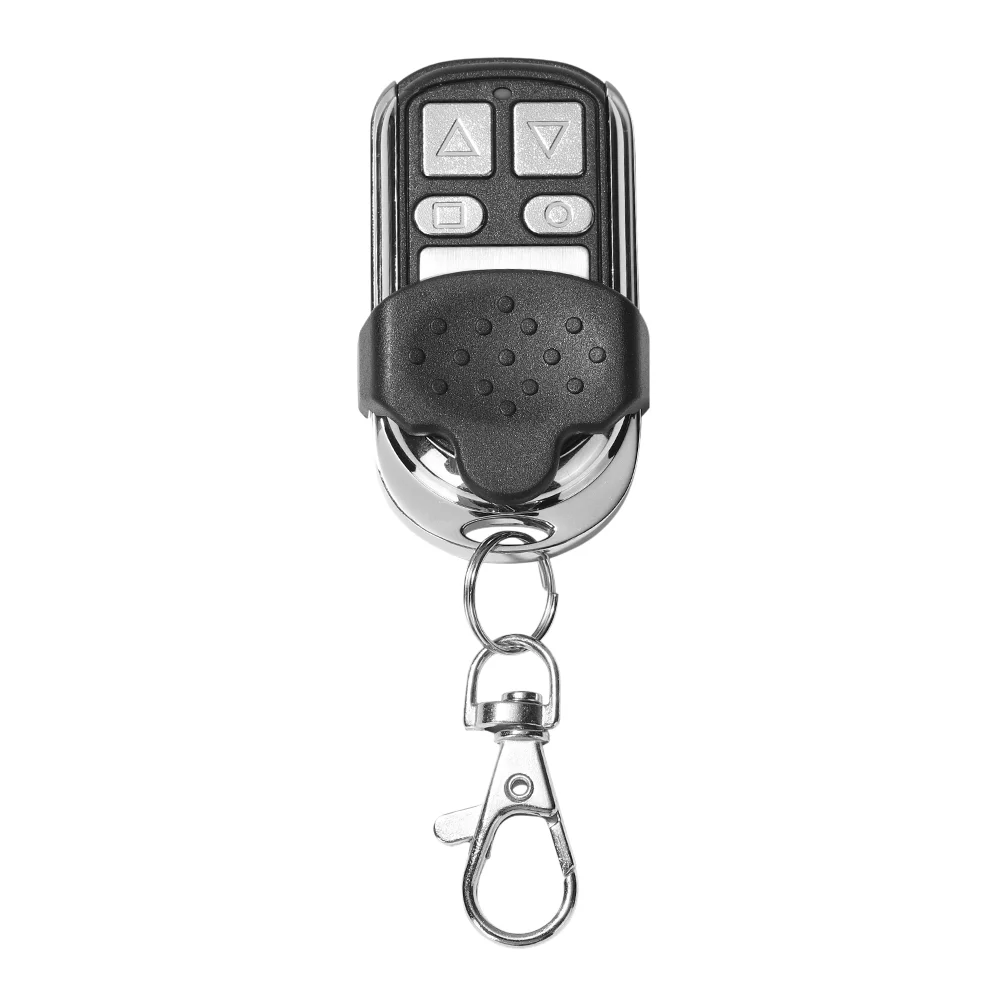

AK-078A Universal Smart Copy Remote Controller 4 Buttons Garage Gate Door Opener Duplicator Clone Cloning Learning Code Key
Feature:
1. Using high-performance radio frequency chip, crystal oscillator frequency stabilization, accurate frequency point;
2. Long transmission distance, no directionality, high transmission sensitivity, no signal blocking;
3. It can copy most of the fixed code and learning code wireless remote control, the copy speed is fast, and the operation is simple;
4. After copying, it will not affect the original remote control;
5. Copy code automatically, use it directly, no coding is required.
Specification:
Product name: Metal four-button copy remote control
Product size: 60x33x15mm/2.36x1.3x0.59in
Working voltage: 12 (V)
Working current: ≤12 (mA)
Encoding type: Copy
Working frequency: 315/433MHZ (optional)
Modulation method: ASK (Amplitude Modulation)
Wireless transmission distance: 50-100m (open)
Scope of application: Garage doors, alarms, automatic doors, rolling shutters, etc.
Chip models that can be copied:
1.PT2242, 2.PT2260, 3.PT2262, 4.EV1527, 5.527, 6.PT2240, 7.SMC918, 8.HT-12E, 9.AX5326-3, 10.AX5326-4, 11.AX5026, 12. HT600, 13.HT680, 14.HT6207, 15.HT6010, 16.HT6012, 17.HT6014, 18.MC145026, 19.HT640, 20.SMC926, 21.HT12D and other fixed code and learning code wireless remote control.
Operating instructions:
1. Clear code: press and hold the two buttons on the front (above) at the same time, the LED indicator flashes three times, release any one of the buttons (the other is kept pressed), press the released button three times, the LED indicator Enter the fast flashing state, indicating that the code clearing is completed (the remote control that has cleared the code, short press, the LED indicator does not light up).
2. Duplicate: Hold the original remote control, the other is the duplicator remote control, the two remote controllers are close to each other, press the button of the duplication, respectively, the LED indicator flashes three times and then stays on, indicating duplication Success, the other key operation method is the same.
3. Recovery instructions: If you have cleared the useful codes by mistake, you can press the two buttons on the back (below) of the controller at the same time before copying other remote controllers again. After the indicator light flashes quickly for 3 times, it means the recovery is successful.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:
1 X Copy Remote Control
