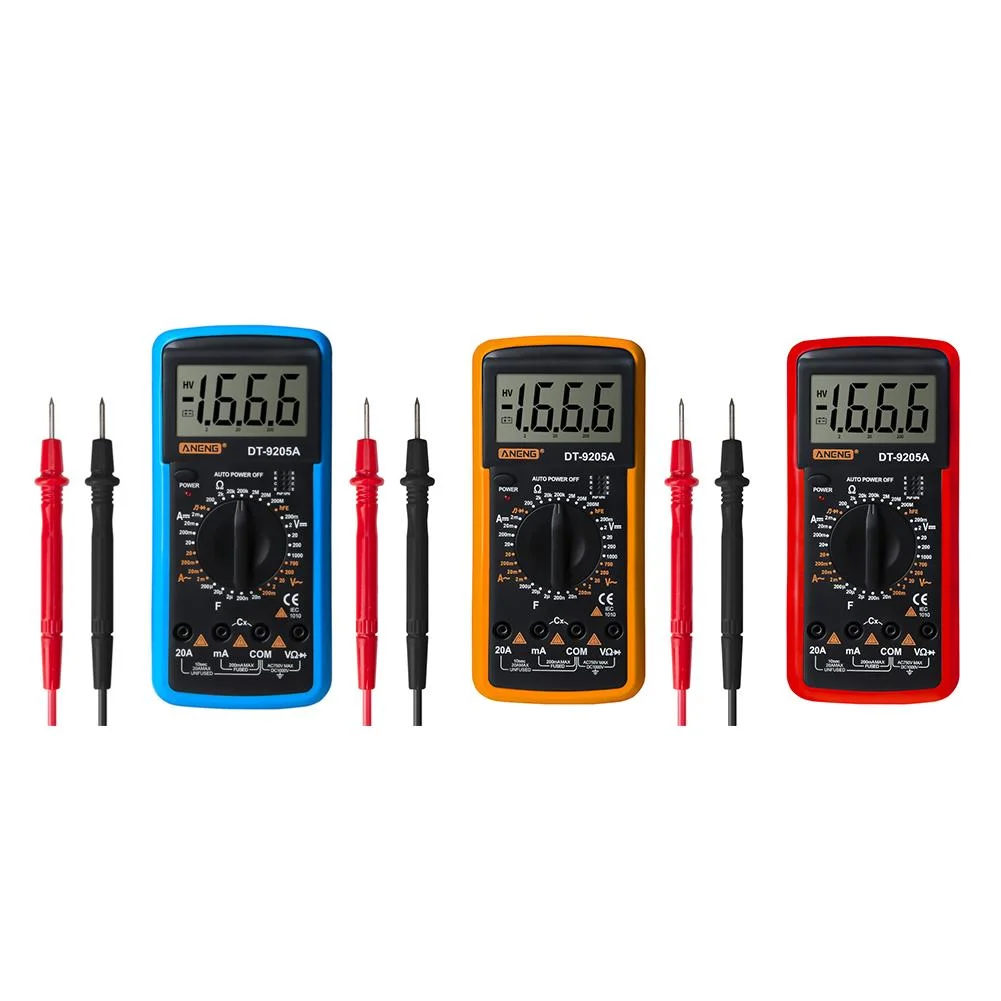

DMM can measure AC / DC voltage and current, resistance, frequency, diode, triode, continuity and logic level.
Clear LCD, easy to read the measurement results.
The back is designed with bracket for easy operation.
Wide measuring range and high precision.
Support sleep mode and data retention.
DC voltage: 200mv-1000v, ± (0.5% + 1dgt)
AC voltage: 20v-750v, ± (0.8% + 3dgt)
DC current: 20ma-20a, ± (0.8% + 1dgt)
AC current: 200ma-20a, ± (1.8% + 3dgt)
Resistance: 200 Ω - 200M Ω, ± (0.8% + 1dgt)
Capacitance: 2nf-20 μ F, ± (2.5% + 3dgt)
Frequency: 2khz-20khz, ± (1.5% + 5dgt)
Continuity test: Yes
Temperature test: Yes
Logic level test: yew
Sleep mode: Yes
Data retention: Yes
Maximum display: 1999
Power supply: 6F22 9V battery (not included)
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
1 X Multimeter
1 X Pair of Test Probes
1 X User Manual
