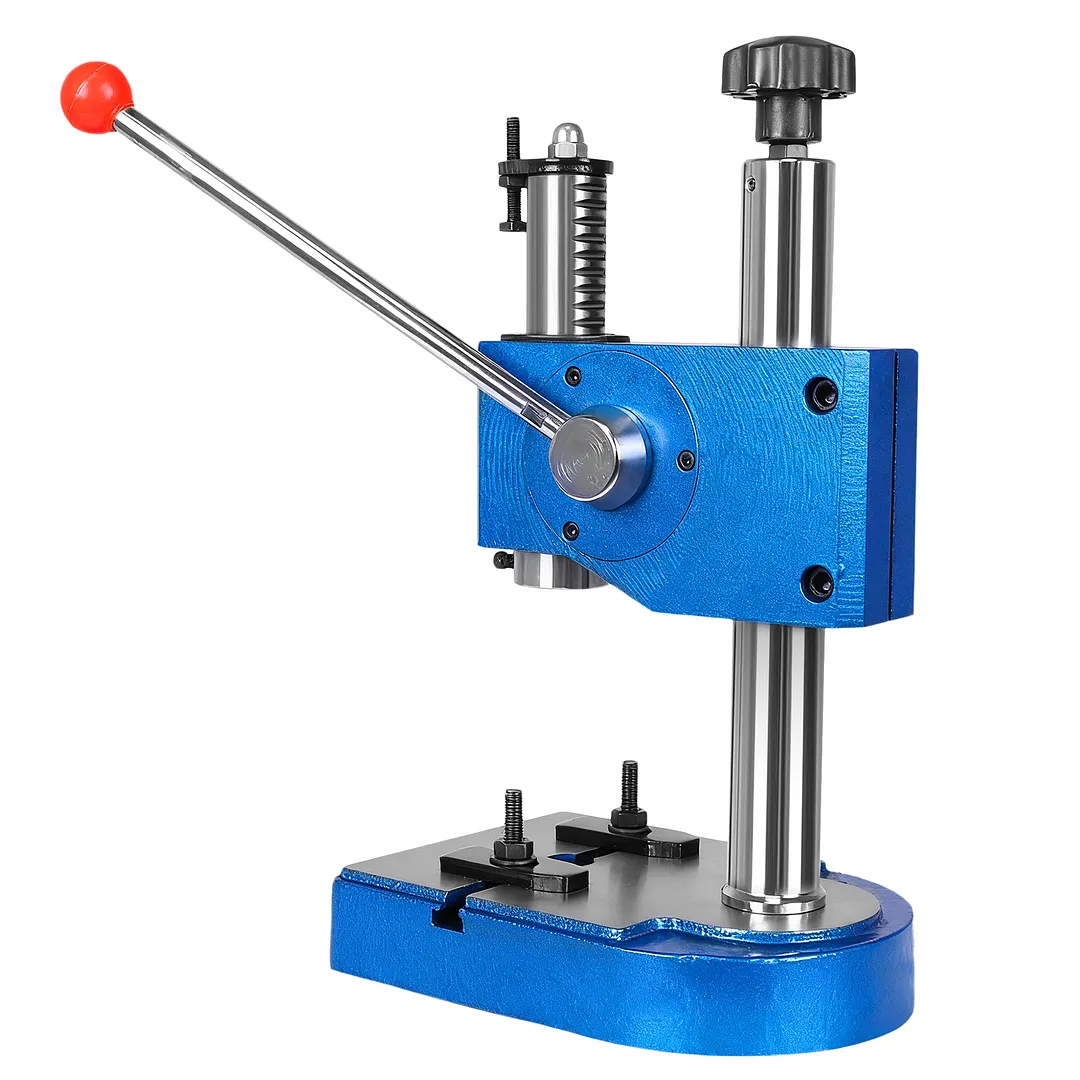

Specification:
Material: Thickened cast iron
Size: 380*270*180mm
Maximum pressure: 500kg (0.5T)
Weight: 22kg
Maximum stroke: 80mm
Maximum opening height: 210mm
Handle hole dimensions: 15mm diameter * 30mm
Throat depth: 95mm
Worktable effective area: 170*170mm
Closing height adjustment: 140mm
Operation and Features:
1. After manually pressing the operating handle, the handle returns to its original position via a built-in coil spring, saving labor and allowing for precise depth control, making it suitable for large-scale machining of the same depth.
2. The built-in coil spring ensures easy return of the handle after pressing.
3. A stop mechanism allows for depth control, limiting the machining depth according to the desired machining depth, making it suitable for large-scale machining of the same depth.
4. The main chassis is equipped with a circular column that rotates 360° around the column, increasing the machining range and flexibility. 5. The main frame has been upgraded with an anti-rotation guide device, and a guide groove has been added to the spindle to the spindle head from rotating, avoid the jamming of the gear shaft and the spindle, and improve the machining accuracy.
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
Package Content:1 x Manual Press
2 x Round Column
