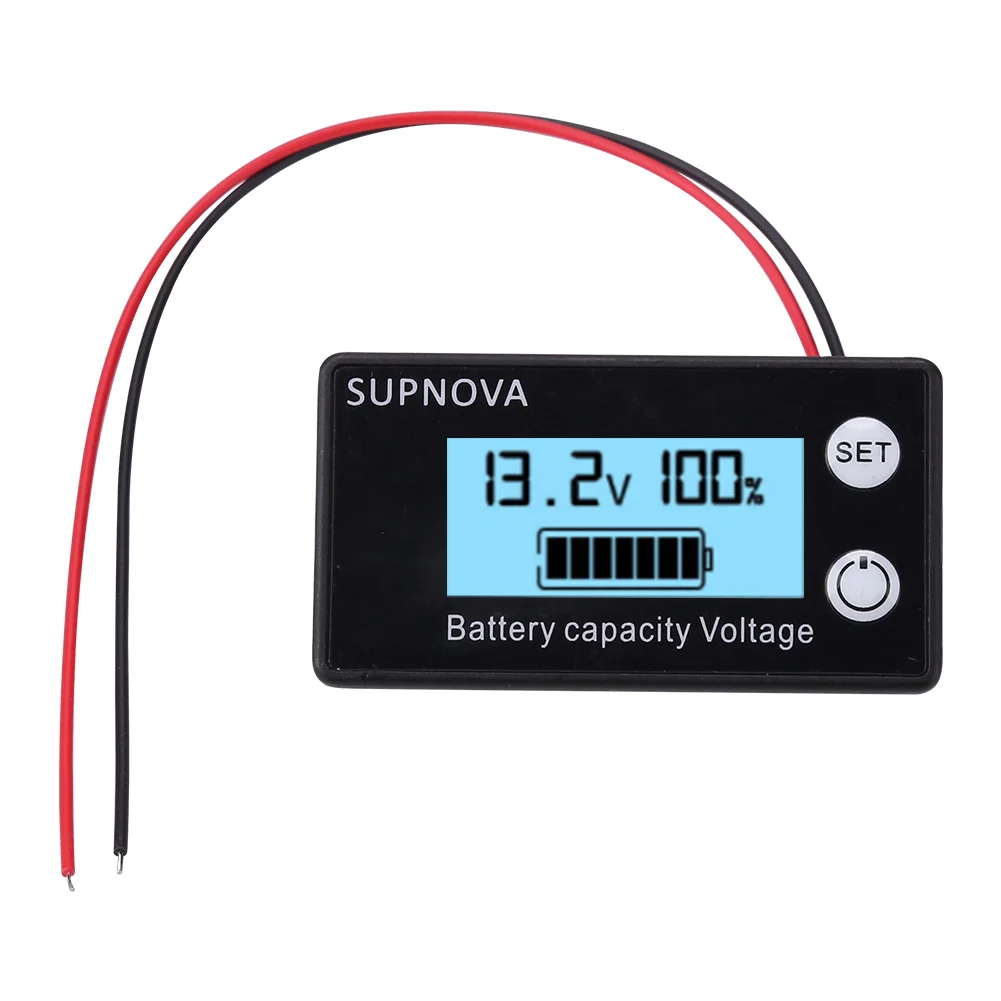

Battery Capacity Indicator Monitor LCD HD Digital Display DC 8V-100V Lead Acid Lithium Car Motorcycle Voltmeter Voltage Gauge
1. The high-definition LCD screen is designed to provide a clear and bright display from all angles.
2. Monitor battery capacity and voltage with this mini tester.
3. Blue backlight, easy to read the value in a dark environment.
4. Widely used in automobiles, motorcycles, scooters, bicycles, power bank, test equipment, etc.
5. Check the remaining battery capacity, and directly display the battery capacity symbol and percentage.
6. The instrument has the characteristics of accuracy, stability, small size, and convenient carrying.
7. Professional version: Professional version with temperature detection and low pressure alarm function (temperature + alarm version)
Project Type: Battery Monitor
Display color: White/Blue
Type: A White Backlight, B Blue Backlight, C Blue Backlight with Temperature, D White Backlight with Temperature and Alarm
Voltage measurement range: DC8V-100V
Working current: <15MA
Measurement accuracy: 1%±1 word
Display mode: LCD screen
Measuring speed: about 2 times per second
Size: about 6.5x3.5x1.5cm / 2.6x1.4x0.6in
Installation size: about 58x28mm / 2.3x1.1in
Lead length: 20 cm/7.9 inches
1. Ternary lithium battery L02 string to 25 string L measurement. Power off with memory.
2. The measurement range of lead-acid battery P is DC12V to DC24V, DC36V, DC48V, DC60V, DC72V, DC84V. Power board memory.
3. Fe-lithium battery pack F can measure F03 to 26 strings. Power board memory.
(If you need detailed setup instructions, please contact us).
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 X Voltmeter
