Specification:
Origin: Mainland China
Type: Module
Condition: New
Specification:
2 strings 1A/2 strings 2A/2 strings 4A/3 strings 1A/3 strings 2A/3 strings 4A/4 strings 1A/4 strings 2A/4 strings 4A (optional)
Product Description:

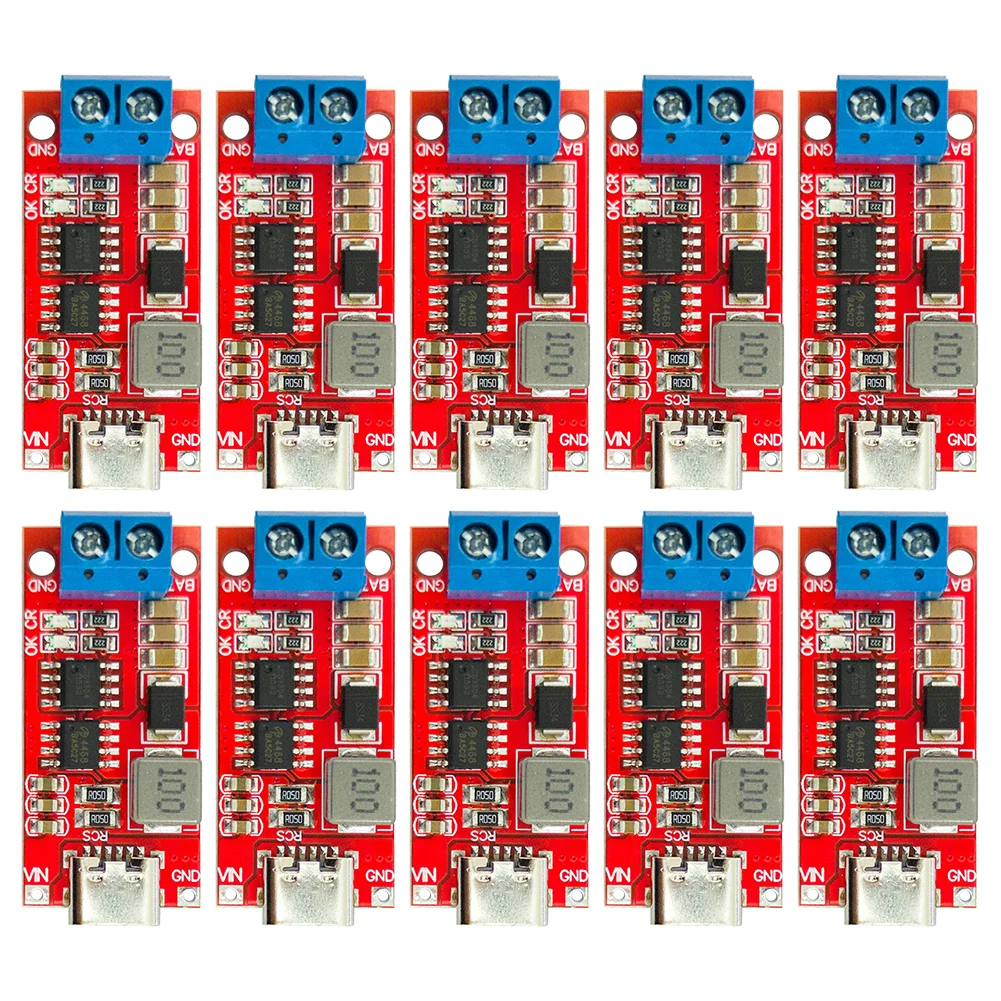

2S 3S 4S Type-C to 8.4V 12.6V 16.8V Step-Up LiPo Polymer Li-ion Charger 7.4V 11.1V 14.8V 18650 Lithium Battery
Features:
1: Various choices, customers can choose what they need according to different needs, 2: Wide range of uses, 3: High safety performance, 4: Easy to understand and easy to operate, 5: Battery overvoltage protection
scope:
2-Cell(2S) 8.4V version:
Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A(1A Version);2A(2A Version);4A(4A Version)
Charging voltage: 8.4V
Charging current: 0.55A(1A Version);1.1A(2A Version);2.2A(4A Version)
3-Cell(3S) 12.6V version:
Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A(1A Version);2A(2A Version);4A(4A Version)
Charging voltage: 12.6V
Charging current: 0.37A(1A Version);0.74A(2A Version);1.48A(4A Version)
4-Cell(4S) 16.8V version:
Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A(1A Version);2A(2A Version);4A(4A Version)
Charging voltage: 16.8V
Charging current: 0.28A(1A Version);0.56A(2A Version);1.12A(4A Version)
Battery Overvoltage Protection
LED indicator: \"CR\" LED is charging status indicator
\"OK\" LED fully charged or constant voltage mode;
Working environment temperature -40°C to +85°C
Product size: 43*21*14mm/1.69*0.82*0.55in
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1Pc *Step Up Boost Converter Module
