    (Bundle Sale) HLK-LD2410C 24Ghz Human Motion Sensor Millimeter Wave Radar Sensor Module

    1067322

    $18.99
    Qty
    Qty 1000 in stock
    Specification:
    Origin: Mainland China
    Type: Module
    Condition: New
    Application scenario: The LD2410C human body sensing module can detect and recognize human movements, micro movements, standing, sitting, and lying down. Supports multi-level parameter adjustment and can be widely applied in various AIoT scenarios.
    Size: 22 * 16 * 8MM/0.87x0.63x0.31inch
    The pin aperture is 0.6mm, and the pin spacing is 2.54mm.

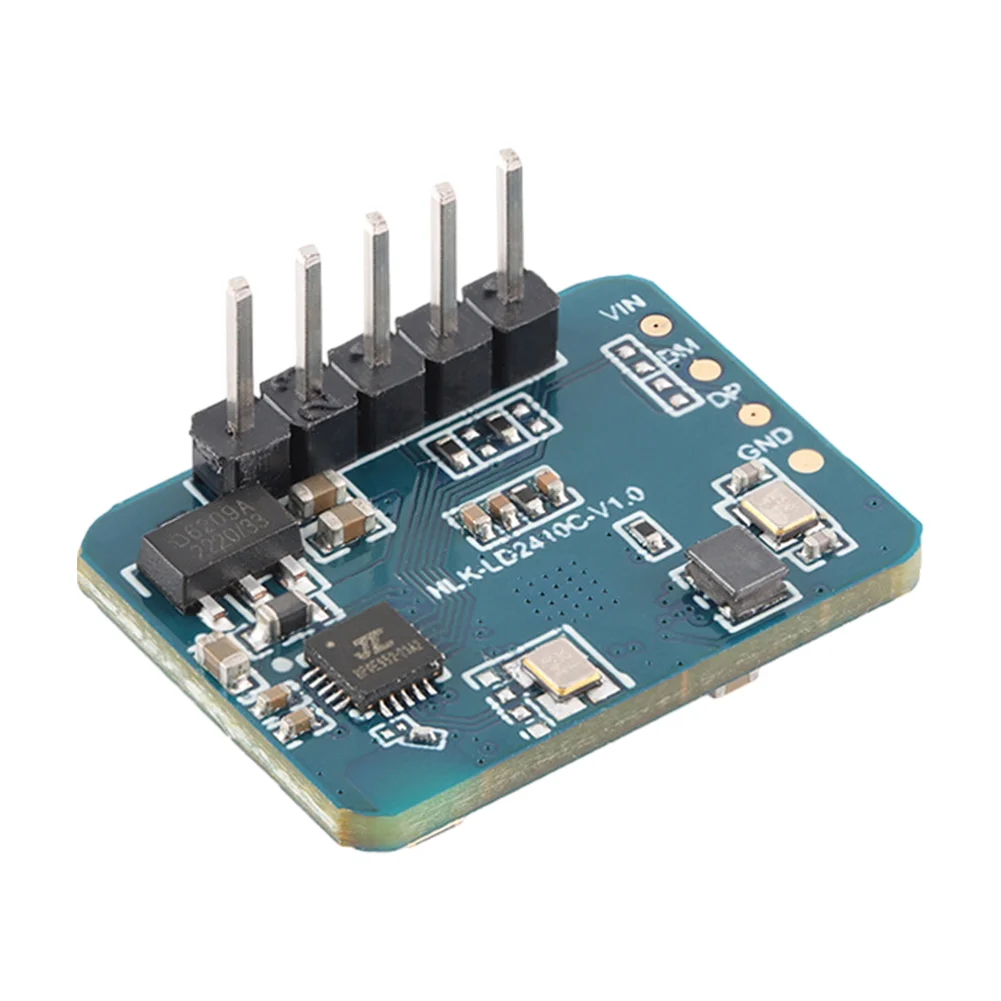

    HLK-LD2410C is a highly sensitive 24GHz human presence state sensing module developed by Hailingke Electronics. Its working principle is to use FMCW frequency modulated continuous wave to detect human targets in the set space, combined with radar signal processing and accurate human body sensing algorithms, to achieve highly sensitive perception of human presence status and recognize human bodies in the environment. Motion and stationary states, and auxiliary information such as distance to the target can be calculated.
    This product is mainly used in indoor scenes, sensing whether there is movement or micro movement of human bodies in the area, and outputting detection results in real-time. The farthest sensing distance can reach 6 meters, with a distance resolution of 0.75m. Provide visual configuration tools that can easily configure sensing distance range, sensing sensitivity at different intervals, and unmanned delay time to meet different specific application requirements.
    Supports GPIO and UART outputs, plug and play, and can be flexibly applied to different intelligent scenarios and terminal products.
    Features:
    Plug and play, easy to assemble
    The longest sensing distance can reach 5 meters
    Large detection angle, with a coverage range of ± 60 degrees
    Accurate identification within the interval, support for sensing range division, and shield interference outside the interval
    Multi level intelligent parameter adjustment to meet the changing needs of the scene
    Visual debugging and configuration tools
    Compact and minimalist, supporting multiple installation methods such as ceiling mounted and wall mounted
    24GHz ISM frequency band, compliant with FCC and CE spectrum regulations
    5~12V wide voltage power supply
    Ultimate Cost Performance Choice

    Note:
    Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
    Please allow 1-2cm measuring deviation due to manual measurement.



    Package Content:
    1 x LD2410C Human Presence Sensor
