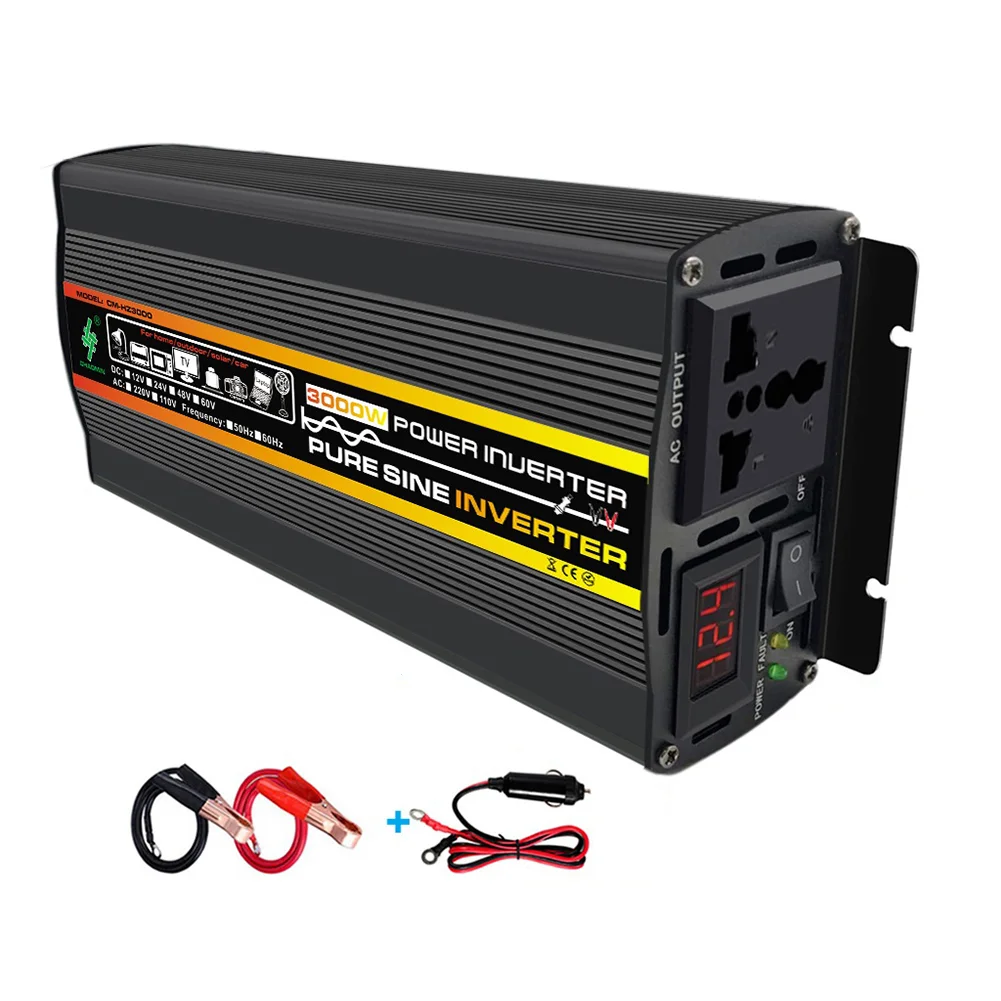

Car Power Inverter LED Voltage Screen Display Pure Sine Wave Inverter

Specification:
Model: HZ3000
Material: aluminum alloy+ABS
Color: black
Display: LED single digital display
Input voltage: DC 12V/24V/48V/60V optional
Output voltage: AC 110V/220V optional
Output frequency: 50Hz
Maximum power: 3000W
Rated power: 500W
Product size: about 21x10.3x6cm/8.27x4.06x2.36inch
Weight: 1100/1400/1700g
Maximum active surge rated power (less than 1s): 3000W
Maximum AC current per socket: 8.33 Amps
Output waveform: true/pure sine wave (<3% THD)
Efficiency: ≥ 90%
No load current (DC side)<0.6 A
Applicable scenario: motorhome, household appliances, etc

12V is generally for cars, 24V for trucks, 48V and 60V is generally for electric vehicles.
Available Range Of Rated Voltage Of Electrical Appliances: 210-230V, 110-130V
Safe Range Of Input Voltage:
12V: 9.8-15V
24V: 20-28V
48V: 44-53V
60V: 58-68V

8 Safety Protection Function:
Reverse polarity protection
Low input voltage protection
High input voltage protection
Over-current protection
Short circuit protection
Over temperature protection
Overload protection
Internal fuses

Battery Usage Time Cacalation:
1) The working time of inverter, it is decided by the battery power and load power.
2) Formula: Working time (hours)= Battery CapacityxBattery Voltagex0.8x0.9/Load Power
3) For example, the battery of 12V 60A is supplied to a 220V 100W bulb.
The working time is = 12(V)x60(AH)x0.8x0.9/100(W)=5.18(hours)

Warm Tips: It is recommended that the electrical appliances used with this product should be controlled below 500W.
Discharge coefficient of 0.8-battery, Conversion efficiency of 0.9-inverter

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Package Content:
1 x Inverter
2 x Battery clip
1 x Car lighter
1 x Instructions
