Specification:
Origin: Mainland China
Dimensions: 46.00x27.90x27.50mm/1.81x1.1x1.08inch
Material: Brass
Thread Type 1 (Outlet Valve Diameter 21mm)
CO2 Cylinder CGA320 Valve (USA, CAN, Brazil, Colombia, Philippines)
Thread Type 2 (Outlet Valve Diameter 22mm)
DIN477 / W21.8-14 / JIS m22-14 CO2 Cylinder Valve (KOR, JP, UK, Germany, France, Poland, Norway, Switzerland, Russia, Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore)
How to use:
1. Screw the adapter onto the commercial CO2 cylinder
2. Screw the empty soda gas bottle into the adapter
3. Open the valve of the large cylinder
4. After about 15-20 seconds, the cylinder is completely filled
5. Close the valve of the large cylinder
6. Open the exhaust screw to discharge the remaining gas
7. Check the charging connector-completed
When using, be sure to pay attention to the following points:
1. The seal is in the correct position. Therefore, when you receive the soda bottle inflation connector, make sure you use the correct seal on the correct side.
2. Make sure you put the soda bottle on the correct side. The CO2 bottle can only be installed on the round side. Therefore, you must put the soda bottle into the hexagonal side.
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.

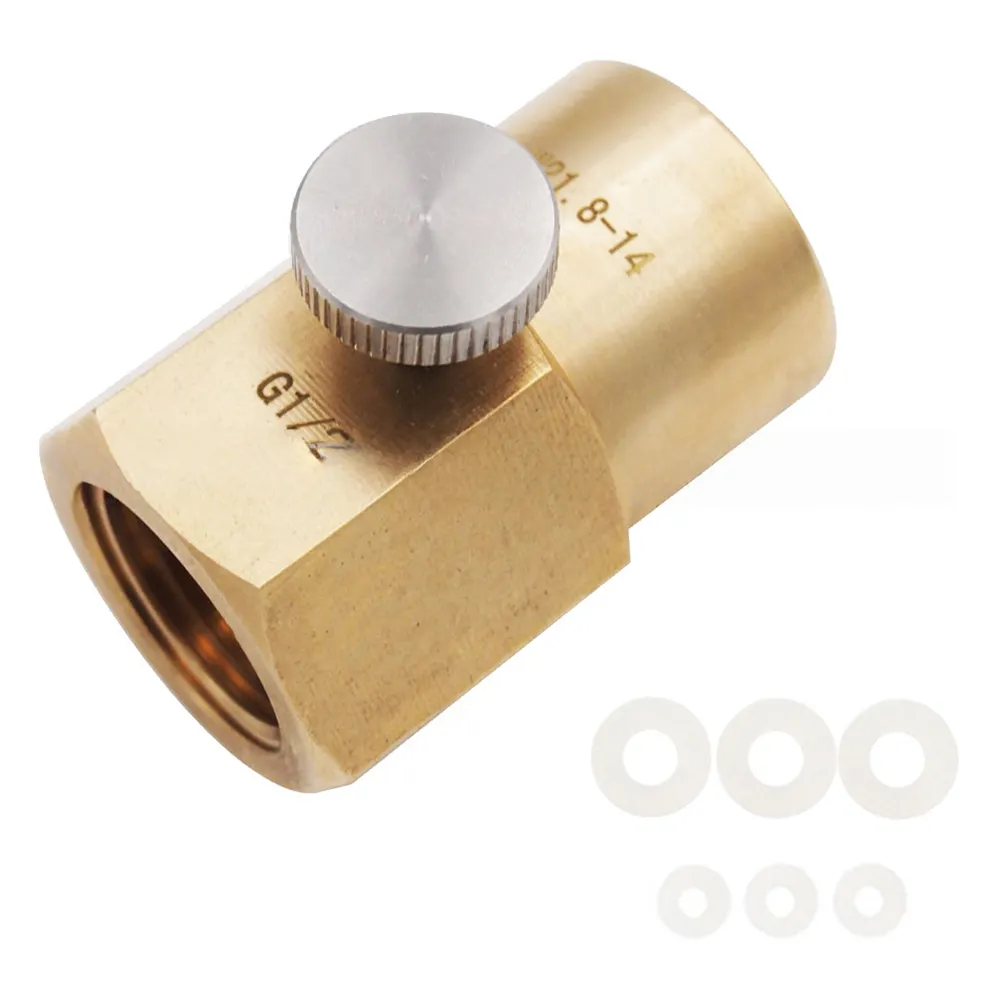

Package Content:1x Adapter
6x Sealing Ring
