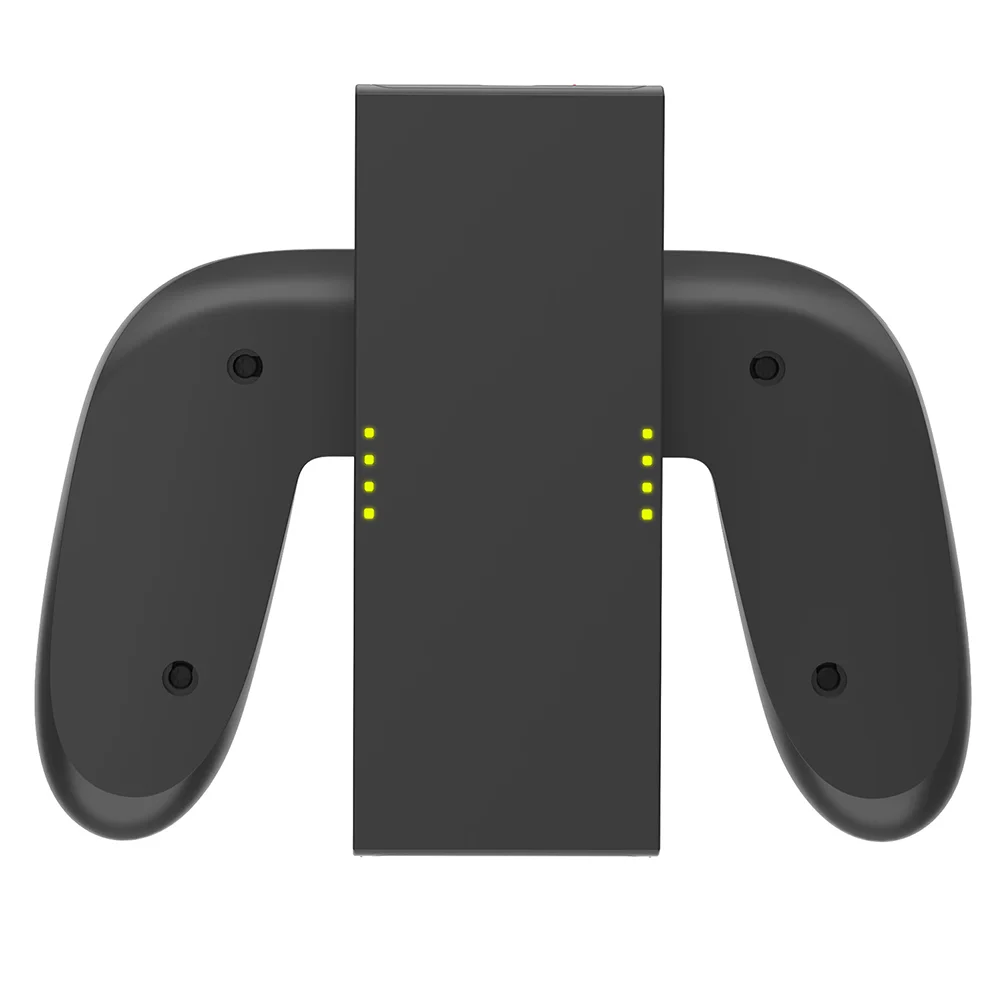

Specification:
Origin: Mainland China
Applicable models: for Nintendo Switch2 Joy-Con
Color: Black
Material: ABS
Rated input voltage: DC5V
Rated input current: 800mA
Input overvoltage protection threshold (total): DC6.7V
Output overcurrent protection threshold (total): 1000mA
Short circuit protection threshold (single charging port): 600mA
Charging current (single charging port): <400mA
Charging time: 2.5H
Packaging weight: 220g
Packaging size: 143.00x118.00x42.00mm/5.63x4.65x1.65inch
Operation Guide:
1. Use the Type-C data charging cable to connect the DC5V power supply to the Type-C charging port of this product, indicating that the charging dock is in standby mode. At this time, you can put the handle in for charging. If you use a data cable to connect the host or TV base, the handle can be charged and connected to the host in wired mode.
2. Put the Joy-con handle into the handle charging slot. The charging indicator light on the front of the product is always orange and turns off after it is fully charged.
3. This product has an input overvoltage protection function. When the input voltage exceeds the protection threshold, the product will automatically disconnect the input. When the input voltage returns to below the protection threshold voltage, this product automatically resumes normal operation.
4. This product has an output overcurrent protection function. When the total output current exceeds the threshold, the product will automatically disconnect the current output and the indicator light will go out. At this time, you need to remove the abnormally charged handle and then re-plug the Type-C charging cable to restart this product.
5. This product has a charging short-circuit protection function. When the current of the handle charging interface exceeds the short-circuit protection threshold, the product will automatically disconnect the current output of the corresponding handle charging slot, and the corresponding indicator light will go out. At this time, you need to remove the abnormally charging handle, and then re-plug the Type-C charging cable to restart this product.
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
Package Content:1 x Charging Dock
1 x Data Cable
1 x Instruction Manual
