DC5-12V Battery Tester mAh/mWh 18650 Lithium Battery Capacity Test Module

2 sold

$14.78

Qty 1000 in stock

Product Description

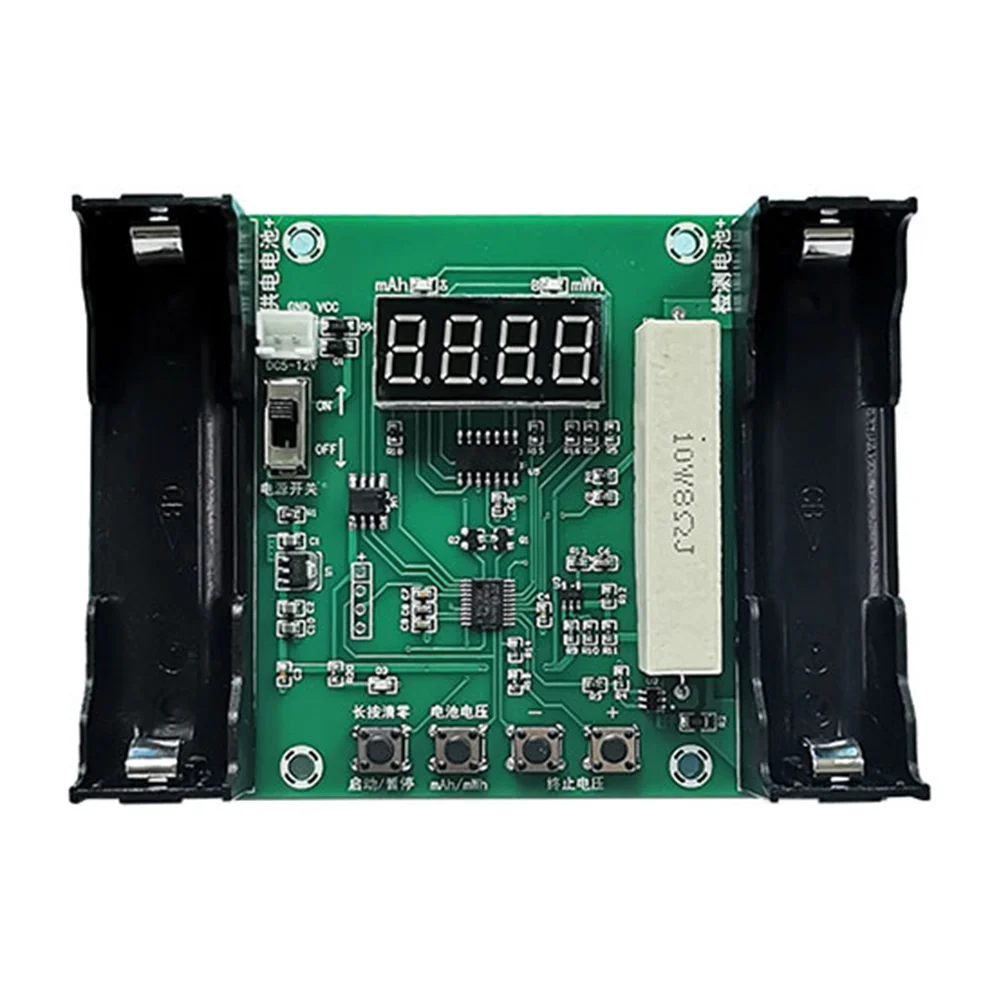

XH-M23 DC5-12V Load Battery Tester mAh/mWh Digital Display 18650 Lithium Battery Capacity Discharge Analyzer Test Meter Module
Specification:
Product name: 18650 lithium battery capacity tester
Product model: XH-M23
Display accuracy: 0.1
Halo measurement accuracy: 1mAh
Power supply voltage: DC5-12V/18650
Battery standby current: 5mA
Discharge current: about 500mA
Load power: 10W 8Q
Appearance size: 111x97x25mm/4.37x3.82x0.98in
Installation size: 3mm/0.12in

How to use:
1: Put in the power supply battery to test the battery, turn on the power switch and display 4.1u, that is, the voltage of the test battery is 4.1V
2: Set termination voltage:Press + or - to display the termination voltage, and press + or - to set the termination voltage.(default: 3V)
3: Press the start button to start discharging (discharge current is about 500mA). At this time, the LED displays to detect the remaining battery voltage of 4V
4: Press the battery voltage switch key to mAh , display the discharged 20mAh
5: Press the second button to display 77mWH discharge in mW
6: When the discharge is completed, the display has been discharged 1900mAh, the red indicator light above the reset key is flashing state

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2mm measuring deviation due to manual measurement.
Package Content:
1 X Lithium Battery Capacity Tester
