Specification:
Origin: Mainland China
Type: Voltage Regulator
Condition: New
Application: Speaker
Supply Voltage: 12 V
Model Number: Mini HIFI Digital Amplifier Module
Class T architecture.
0.04% THD + N @ 9W, 4Ω.
0.18% IHF-1M @ 1W, 4Ω.
6W @ 8Ω, 0.1% THD + N.
11W @ 4Ω, 0.1% THD + N.
High power:
10W @8Ω, 10% THD + N.
15W @4Ω, 10% THD + N.
High efficiency:
88% @ 10W, 8Ω.
81% @ 15W, 4Ω.
Dynamic range: 102 dB.
Mute and sleep inputs.
Over-current protection, Over temperature protection.
Dimensions: 91 x 53 x 15mm/3.1 x 2.1 x 0.6inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

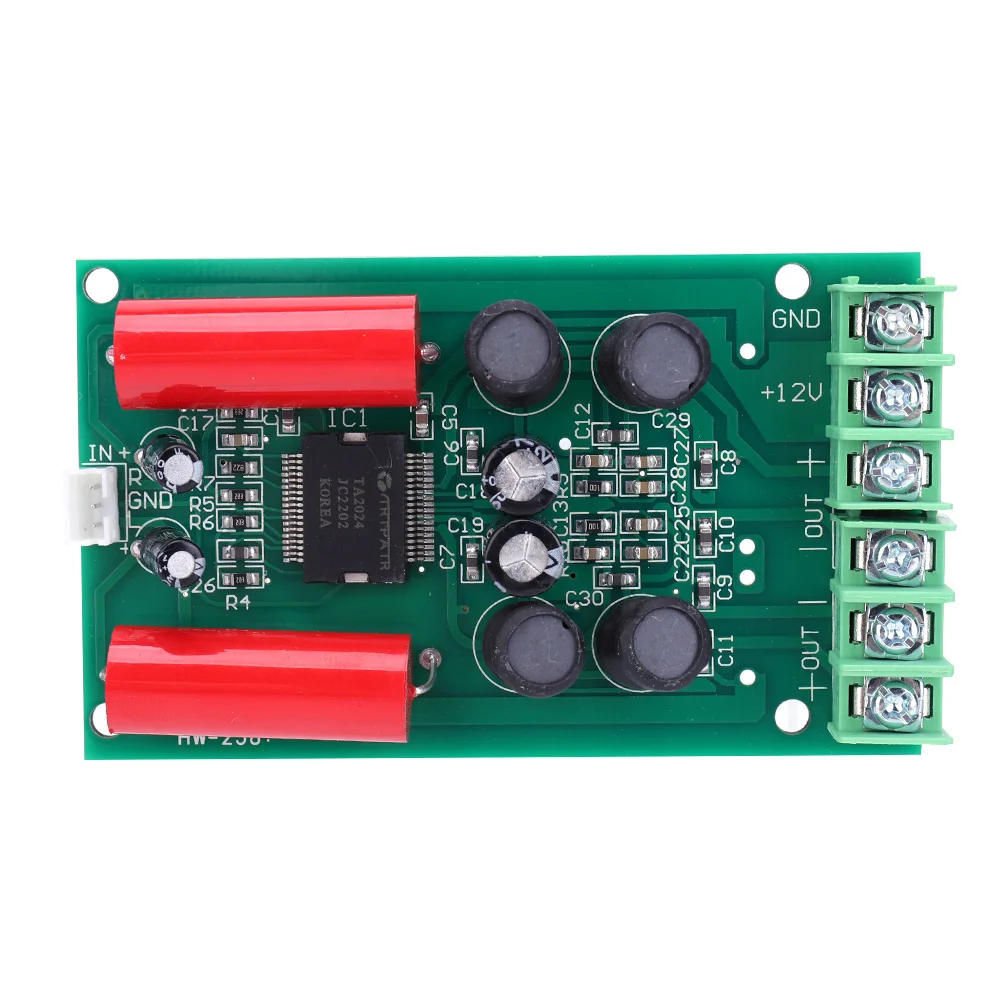

Package Content:1 x Digital Power Amplifier Board
