Specification:
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display Type: Digital Only
Voltage range: AC 30-260V/45-65Hz, ±(2.0%+2)
Leakage voltage range: 0~99V/45~65Hz, ±(2.0%+2)
Trip time test: 10-1000mS, ±(2.0%+4)
GFCI test: >5mA (only for HT97B)
RCD test: >30mA (only for HT97D/HT97E)
Voltage measurement (48V-250V/45-65Hz): Yes
LCD display: Yes
Backlight: Yes
Socket connection detection:
1, 10-1000mS, ±(2.0%+4)
2, Open circuit
3, Open neutral
4, Open on site
5, Live and ground reversed
6, Live and neutral reversed
7, Live and ground reversed, missing ground
Power supply: 2x1.5V AAA battery (not included in the product)
Safety level EN61010-1, -2-030; EN61326-1, CAT-II 300V
Casing material: ABS
Product size: about 75.00x67.00x65.00mm
Product size: 2.95x2.64x2.56inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x Socket Tester
1 x Instruction Manual

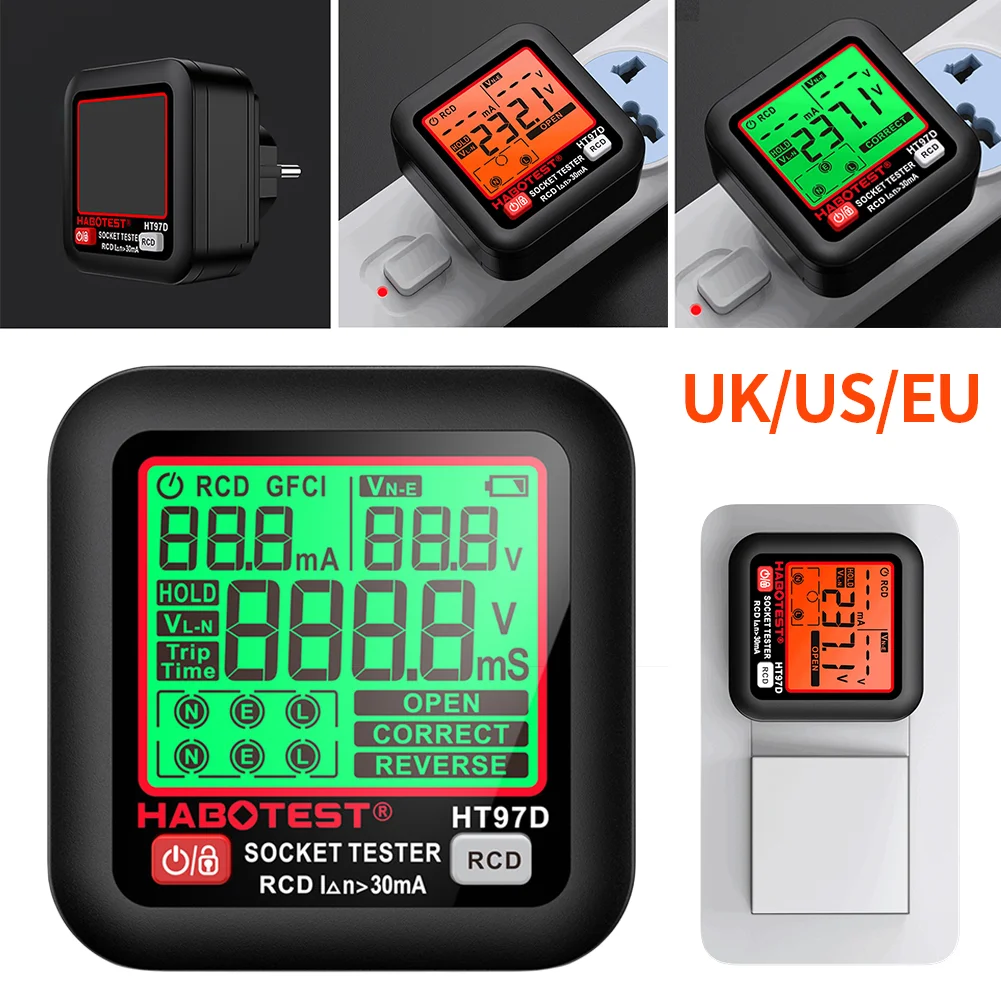

Selling point contentDigital Socket Tester Large Display Smart Voltage Detector RCD GFCI Voltage Tester Leakage Protection Intelligent Leakage Testing
Feature:
1. Easy Operation: Simply plug the digital socket tester into any powered three-prong outlet to easily determine the socket wiring condition and AC voltage. The device provides clear information on the screen, making it straightforward to assess electrical safety and functionality.
2. Accurate Wiring Sequence Detection : The smart voltage detector features an orange backlight that illuminates to indicate incorrect wiring sequence when inserted into a standard three-prong power outlet. Refer to the display to identify specific wiring errors, enhancing your electrical safety checks.
3. RCD/GFCI Testing Capability: Ensure your safety by testing residual current devices (RCDs) with the rcd gfci voltage tester. By pressing the RCD button for more than two seconds, the device simulates a fault condition to check if the RCD trips, indicating proper functionality or potential faults in your electrical system.
4. Data Lock and Auto-Shutoff : After inserting the socket detector, data is automatically locked in three seconds, allowing for easy review. The unlock button releases the data for further inspection. Additionally, the device automatically shuts off after five minutes of inactivity, saving battery life and ensuring efficiency.
5. High-Visibility and Portable Design : The outlet checker boasts a high-definition backlit display screen, providing clear and understandable test results even in dimly lit environments. Its compact and portable design makes it an ideal tool for checking the safety of socket wiring in homes, offices, shopping malls, and other locations. Safety and quality are assured with a rated safety level of CAT II 300V, making it a reliable accessory for any electrical safety toolkit.
