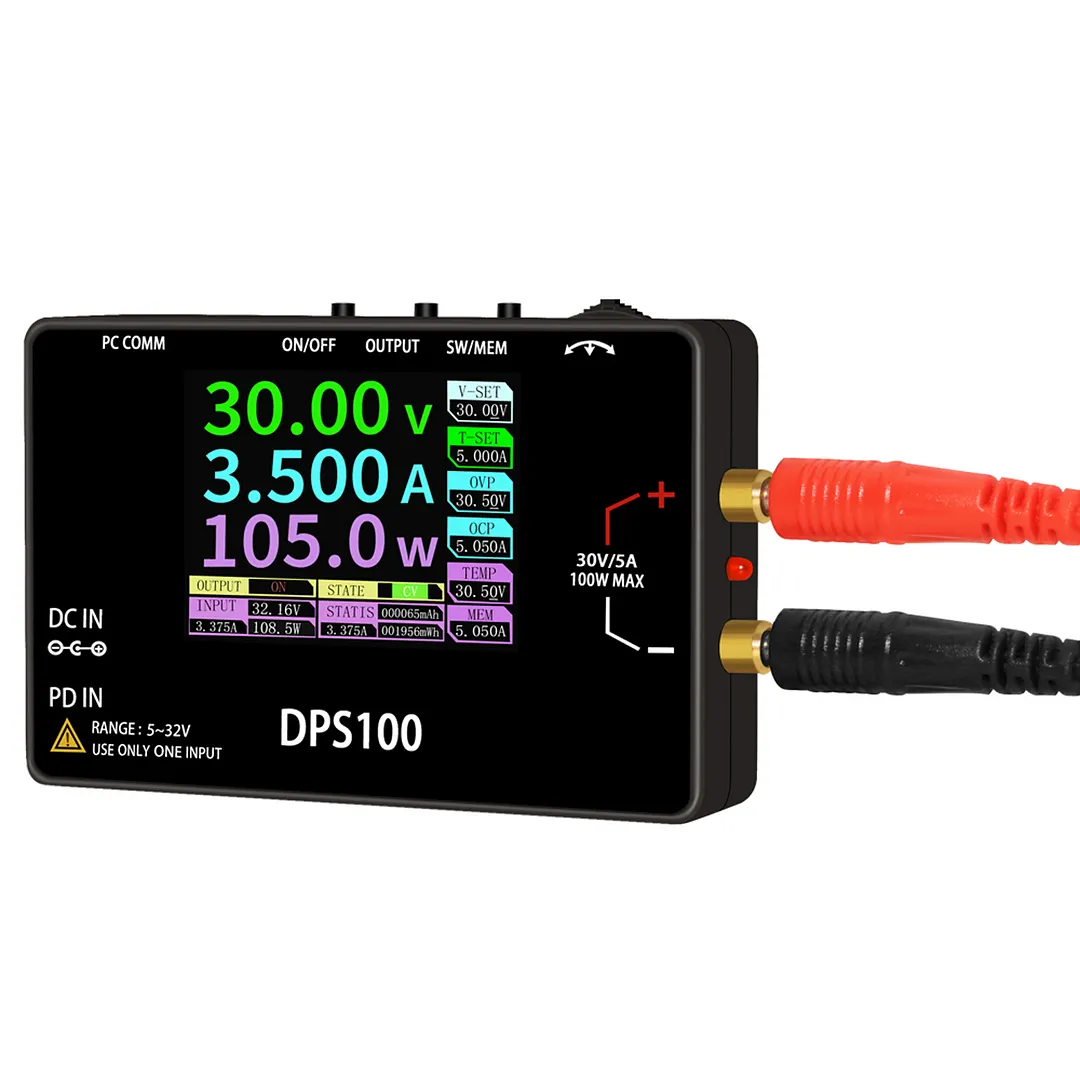

Specification:
Origin: Mainland China
Measurement Resolution:
Input Voltage: 10mV
Input Current: 1mA
Output Voltage: 10mV
Output Current: 1mA
Measurement Accuracy:
Input Voltage: ≤0.2% ±10mV
Input Current: ≤0.1% ±5mA
Output Voltage: ≤0.1% ±10mV
Output Current: ≤0.1% ±5mA
Parameters:
Display: 2.4-inch color screen
Input Voltage: DC 5.0-32V, 30mA-5A
Type-C Interface Supported Protocols: PD 3.0/2.0, BC 1.2, etc.
Output Interface: 4.0mm banana connector
Output Range: Voltage: 0-30V / Current: 0-5A / Power: 100W (Max)
Setting Resolution: Voltage: 10mV / Current: 1mA
Accuracy: Set Value: Voltage: ≤0.1%±5mV / Current: ≤0.1%±3mA
Load Regulation: Output Voltage: ≤0.05%±5mV / Output Current: ≤0.1%±3mA
Power Regulation: Voltage: ≤0.05%±5mV / Current: ≤0.1%±3mA
Ripple and Noise: Voltage: ≤2mVrms, 10mVp-p / Current: ≤1mArms, 3mAp-p
Output Temperature Coefficient: Voltage: ≤200ppm / Current: ≤200ppm
Full Load Efficiency: ≤97% @100W (30V, 3.334A)
Operating Environment: 0°C-40°C, 0-75% RH
Casing Material: ABS
Size: about 110.00 x 70.00 x 20.00 mm / 4.33 x 2.76 x 0.79 inches
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
Package Content:1 x Main Unit
1 x Test Clip
1 x English Instruction Manual
