Specification:

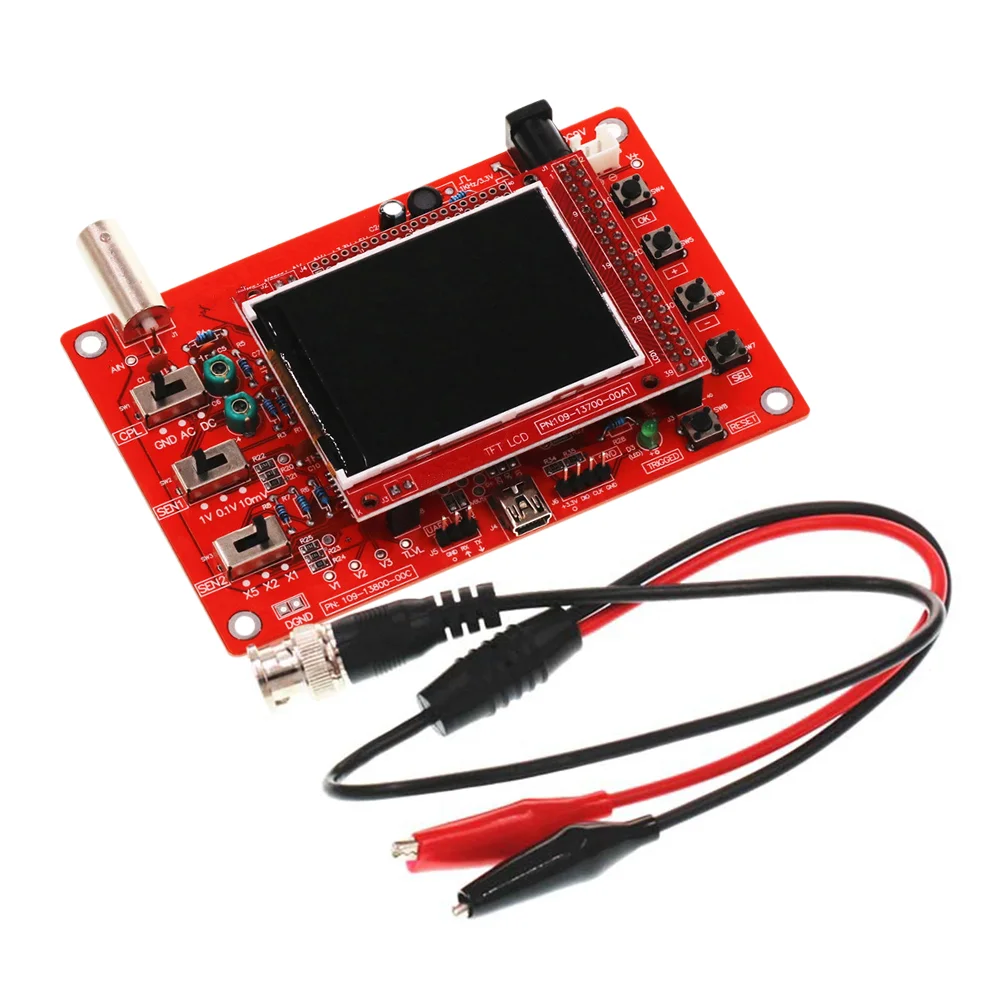

DSO138 kit
Maximum real-time sampling rate: 1Msps
Precision: 12Bit
Sampling buffer depth: 1024 bytes
Analog frequency band width: 0-200KHz
Vertical sensitivity: 10mV/Div - 5V/Div (in steps of 1-2-5)
Adjustable vertical displacement with indication
Input impedance: 1M Ω
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling method: DC/AC/GND
Horizontal time base range: 10 μ S/Div - 50s/Div (progressive in a 1-2-5 manner)
Power supply voltage: DC 9V
PCB size: 117 * 76mm/4.6 * 3in
Screen size: 52 * 40mm/2 * 1.57in
Packaging size: 18 * 12.5 * 3cm/7.09 * 4.92 * 1.18in
Packaging weight: 119g
Equipped with automatic, conventional, and single trigger methods, convenient for capturing instantaneous waveforms
Triggered by rising or falling edges
Adjustable trigger level position with indication
Observable waveform before triggering (negative delay)
Waveform display can be frozen at any time (HOLD function)
Equipped with a 1KHz/3.3V square wave test signal source
Shell:
Material: Acrylic
Product weight: 156g
Packaging size: 160 * 100 * 40mm/6.3 * 3.94 * 1.57in
Packaging weight: 192g
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x DSO138 DIY
Shell
1 x DSO138 DIY Digital
Oscilloscope Kit
1 x
Probe
