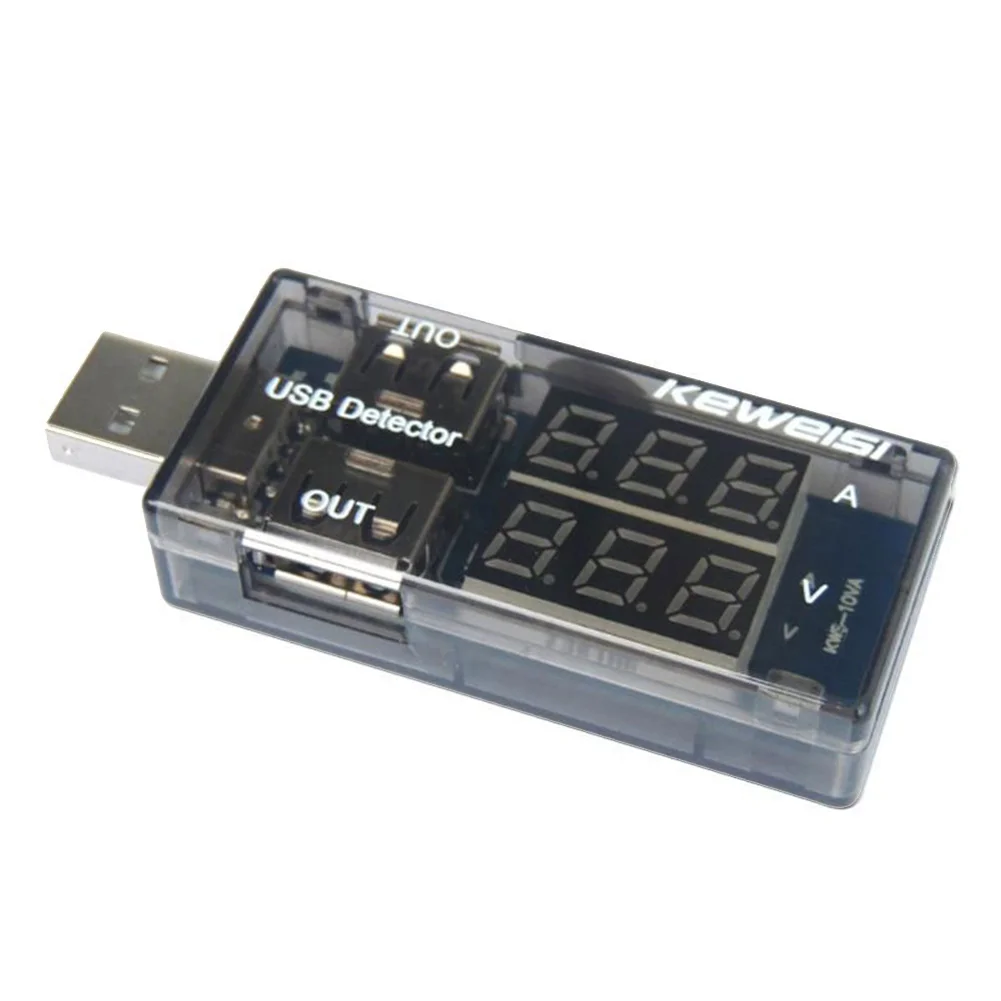

Dual USB Current Voltage Tester Detector Meter Battery Digital Voltmeter Ammeter Capacity Monitor Detection Analyzer
Feature:
The tester can easily measure the output voltage of USB ports and devices.
Compact size, no need for power supply, and other auxiliary equipment, plug and play.
USB charger can also detect target output voltage and current.
For factories, laboratories and users.
The tester uses a new generation of power quadruple half double integral cycle conversion IC with precision band gap reference, accurate range, high accuracy, stable and reliable performance, strong anti-interference capability, high temperature resistance can be used to measure the power consumption of USB powered or a certain interface, cell phone charger, U disk and other products.
Can be used to measure no-load USB-powered devices, voltage loads, USB terminal equipment working voltage and current.
Current and voltage cycle, easy to use and practical.
Small and portable, no need for additional power supply.
Specification:
Material: plastic + electronic components
Size: 60.5*28*15mm/2.38*1.1*0.59in
Measuring range: 3.5-7V
Input voltage: 3.5-7V
Output voltage: 3.5-7V
Ambient temperature: 0-60
Technical specifications.
Operating range: current (0-2.5A) can detect cell phone charger voltage in line with DC5V
Operating range: U = 3-7.5VI = 0-2.5A
Resolution: voltage 10mV current 1mA
Error: Voltage <± 1% Current <± 2%
Full scale voltage drop: (when measuring current) 200mV
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:
1 X Voltage Tester
