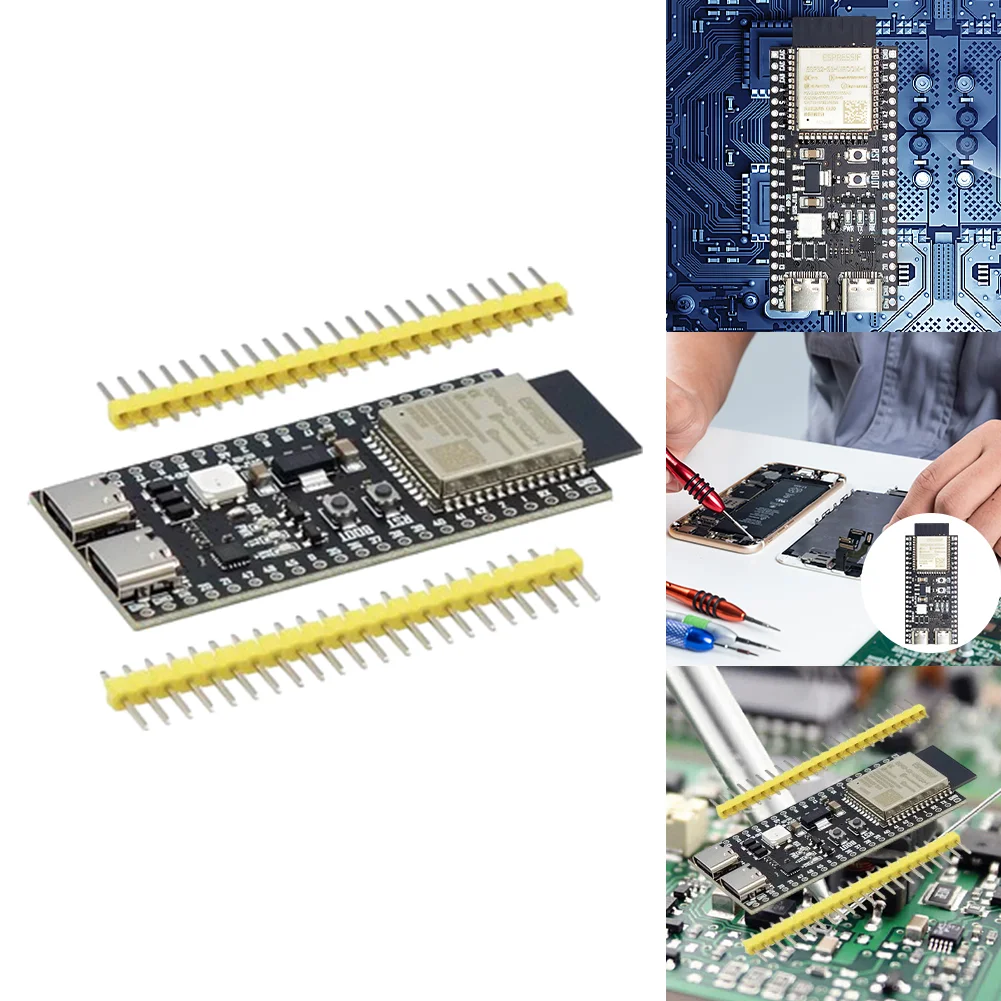

ESP32/ ESP32-S3/ESP32-C3 Development Board ESP32-C3-DevKitM-1 ESP32-S3-DevKitC-1

Specification:
Origin: Mainland China
Type: Module
Condition: New
ESP32-S3 N8R2/N16R8:
About ESP32-S3 Hardware Resources
1. ESP32-S3 is a low-power MCU system-on-chip (SoC) with integrated 2.4 GHz Wi-Fi and low-power Bluetooth-Compatible LE dual-mode wireless communication.
2. ESP32-S3 has a complete Wi-Fi subsystem and low-power Bluetooth-Compatible subsystem, with industry-leading low-power performance and RF performance.
3. Supporting a variety of low-power operating states, it can meet the power requirements of various application scenarios.
4. ESP32-S3 chip provides rich peripheral interfaces and has a variety of unique hardware security mechanisms.
5. The perfect security mechanism enables the chip to meet the strict security requirements.
6. Up to 45 GPIOs
7. 2*12-bit ADC (up to 20 channels)
8. Communication interfaces :
2 I2C interfaces
2 I2S interfaces
4 SPI interface
3 UART interface
1 USB OTG interface
Operating voltage: 3~3.6V
Size: 57x28x5mm/2.24x1.1x0.2inch

YD-ESP32C3:
YD-ESP32-C3 is a general-purpose Wi-Fi and low-power Bluetooth-Compatible module with small size and rich peripheral interfaces, which can be used in smart home, industrial automation, medical electronics and other collaterals.
Built-in ESP32-C3FN4 chip, RISC-V 32-bit single-core microprocessor with 160 MHz frequency
384 KB ROM
400 KB SRAM (16 KB in cache)
8 KB RTC SRAM
Small form factor module supporting 2.4 GHz WiFi (802.11 b/g/n) and Bluetooth-Compatible 5
Internal chip overlay 4 MB flash
15 GPIOs
Size: 44x29x5mm/1.73x1.14x0.2inch
Power consumption Bluetooth-Compatible subsystem with industry-leading low-power performance and RF performance.
3. Support a variety of low-power operating state, can meet the power requirements of various application scenarios.
4. ESP32-S3 chip provides rich peripheral interfaces and has a variety of unique hardware security mechanisms.
5. The perfect security mechanism enables the chip to meet the strict security requirements.
6. Up to 45 GPIOs
7. 2*12-bit ADC (up to 20 channels)
8. Communication interfaces :
2 I2C interfaces
2 I2S interfaces
4 SPI interface
3 UART interface
1 USB OTG interface
Operating voltage: 3~3.6V

YD-ESP32C3:
YD-ESP32-C3 is a general-purpose Wi-Fi and low-power Bluetooth-Compatible module with small size and rich peripheral interfaces, which can be used in smart home, industrial automation, medical electronics, and other areas.
Built-in ESP32-C3FN4 chip, RISC-V 32-bit single-core microprocessor with 160 MHz frequency
384 KB ROM
400 KB SRAM (16 KB in cache)
8 KB RTC SRAM
Small form factor module supporting 2.4 GHz WiFi (802.11 b/g/n) and Bluetooth-Compatible 5
Internal chip overlay 4 MB flash
15 GPIOs

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Package Content:
1 x Development Board
