Specification:
Display Type: Digital display
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display: 240x320 color screen
Backlight: Continuously on
Battery: AA battery*3 (not included)
Operating current: Approx. 65mA
Usage time: More than 10 hours
Usage range: 0°C to +40°C <75% relative humidity
Observation area: 49.0mm x 36.7mm
Input resistance: Approx. 10MΩ
Auto shutdown: 15 minutes or disabled
Sleep current: Approx. 35uA
Storage capacity: 100*data. 10* waveforms
Storage: -10°C~+60°C<90% relative humidity
Oscilloscope features:
Analog bandwidth: 1MHZ
Channel: 1
Scan mode: Auto/Normal/Single
Vertical sensitivity range: 300mV~100V per grid
Vertical amplitude accuracy: ±(5%+0.2div)
Automatic configuration: Automatically set time base and vertical amplitude
Maximum real-time sampling rate: 2.5Msps
Input resistance: about 10MΩ
Time base range: 2.5us~10s per grid
Time base accuracy: ±(0.01%+0.1div)
Trigger edge selection: rising/falling edge
Automatic measurement function: Vp-p, Vav g, Vrms, HZ
Multimeter features:
DC voltage: 400mV-600V
DC current: 4A~10A
Resistance: 400.0Ω~40.00MΩ
Frequency: 5Hz~5MHz
Diode test: voltage is about 1.5V
AC voltage: 400mV~600V
AC current: 4A~10A
Capacitance: 51.2nF~100uF
Duty cycle: 0%~100%
Continuity test: resistance <50Ω, beep
Casing material: ABS
Product size: about 157.00x77.00x25.50mm
Product size: 6.18x3.03x1inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

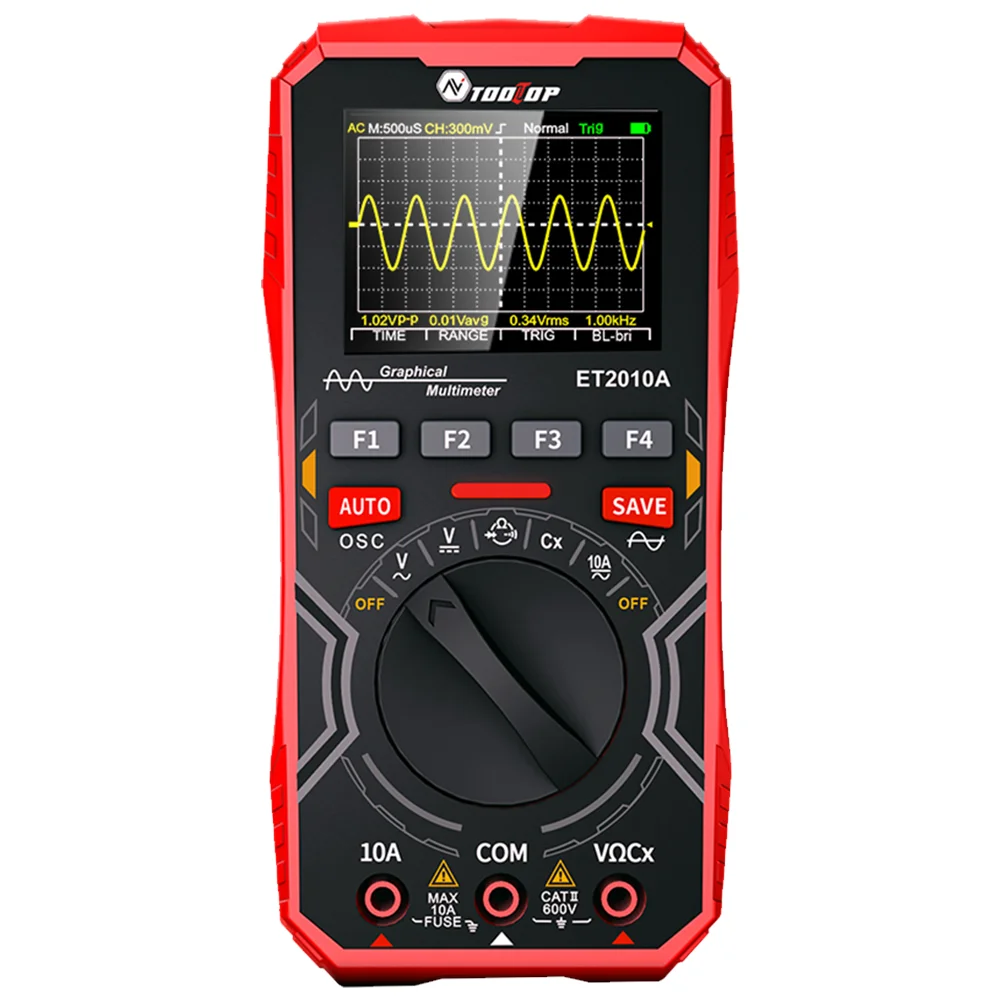

Package Content:1 X Oscilloscope Multimeter
1 X One Pair Of Test Leads
1 X English Manual
