Specification:
Ultra-Precision Resolution: 1μm, FE/NFE coating measurement, automotive paint 0-2000μm
Measurement Range: 0-2000μm
Measurement Accuracy: ±(3% + 1μm)
Power Supply: 2 x 1.5V AAA batteries (not included, user-supplied)
Operating Temperature: -10°C to 50°C
Housing Material: ABS
Product size: Approx. 125.00 x 50.00 x 25.00 mm
Product size: Approx. 4.92 x 1.97 x 0.98 inches
Country of Origin: China
Description:

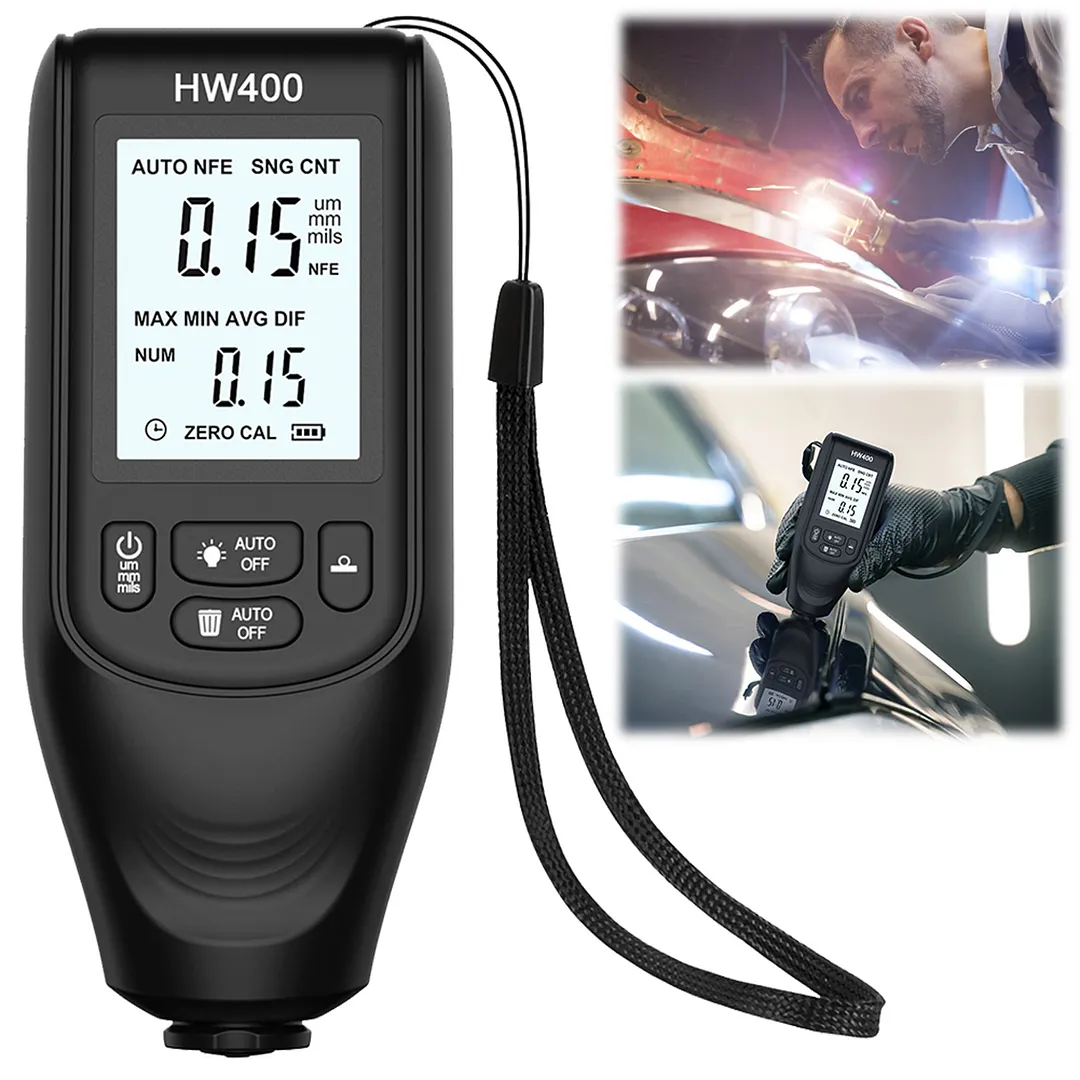

The thickness gauge measures the thickness of metal coatings and plating, such as paint/enamel/chrome on steel, and paint and anodized coatings on aluminum/copper. It automatically detects substrate properties.
This instrument provides non-destructive measurement of coating and paint thickness. It is essential equipment for material surface treatment, widely used in manufacturing, metal processing, chemical industries, and commercial inspection. It operates stably in laboratories, workshops, and outdoor environments.
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
Package Content:1 x Thickness Gauge
1 x Instruction Manual (6-language version)
1 x Calibration Plate Set
