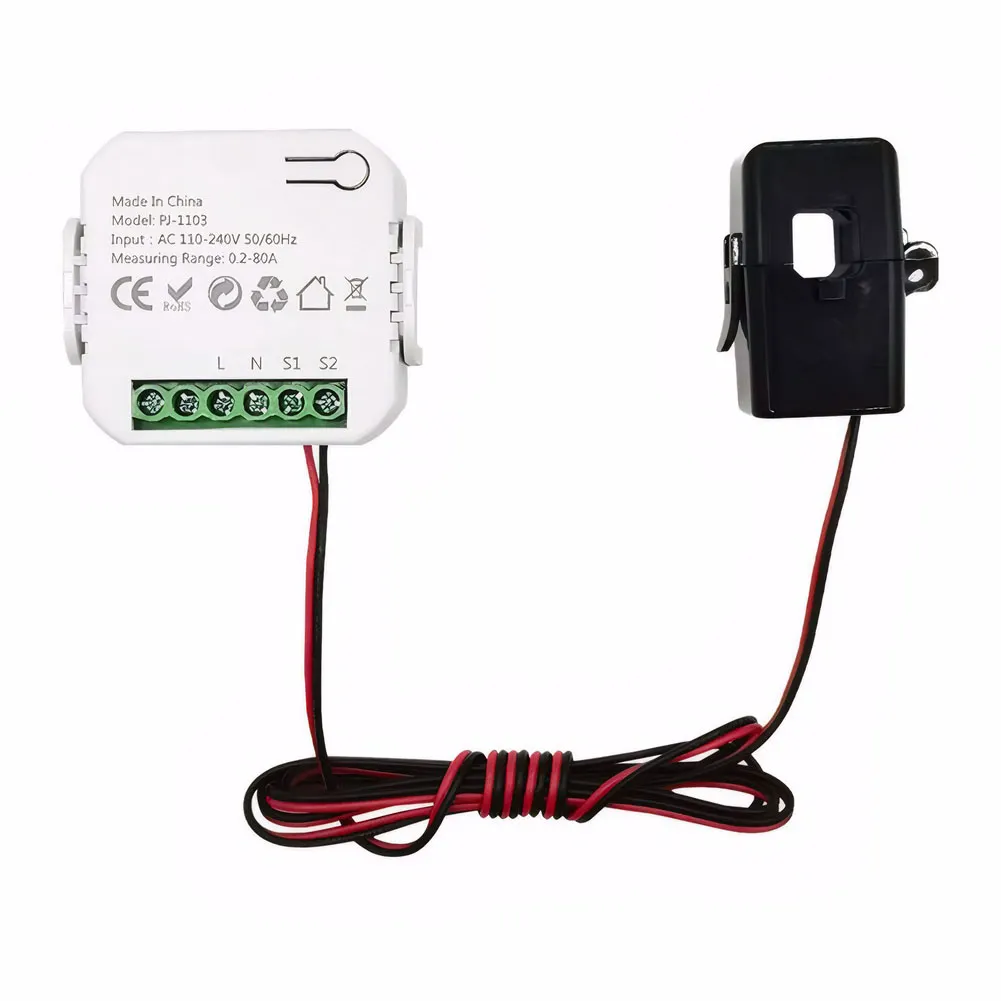

Specification:
Origin: Mainland China
Product size: 46.00x46.00x18.00mm/1.79x1.79x0.7inch
Rated voltage: 100-240V AC 50/60Hz
Measurable current range: 0.2A - 80A
Using WiFi Frequency: 2.4GHZ
Ambient temperature range: -10℃~ 55℃
The application monitors energy consumption KWh in real time. Voltage, current and power, and can also monitor the working status of the device
Tips: This device does not work with Home Assistant.
The minimum current displayed by the APP is 0.1A, and it is impossible to measure devices with too low power.
It is impossible to have both neutral and live wires in the clip.
The calculation formula for AC power is: P = UI cos (cos ≤1), which indicates the power factor of the circuit. Only resistive loads, such as incandescent lamps, dryers, heaters, electric water heaters, etc., have a power factor of 1.
The measuring device must have a neutral wire. Otherwise it cannot measure the voltage, current and power of the device.
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
Package Content:1 x WiFi Digital Smart Meters
