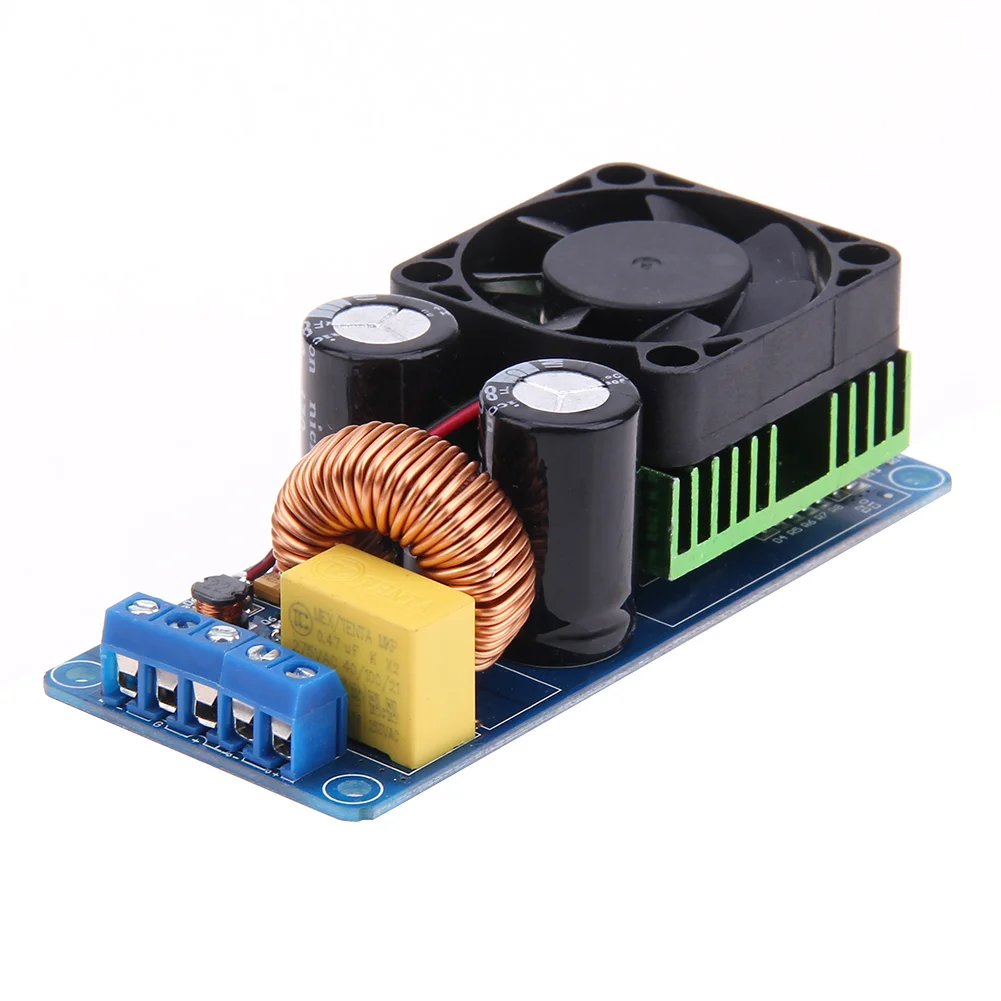

IRS2092S 500W Mono Channel Digital Amplifier Class D HIFI Power Amp Board

20 sold

$25.99 $43.32

Qty 1000 in stock

Product Description

Specifications:
1. Power supply: dual DC power supply ± 58-± 70V
2. The rated output power: 500W (± 65V power supply, 4 ohm load, distortion 10%)
3. Efficiency:> = 90%
4. SNR: 90dB
5. The total harmonic distortion:
380W (± 65 power 4 ohm speaker, distortion <0.1%)
280W (± 65 power 8 ohm speaker, distortion <0.1%)
6. Frequency range: 20Hz-20KHz
7. Speaker: 4-8ohm
8. Voltage Magnification: 36 times
9. Input sensitivity 1.5V (RMS)
10. Output short circuit protection: Yes
11. That output DC bias protection speaker protection: Yes
12. Over-temperature protection: Yes, radiator FET temperature higher than 100 ° C, turn off the output!
13. Product Size: approx. 100*50*30mm/3.93*1.96*1.18\'\'
14. Net weight: approx.100g

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.

Package Content:
1 x Digital Amplifier Module
