Specification:
Origin: Mainland China
Certification: CE
DIY Supplies: ELECTRICAL
Display Type: Digital Only
Measurement parameters:
1. The measured working frequencies are 100Hz, 1KHz, and 10kHz
2. The measured working voltages are 0.3V, 1.0V, and 1.0V is commonly used
3. The components supported for measurement are: resistance, capacitance, inductance, and diode.
Range:
Capacitance: 1pF-10mF
Inductance: 1uH-1H
Resistance: 1mΩ-10MΩ
Casing material: ABS+metal
Product size: about 170.00x40.00x20.00mm
Product size: 6.69x1.57x0.79inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x LCR Tweezers
1 x Storage Box

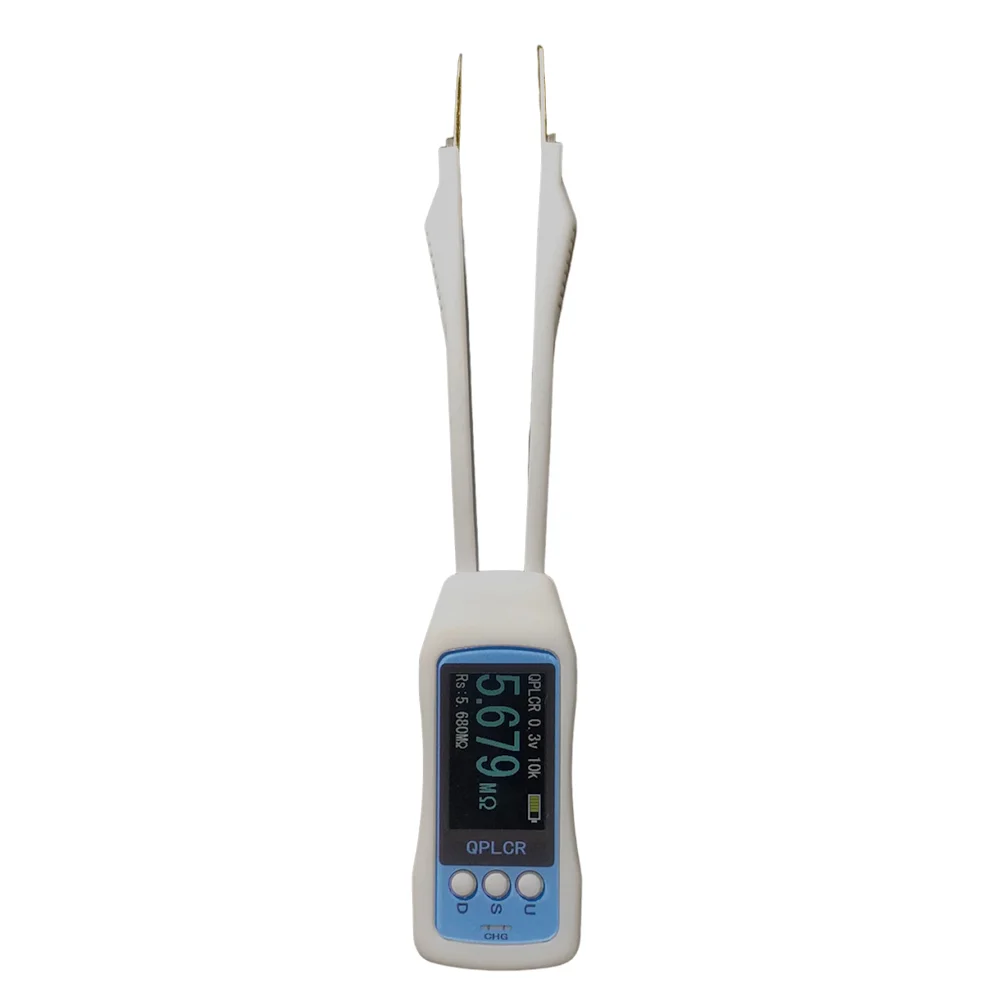

Selling point contentLCR Bridge Meter Digital Display Handheld LCR Meter Tweezer High Precision Smart SMD Tweezers Capacitance Inductance Resistance Tester
Feature:
1. High-Definition Display for Clear Readings: The lcr bridge meter features a 1.14-inch IPS TFT display with full viewing angles, providing clear and detailed readings for all your measurements.
2. Long-Lasting Battery Life: Equipped with a built-in 300mAh lithium battery, the lcr meter tweezer offers approximately 6 hours of standby time, ensuring you have enough power for extended use.
3. Convenient Charging with Type-C Interface: The smart smd tweezers come with a Type-C interface for external 5V power supply. The built-in charging circuit indicates red while charging and turns green when fully charged, making it easy to know the charging status.
4. Precision Measurement with High-Quality Tweezers: The tweezer tester uses expensive brass tweezer tips to ensure accurate measurements. The four-wire Kelvin test method further enhances measurement accuracy, making it a reliable tool for your needs.
5. User-Friendly Interface with Dual Language Support: The handheld capacitance inductance resistance tester displays both Chinese and English on the interface, with large-font measurement values for easy reading, making it accessible for users worldwide.
